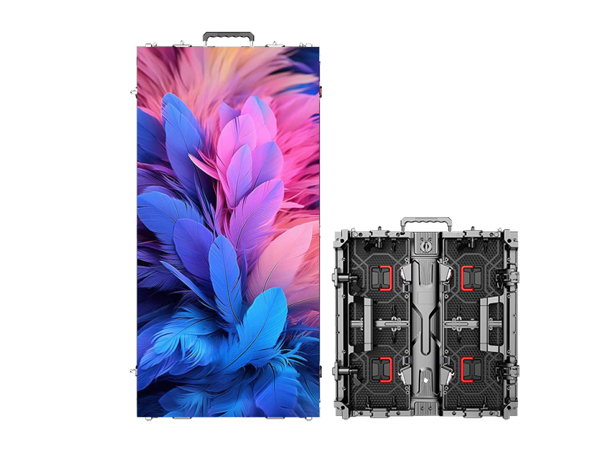

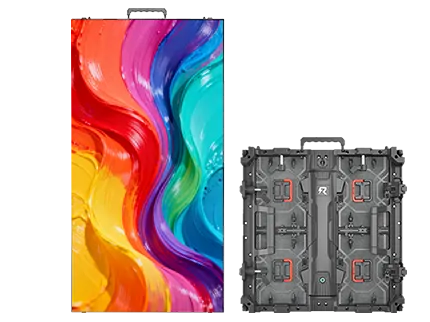

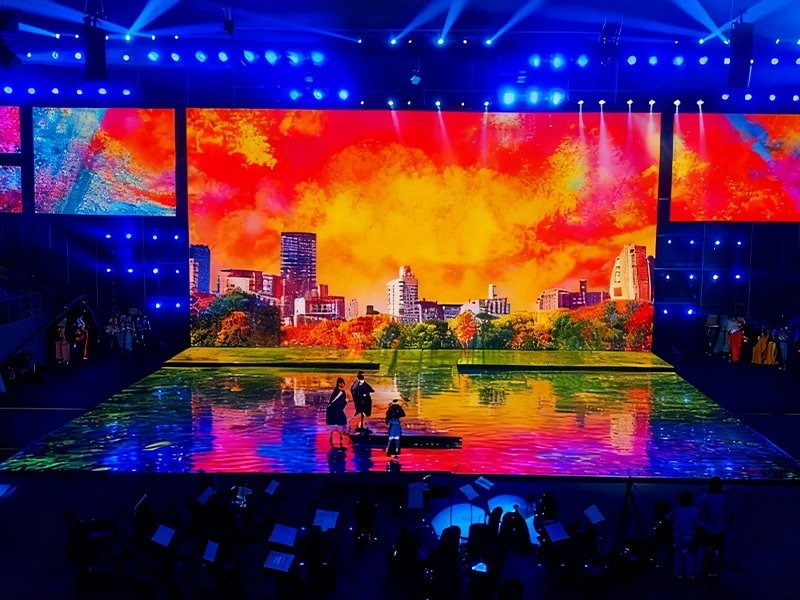

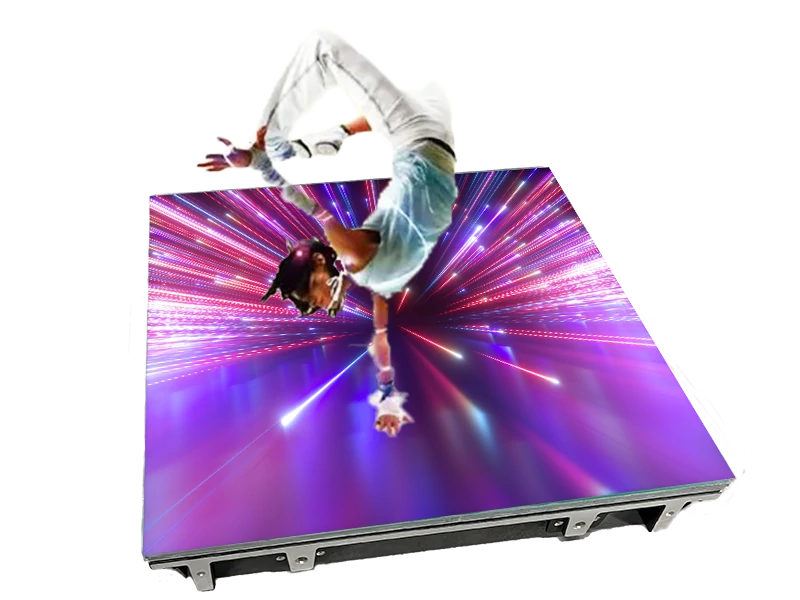

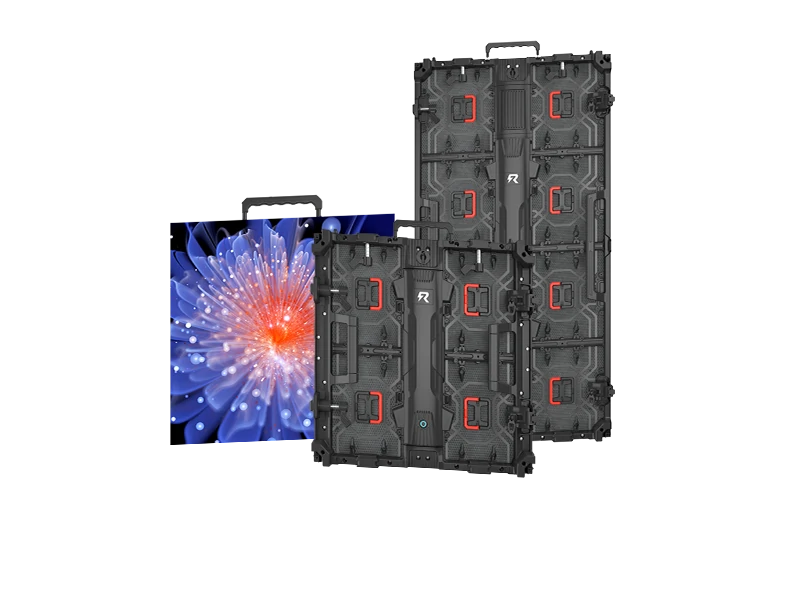

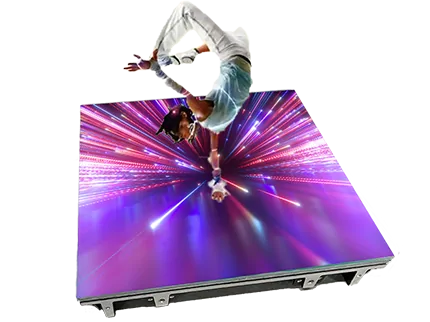

DuoFlux Rental LED display lets you stack panels of different sizes vertically. It’s perfect for both stage screens and floor tile displays—great for malls, live events, retail spaces, entertainment venues, and corporate meetings.

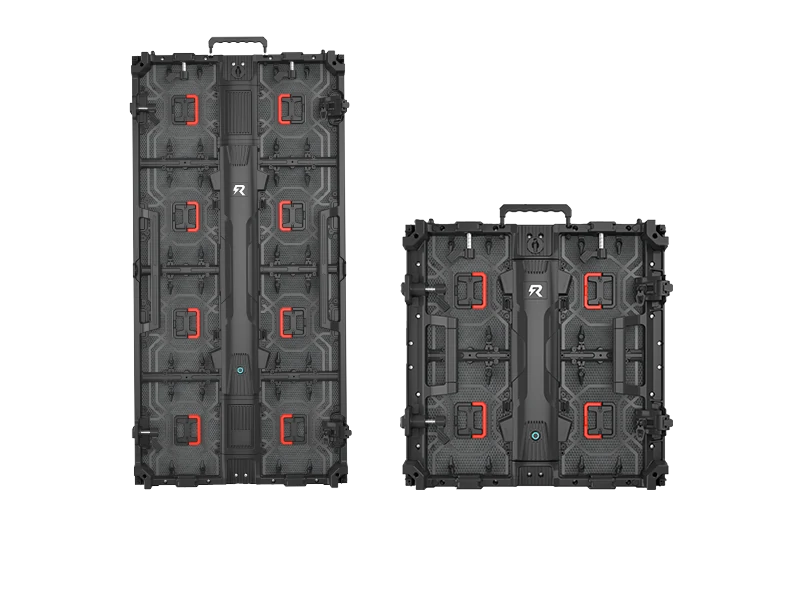

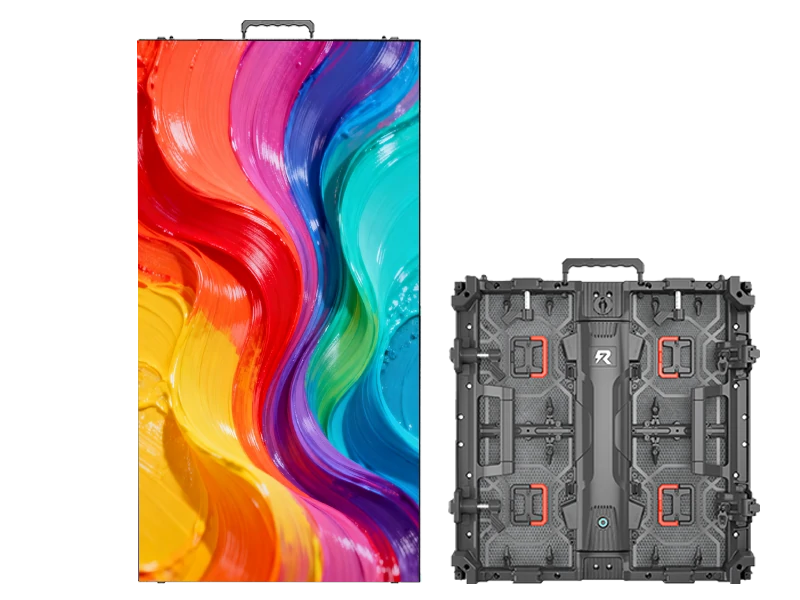

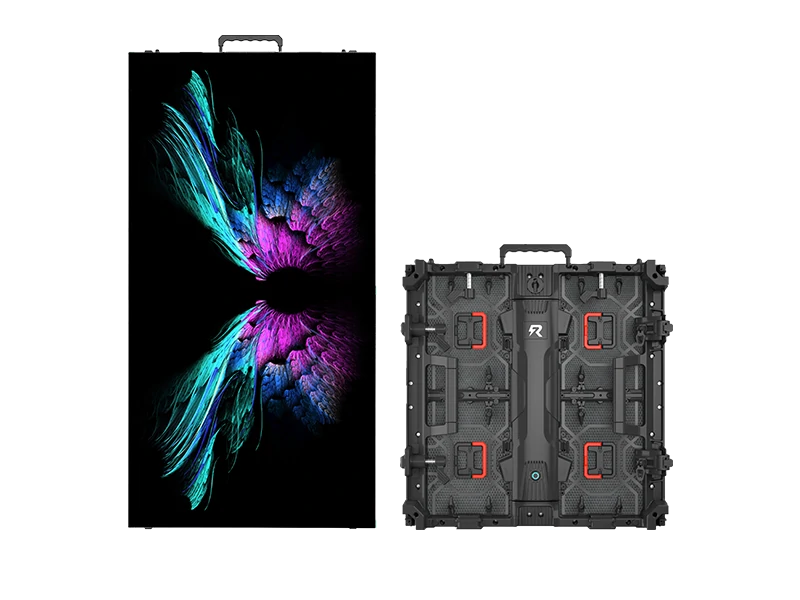

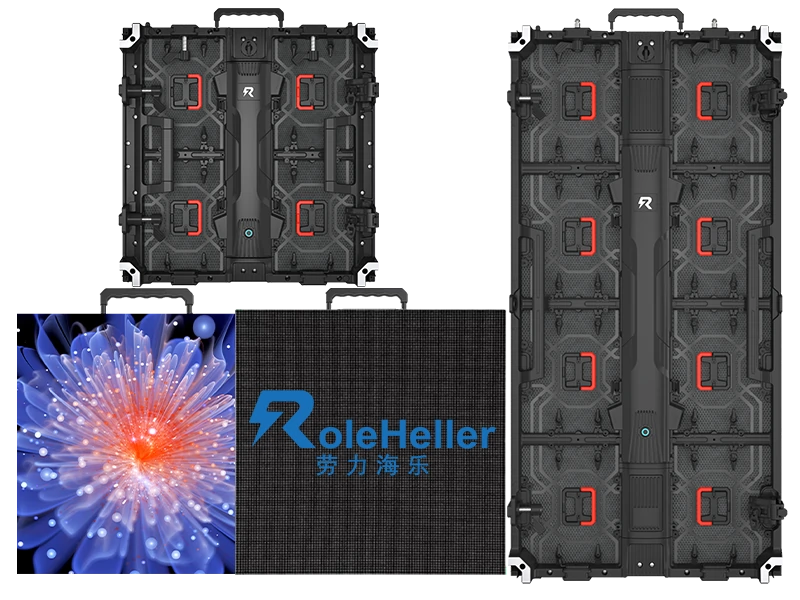

Panel Size: 500mm x 500mm / 500mm x 1000mm，Free Splice.

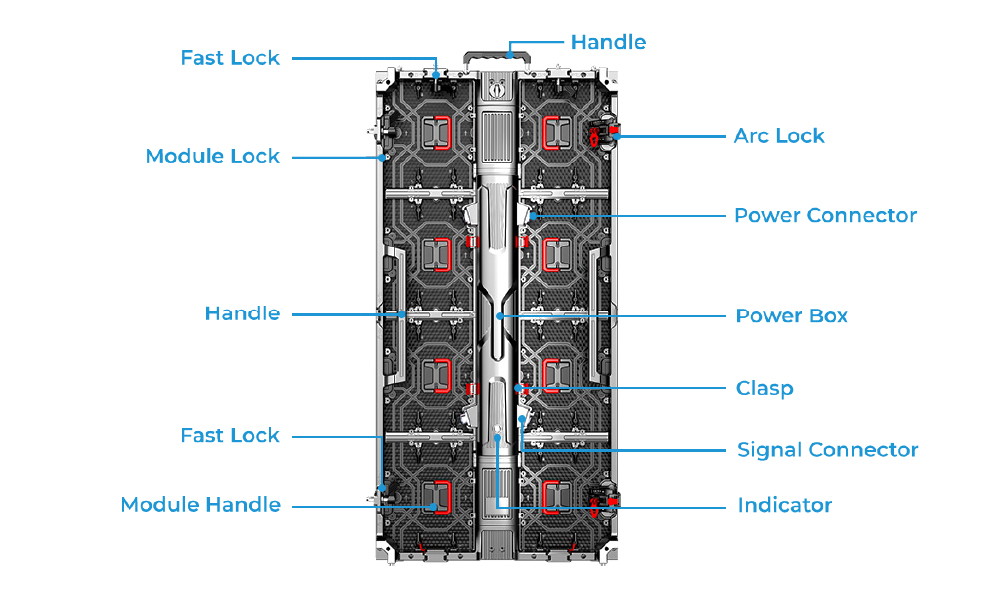

Modular design – Easy splicing, high flatness, fully customizable ;
Reliable performance – Stable signal, long lifespan, robust power ;
Quiet & cool – Low-noise, low-temperature operation ;
Lightweight & durable – Ultra-thin die-cast aluminum for easy transport ;
Ultra-Clear Display with Instant Response
Roleheller DuoFlux LED Screen Experience an ultra-fast, crystal-clear display with instant response and flicker-free viewing for seamless visuals.
Roleheller offers stunning visuals with versatile designs. Lightweight and easy to install,
DuoFlux LED screens seamlessly adapt to stage setups and outdoor advertising.

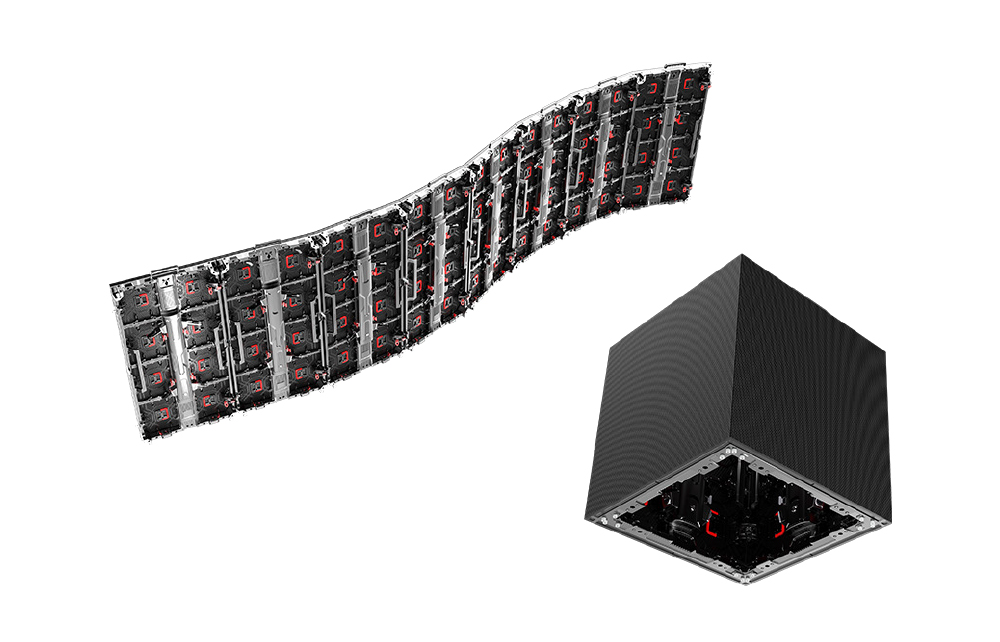

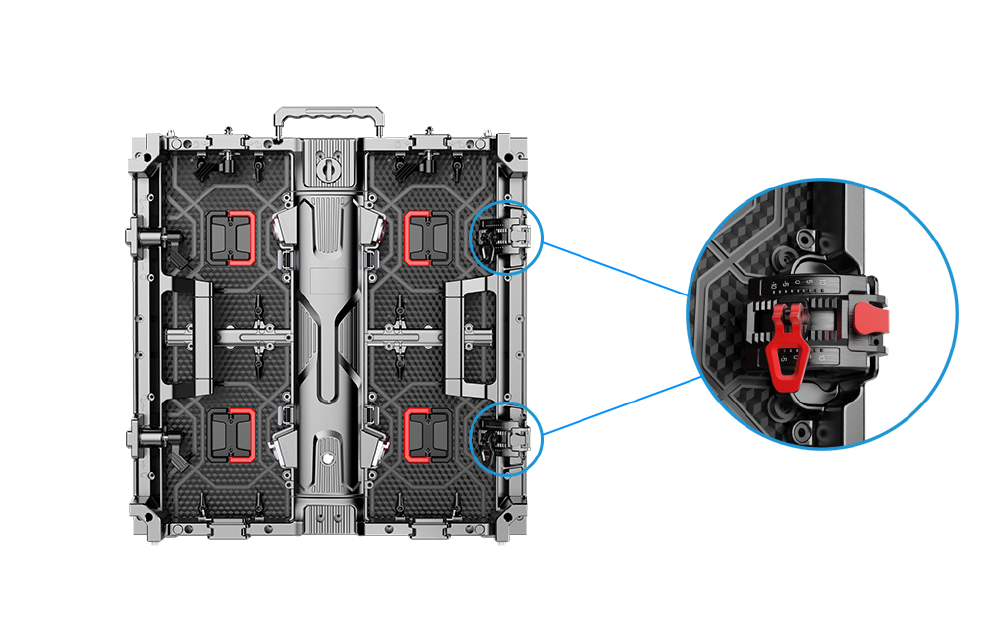

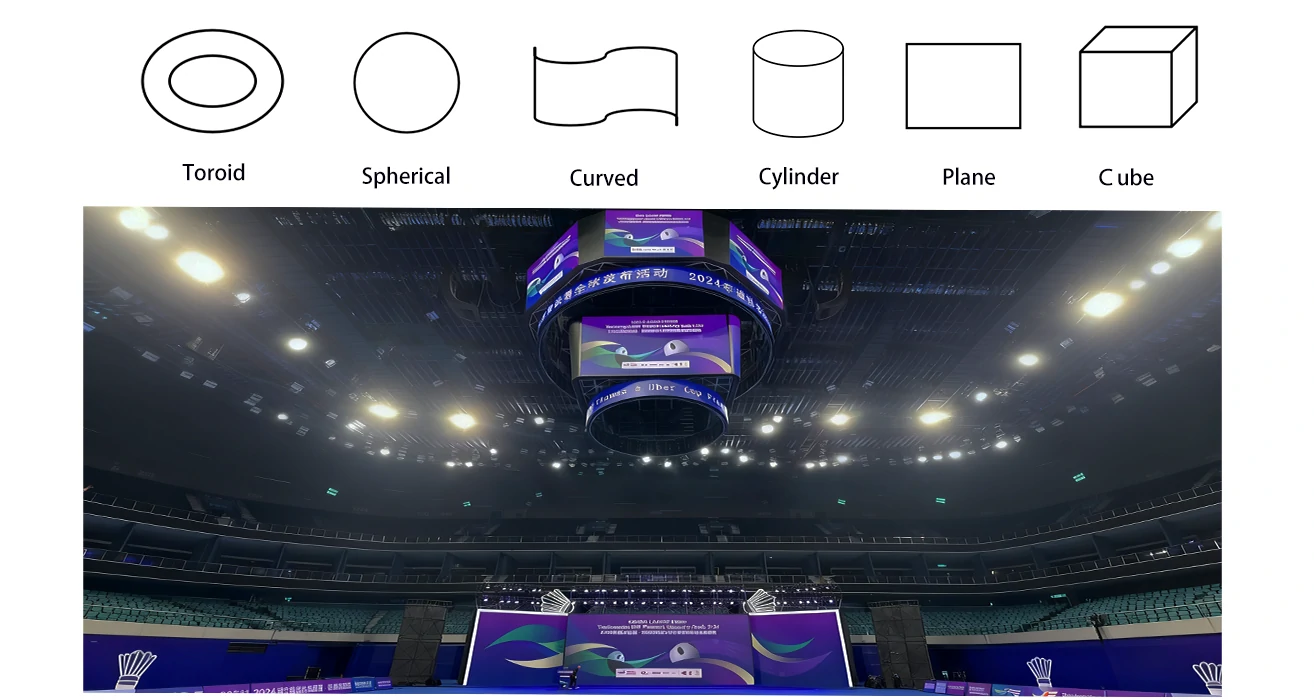

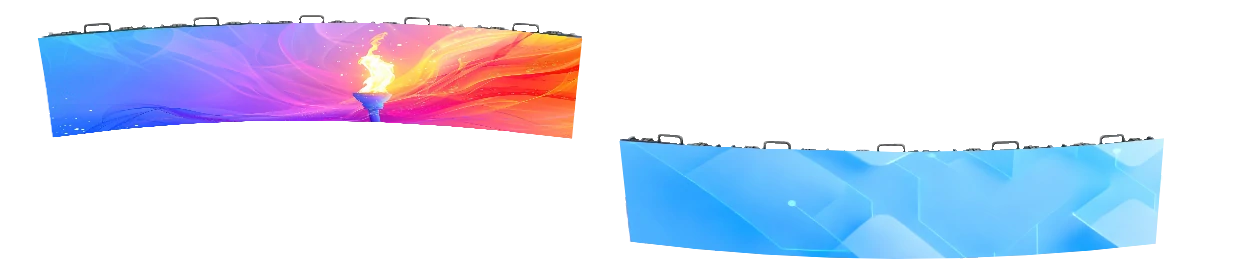

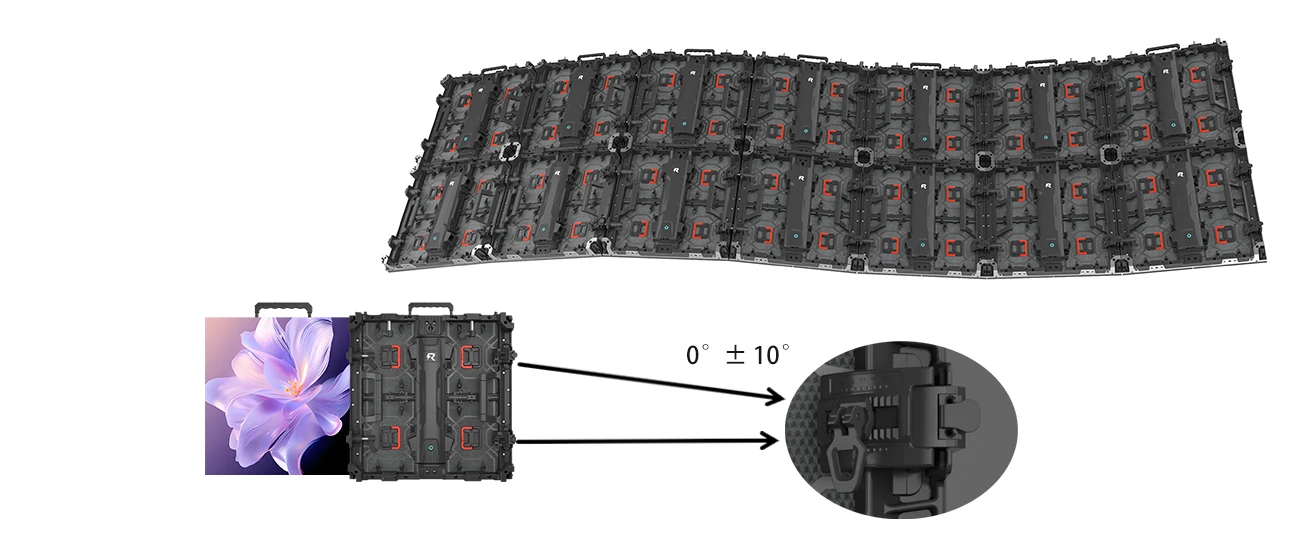

Innovative half-Arc lock Design, compatible with straight and arc configurations.
Inner arc Outer arc

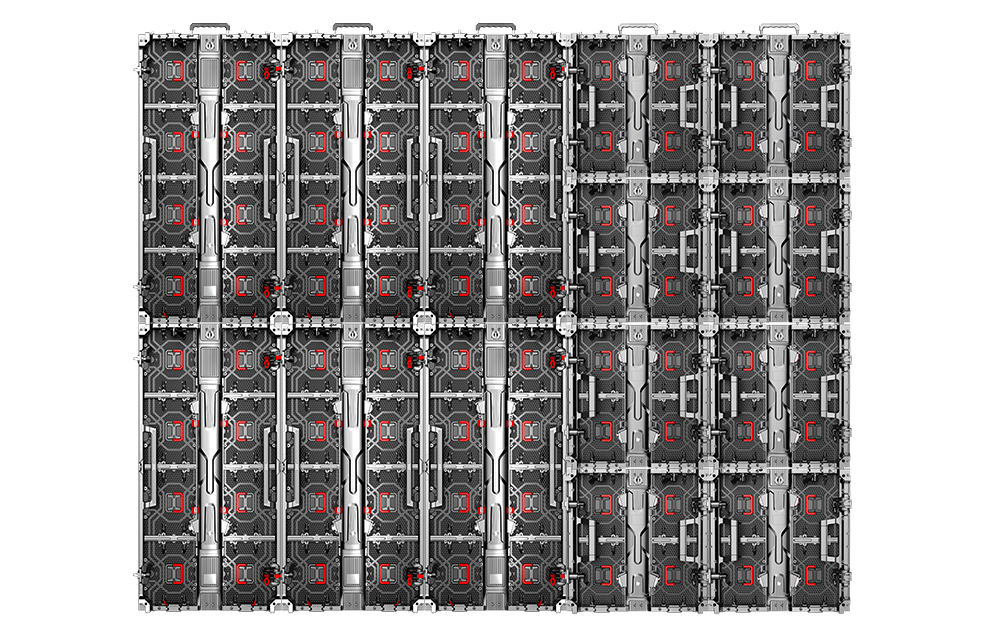

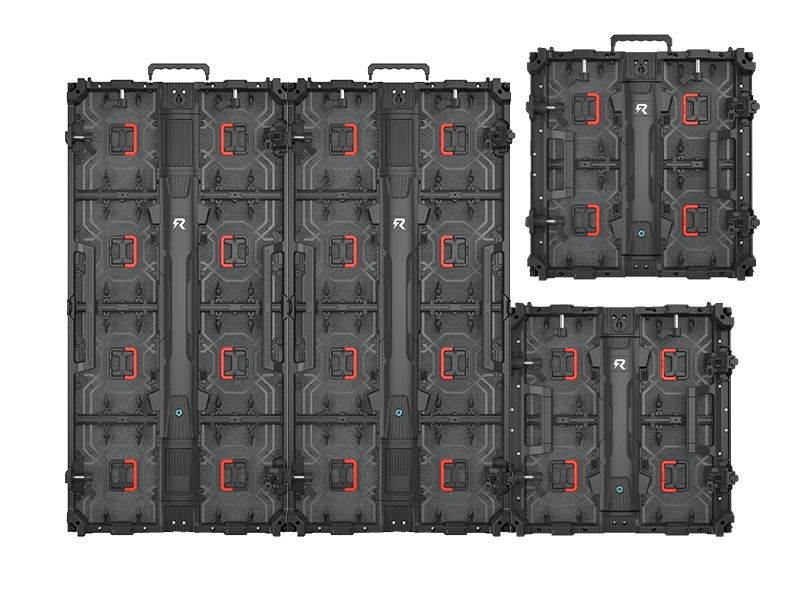

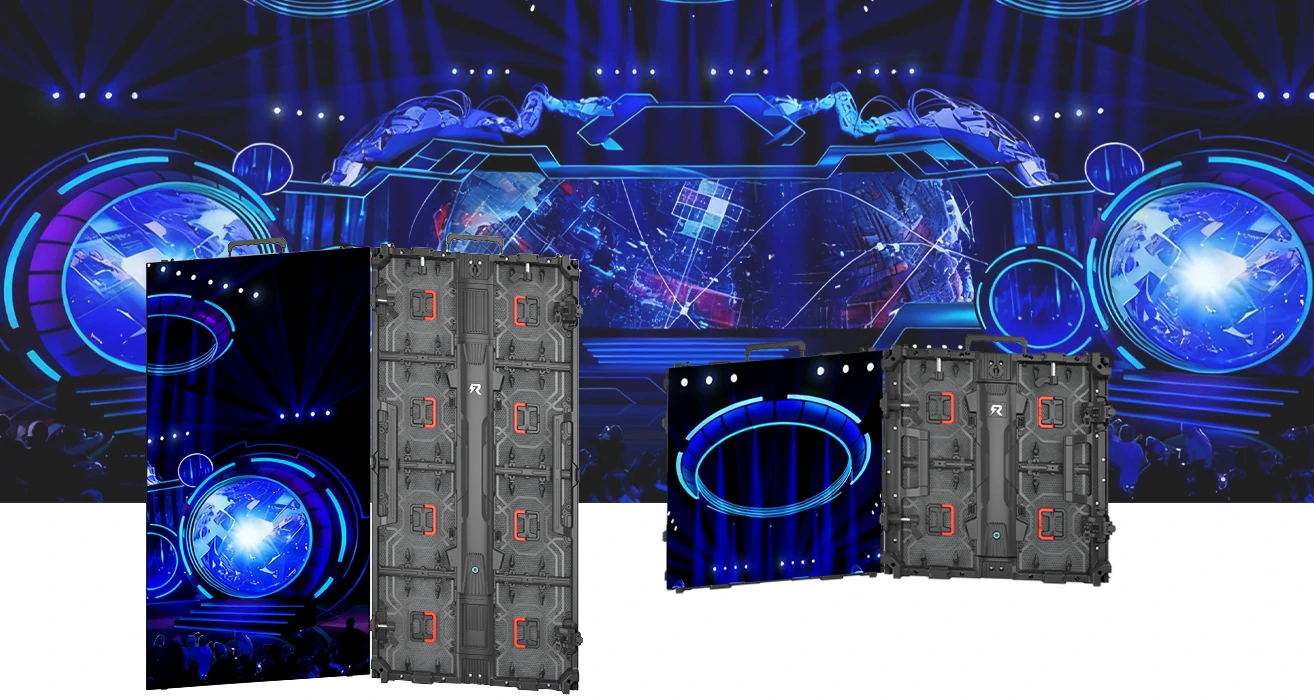

DuoFlux LED displays - both the 500x500mm and 500x100mm models - can be easily snapped together like puzzle pieces. Super simple installation, saves you tons of time!
Roleheller's got LED screens (P2.60, P2.97, P3.91, P4.81, P5.95) that show images/videos super clearly to grab attention—perfect for malls, hotels, outdoor ads, or building exteriors.
DuoFlux LED displays are IP65 waterproof, moisture-resistant, and heat-resistant, ideal for outdoor stages, stadiums, and commercial events.
| indoor | outdoor | |||||||
| Pixel Pitch | P1.5 | P1.9 | P2.6 | P2.9 | P3.9 | P2.6 | P2.9 | P3.9 |
| LED Type | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD1415 | SMD1415 | SMD1921 |
| Pixel Density (dot/m²) | 409600 | 262144 | 147456 | 112896 | 65536 | 147456 | 112896 | 65536 |
| Module Resolution | 160×160 | 128×128 | 96×96 | 84×84 | 64×64 | 96×96 | 84×84 | 64×64 |
| Module Size(WxH) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Cabinet Size(mm) | 500×500 | 500×500/500×1000 | ||||||
| Cabinet Resolution | 320×320 | 256×256 | 192×192 | 168×168/336 | 128×128/256 | 192×192 192×384 | 168×168 168×336 | 128×128 128×256 |
| Module Qty | 2×2 | 2×2 | 2×2 | 2×2 | 2×2/2×4 | 2×2/2×4 | 2×2/2×4 | 2×2/2×4 |
| Weight (kg) | 7.5 | 7.5 | 7.5 | 7.5/14.5 | 7.5/14.5 | 7.5/14.5 | 7.5/14.5 | 7.5/14.5 |
| Maintenance | Front/Rear Maintenance | |||||||
| Cabinet Material | Die-cast Aluminum | |||||||
| Color Temp. (K) | 5000-12000 Optional | |||||||
| Viewing Angle | 160°/160° | |||||||
| Brightness(Nits) | ≥600 | ≥600 | ≥800 | ≥800 | ≥1000 | ≥4500 | ≥4500 | ≥5000 |
| Viewing Distance | 2-50m | 2-50m | 3-50m | 3-100m | 4-100m | 3-50m | 3-100m | 4-150m |
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Frame Rate | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Drive Mode | 1/40 scan | 1/32 scan | 1/32 scan | 1/28 scan | 1/16 scan | 1/32 scan | 1/28 scan | 1/8 scan |
| Grey Scale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Refresh Rate(Hz) | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 |
| Protection Grade | IP31 | IP65 | ||||||
| Max Power Com. | 800w/m² | |||||||
| Ave Power Com. | 200-300w/m² | |||||||
| Power Input | AC90-264V, 47-63Hz | |||||||
| Working T/H(C/RH) | -20~60C/10%~85% | |||||||
| Storage T/H(C/RH) | -20~60C/10%~85% | |||||||
| Cert. | CCC/CE/RoHS/FCC/CB/TUV/IEC | |||||||
| indoor | outdoor | |||||||
| Pixel Pitch | P1.5 | P1.9 | P2.6 | P2.9 | P3.9 | P2.6 | P2.9 | P3.9 |
| LED Type | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD1415 | SMD1415 | SMD1921 |
| Pixel Density (dot/m²) | 409600 | 262144 | 147456 | 112896 | 65536 | 147456 | 112896 | 65536 |
| Module Resolution | 160×160 | 128×128 | 96×96 | 84×84 | 64×64 | 96×96 | 84×84 | 64×64 |
| Module Size(WxH) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Cabinet Size(mm) | 500×500 | 500×500/500×1000 | ||||||
| Cabinet Resolution | 320×320 | 256×256 | 192×192 | 168×168/336 | 128×128/256 | 192×192 192×384 | 168×168 168×336 | 128×128 128×256 |
| Module Qty | 2×2 | 2×2 | 2×2 | 2×2 | 2×2/2×4 | 2×2/2×4 | 2×2/2×4 | 2×2/2×4 |
| Weight (kg) | 7.5 | 7.5 | 7.5 | 7.5/14.5 | 7.5/14.5 | 7.5/14.5 | 7.5/14.5 | 7.5/14.5 |
| Maintenance | Front/Rear Maintenance | |||||||
| Cabinet Material | Die-cast Aluminum | |||||||
| Color Temp. (K) | 5000-12000 Optional | |||||||
| Viewing Angle | 160°/160° | |||||||
| Brightness(Nits) | ≥600 | ≥600 | ≥800 | ≥800 | ≥1000 | ≥4500 | ≥4500 | ≥5000 |
| Viewing Distance | 2-50m | 2-50m | 3-50m | 3-100m | 4-100m | 3-50m | 3-100m | 4-150m |
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Frame Rate | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Drive Mode | 1/40 scan | 1/32 scan | 1/32 scan | 1/28 scan | 1/16 scan | 1/32 scan | 1/28 scan | 1/8 scan |
| Grey Scale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Refresh Rate(Hz) | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 |
| Protection Grade | IP31 | IP65 | ||||||
| Max Power Com. | 800w/m² | |||||||
| Ave Power Com. | 200-300w/m² | |||||||
| Power Input | AC90-264V, 47-63Hz | |||||||
| Working T/H(C/RH) | -20~60C/10%~85% | |||||||
| Storage T/H(C/RH) | -20~60C/10%~85% | |||||||
| Cert. | CCC/CE/RoHS/FCC/CB/TUV/IEC | |||||||
