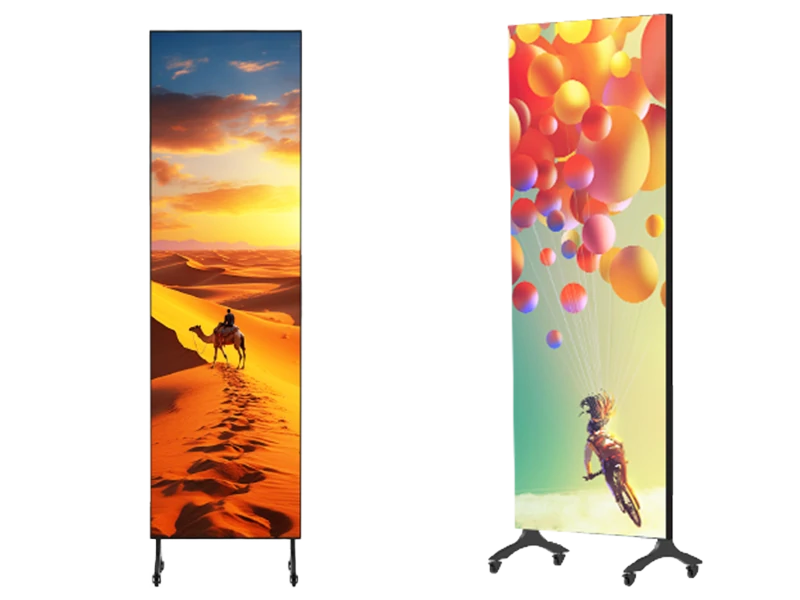

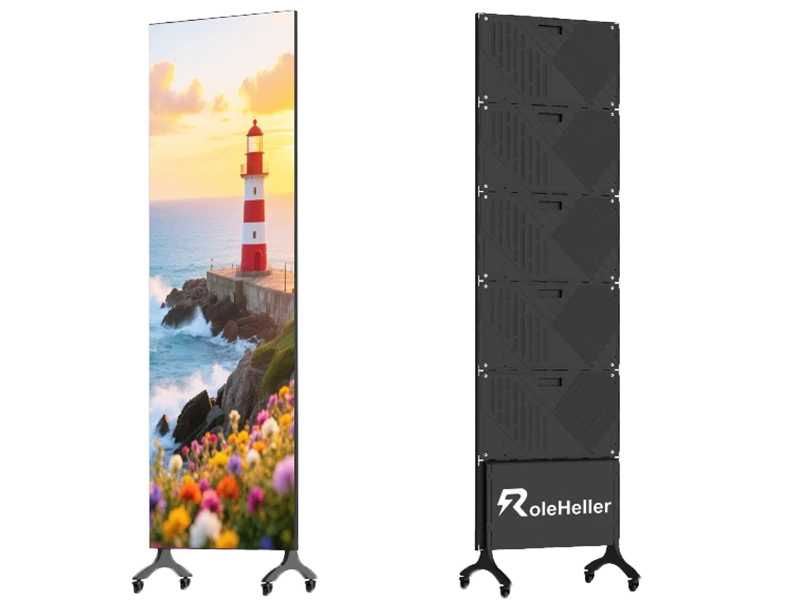

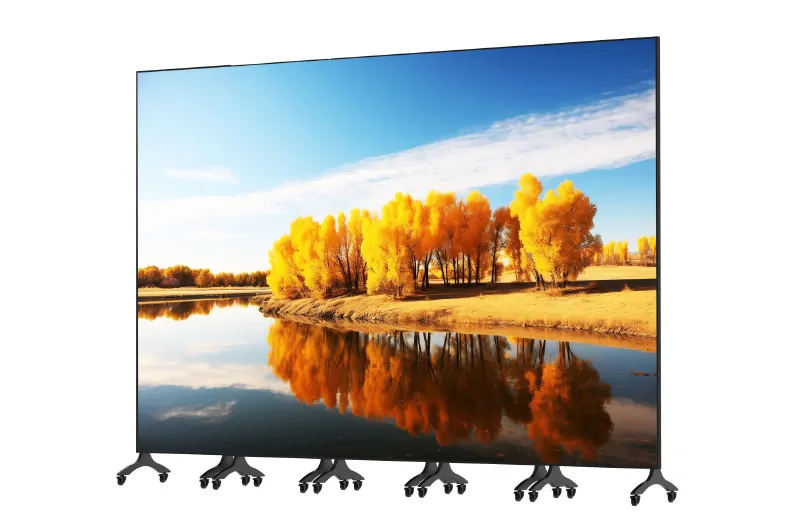

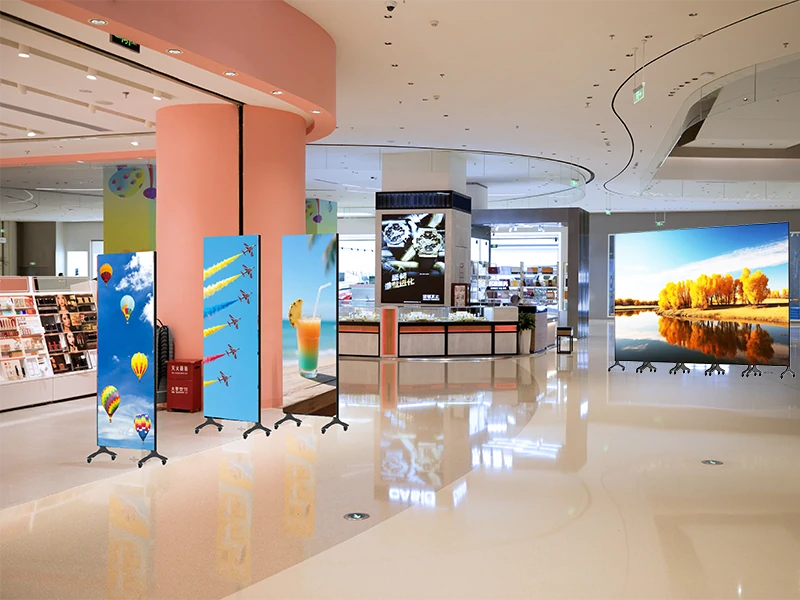

LED billboard X4 Series is super sleek and delivers bright HD visuals thanks to COB and GOB tech, led billboard advertising can connect multiple screens seamlessly, shows colors really vibrantly. Great for hotels, showrooms, and malls that want sharp-looking digital signs，Check led billboard cost！！

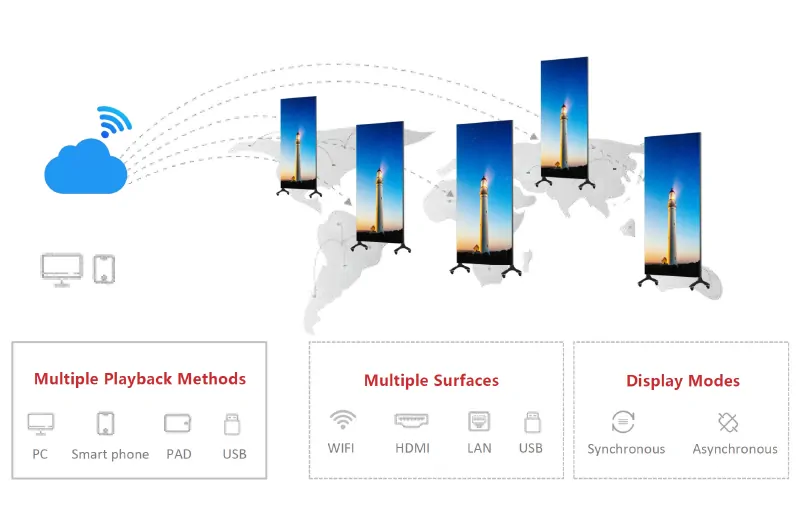

LED billboards Multiple interfaces

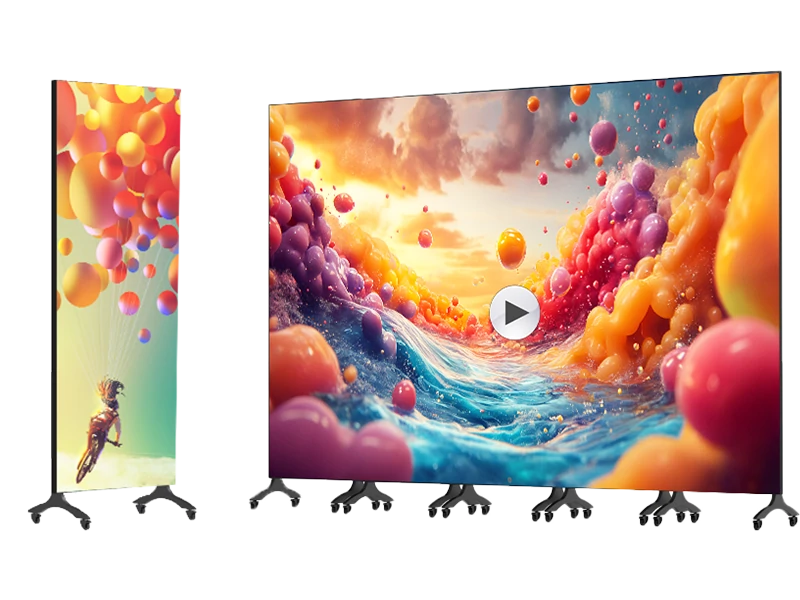

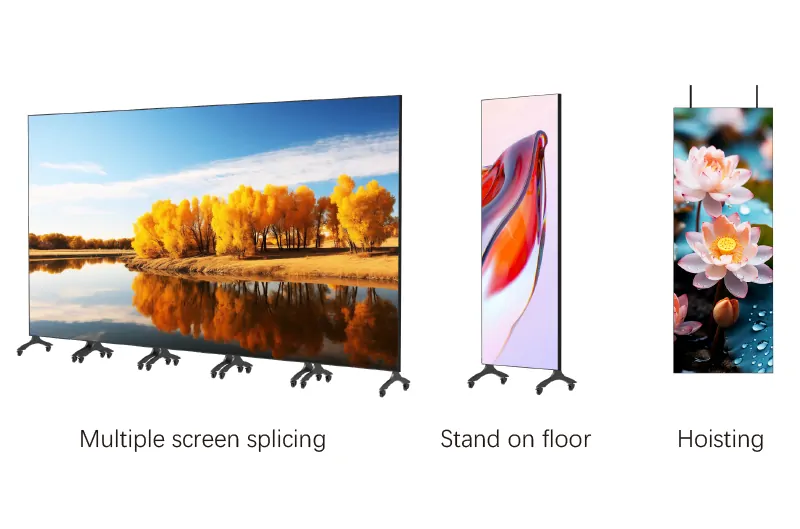

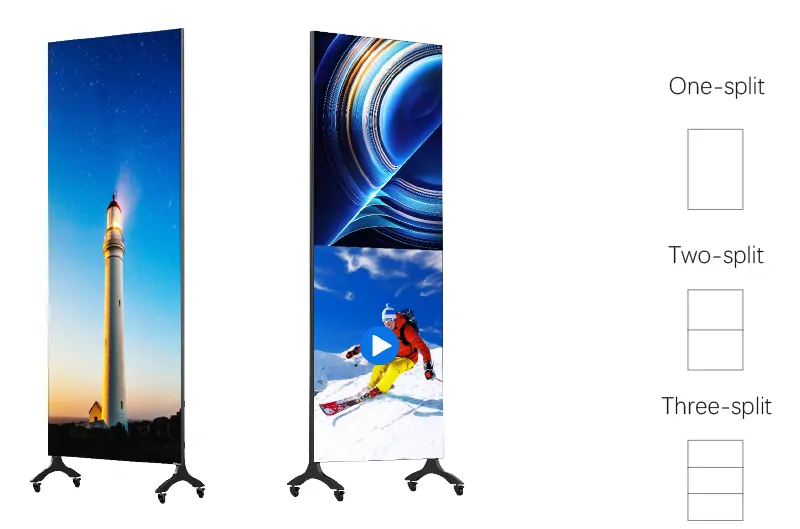

Intelligent split display

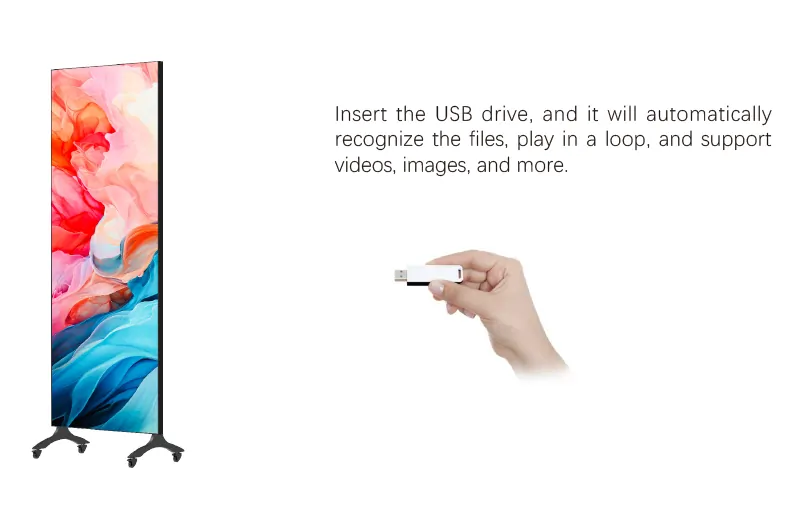

LED poster display Sync&Asyno play
support Wifi/Ethernet
| Pixel Pitch | P0.94 | P1.25 | P1.56 | P1.86 | P2.5 |
| LED type | COB | SMD1010 COB | SMD1010/1212 COB | SMD1010/1515 GOB | SMD1010/1515 GOB |
| Pixel density (dot/m2) | 1137778 | 640000 | 409600 | 284444 | 160000 |

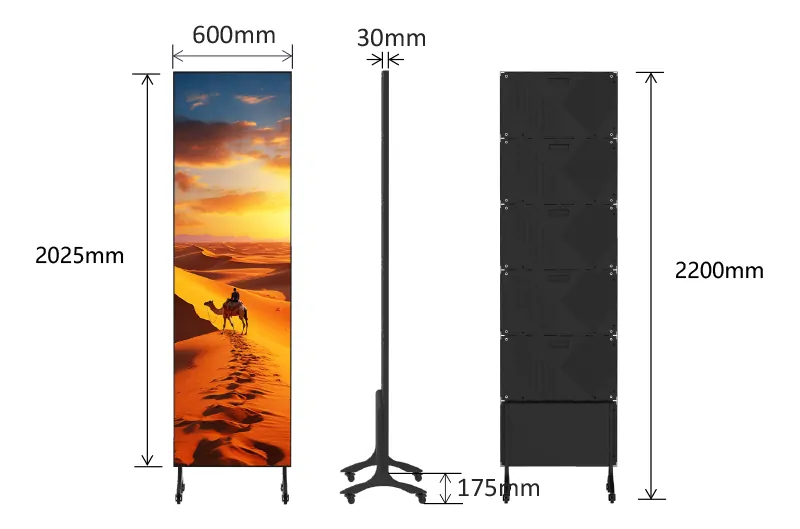

| Display dimensions (mm) | 600 x 2025 x 30 | ||||
| Overall dimensions (mm) | 606 x 2206 x 30 | ||||
| Display Pixels (Points) | 640 x 2160 | 480 x 1620 | 384 x 1296 | 320 x 1080 | 240 x 810 |
| Weight (kg) | 37 | ||||
| Maintenance mode | Front | ||||
| Cabinet material | Die-cast Aluminum | ||||
| Drive mode | 1/60 scan | 1/45 scan | 1/48 scan | 1/45 scan | 1/45 scan |
| Brightness (Nits) | ≥600 | ||||
| Color temperature | 5000 - 12000 Optional | ||||
| Viewing angle (V/H) | 170°/170° | ||||
| Brightness/Color uniformity | ≥99.8% | ||||
| Contrast ratio | 10000:1 | ||||
| Frame Rate | 50 / 60 | ||||
| Grey Level | 16 Bit | ||||
| Refresh rate (Hz) | 3840 | ||||
| Max. power consumption | 420w | ||||
| Avg. power consumption | 100-200w | ||||
| Control mode | USB / LAN / WIFI / 4G cloud (optional) | ||||
| Input Power | AC90-264V, 47-63Hz | ||||
| Working Temp/Humidity | -20~60℃ / 10%~85% | ||||
| Storage Temp/Humidity | -20~60℃ / 10%~85% | ||||
| Cert. | CCC / CE / RoHS / FCC / CB / TUV / IEC /BIS | ||||
