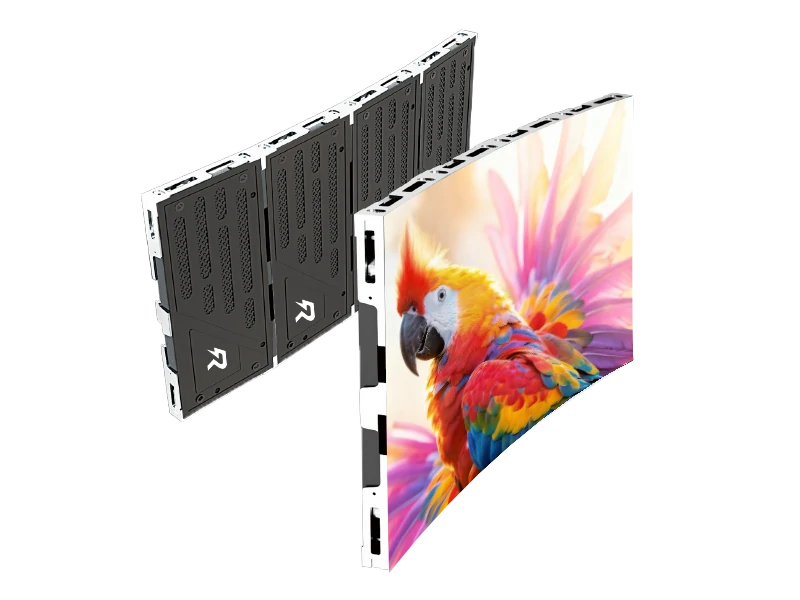

X3-curved display led bends to fit any space - customize it! With its tough aluminum frame, double backup, and easy access, curved led wall great for luxury stores, art spaces, and immersive experiences，Get video wall price !
The most cost-effective LED display：

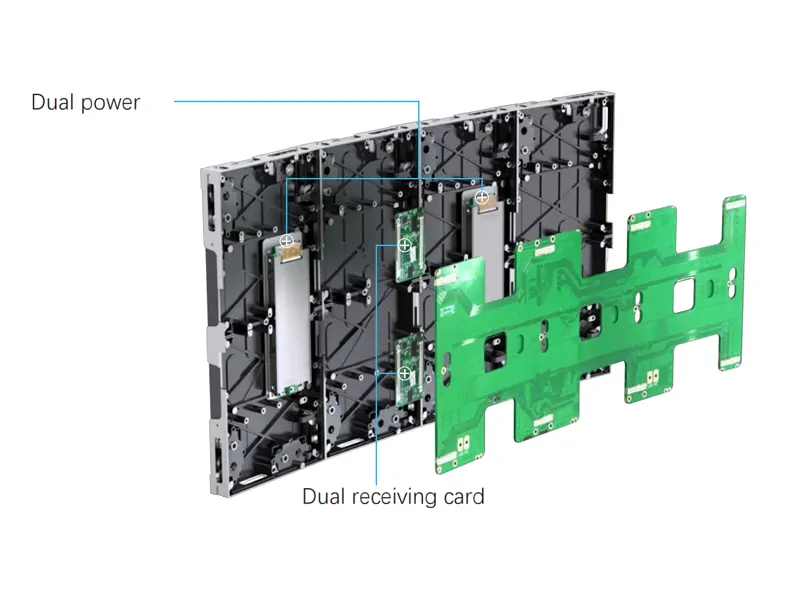

curved led screen with dual backup system and stable brightness；

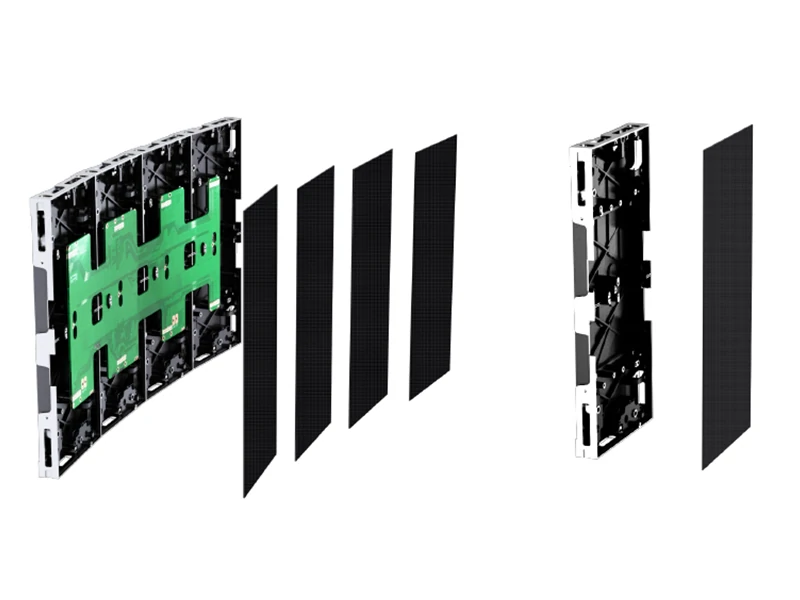

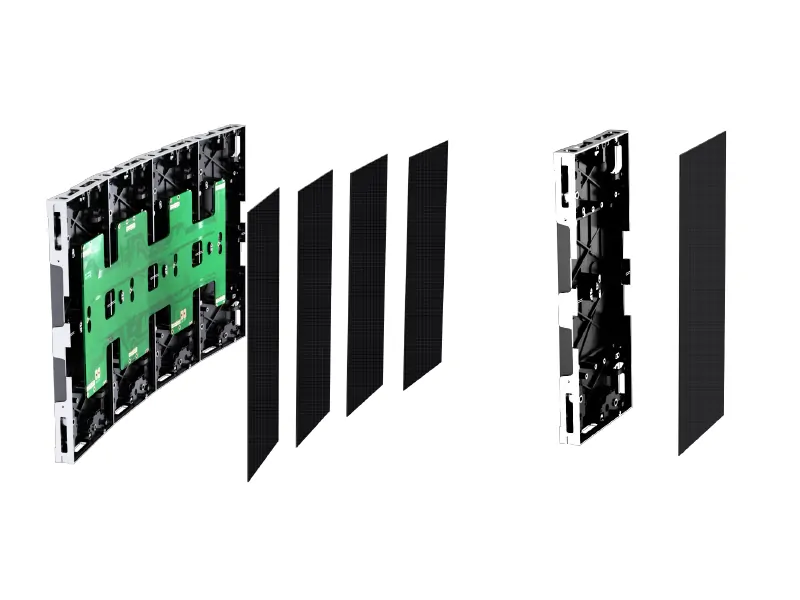

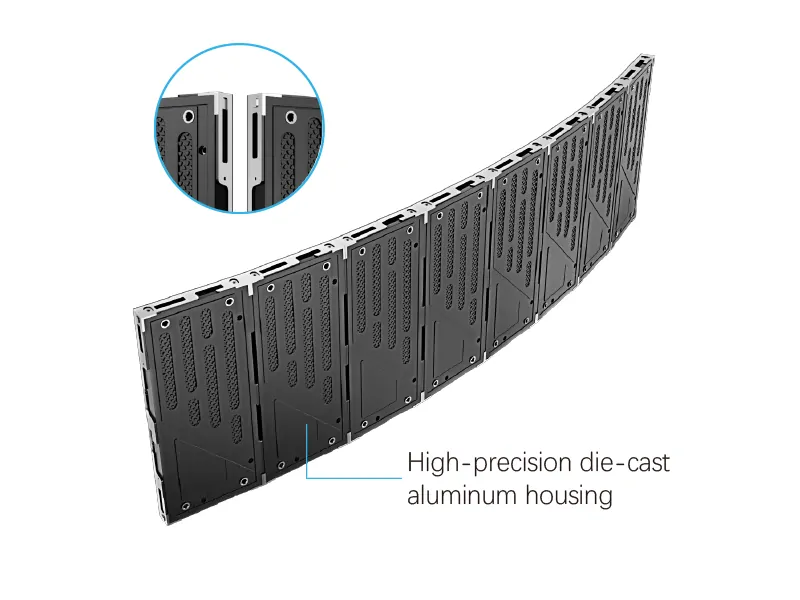

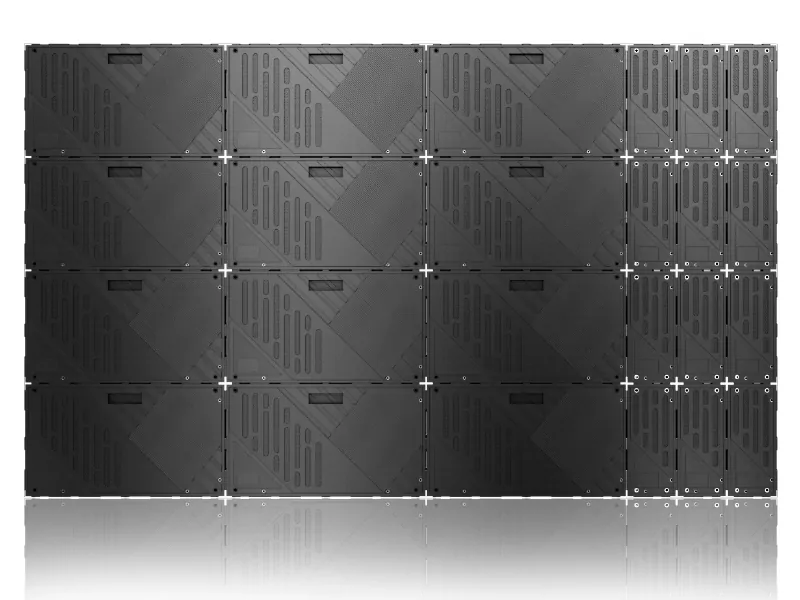

curved led wall with die-cast aluminum frame, modular 150mm cabinet；

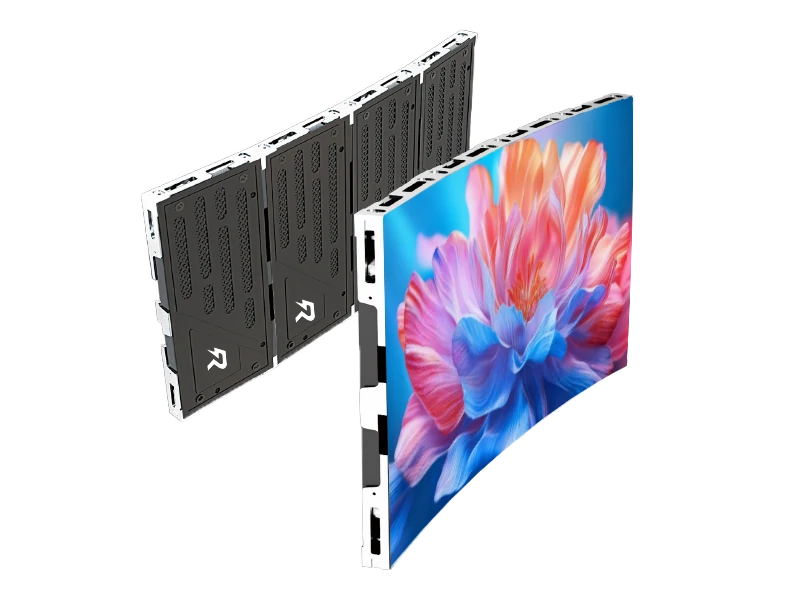

LED video wall that can curve inwards (inner curve) or outwards (outer curve)；
| Pixel Pitch | P0.78 | P0.9375 | P1.25 | P1.56 | P1.875 | P2.5 |
| LED type | Mini 4-in-1 | COB | SMD1010 | SMD1010/1212 | SMD1010/1515 | SMD1515/GOB |
| Pixel density (dot/m2) | 1638400 | 1137778 | 640000 | 409600 | 284444 | 160000 |
| Module resolution | 192 x 216 | 160 x 180 | 240 x 135 | 190 x 108 | 160 x 90 | 60 x 135 |
| Module size (mm) | 150 x 168.75 | 150 x 168.75 | 150 x 337.5 | 150 x 337.5 | 150 x 337.5 | 150 x 337.5 |

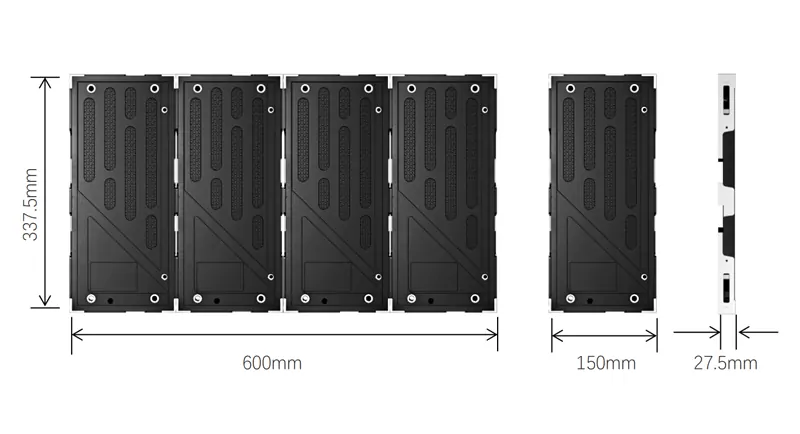

| Panel size (W x H x D/mm) | 600 x 337.5 x 27.5 | |||||
| Panel resolution | 768 x 432 | 640 x 360 | 480 x 270 | 384 x 216 | 320 x 180 | 240 x 135 |
| Module QTY (W x H) | 4 x 2 | 4 x 2 | 4 x 1 | 4 x 1 | 4 x 1 | 4 x 1 |
| Cabinet weight | 4.5 kg | 4.5 kg | 4.5 kg | 4.5 kg | 4.5 kg | 4.5 kg |
| Drive mode | 1/64 scan | 1/60 scan | 1/45 scan | 1/48 scan | 1/45 scan | 1/30 scan |
| Maintenance mode | Front | Front | Front | Front | Front | Front |
| Cabinet material | Die-casting aluminum | |||||
| Brightness correction | Yes | |||||
| Brightness (Nits) | ≥600 | |||||
| Color temperature | 5000 - 12000 Optional | |||||
| Viewing angle (V/H) | 170°/170° | |||||
| Brightness/Color uniformity | ≥99.8% | |||||
| Contrast ratio | 10000:1 | |||||
| Frame Rate | 50 / 60 | |||||
| Grey Level | 16 Bit | |||||
| Refresh rate (Hz) | 3840 | |||||
| Max. power consumption | 350w/sqm | |||||
| Avg. power consumption | 100w/sqm | |||||
| Protection grade | IP 31 | |||||
| Input Power | AC90-264V, 47-63Hz | |||||
| Working Temp/Humidity | -20~60℃ / 10%~85% | |||||
| Storage Temp/Humidity | -20~60℃ / 10%~85% | |||||
| Cert. | CCC / CE / RoHS / FCC / CB / TUV / IEC | |||||
