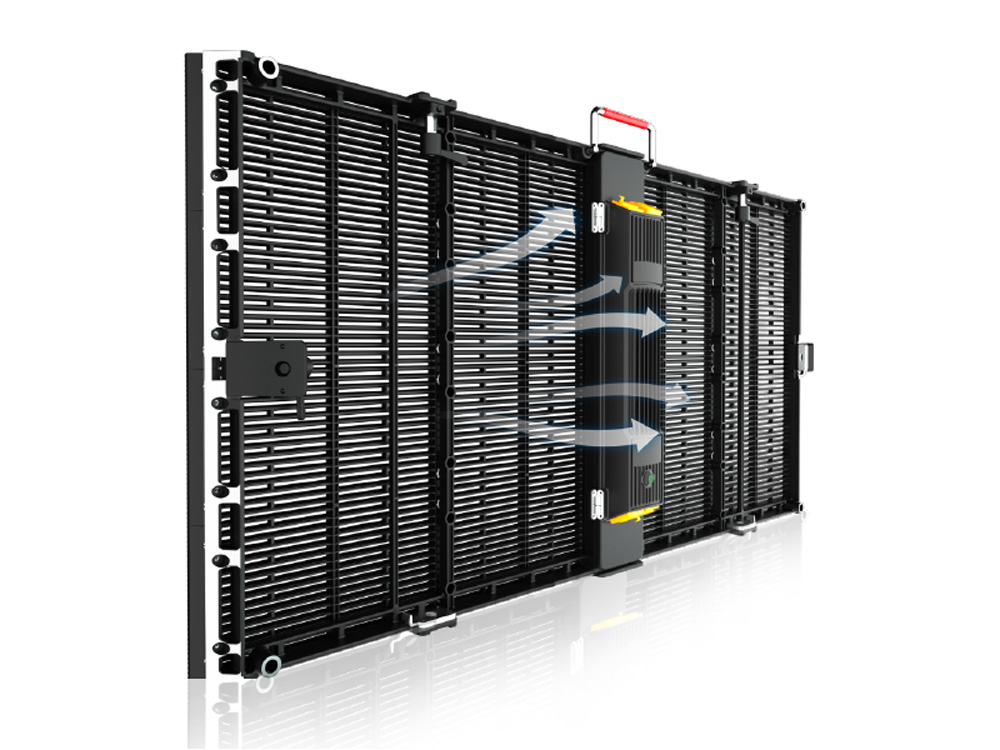

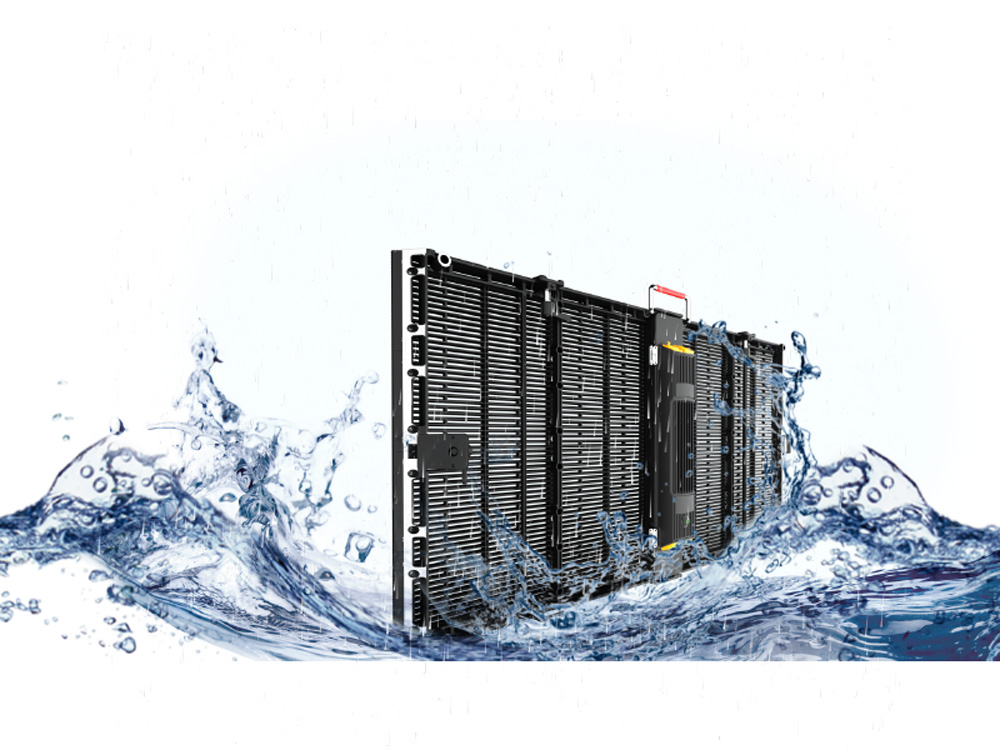

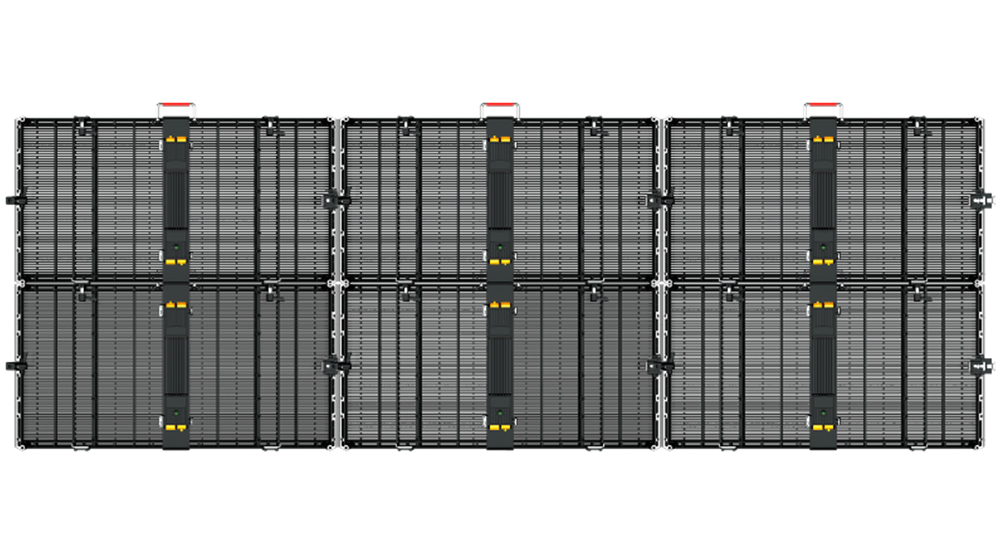

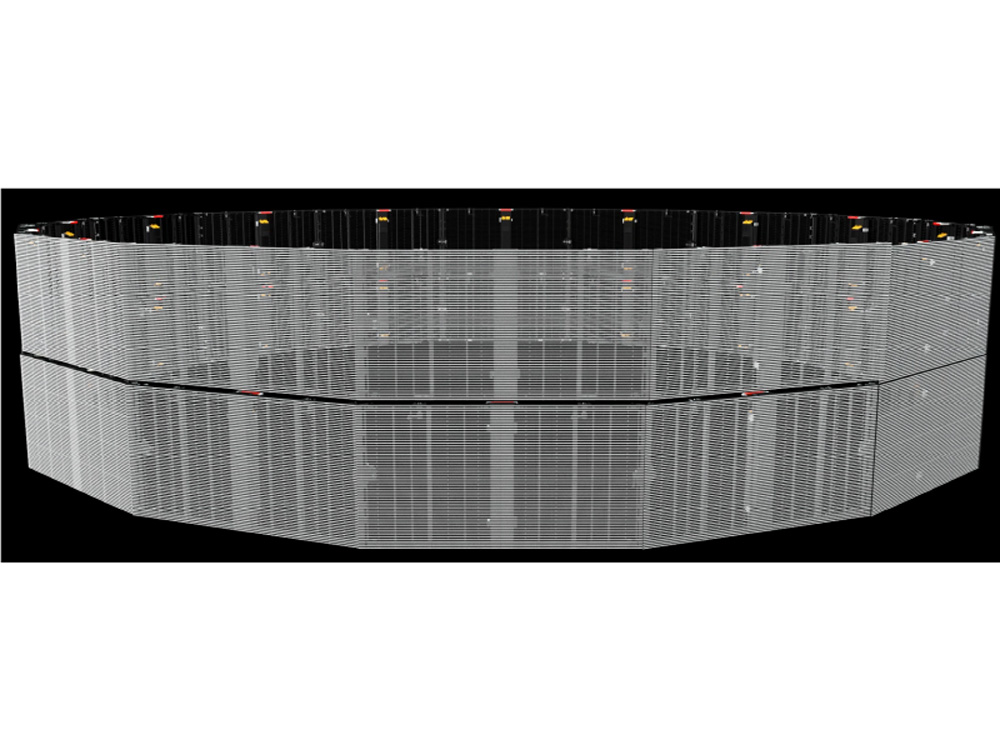

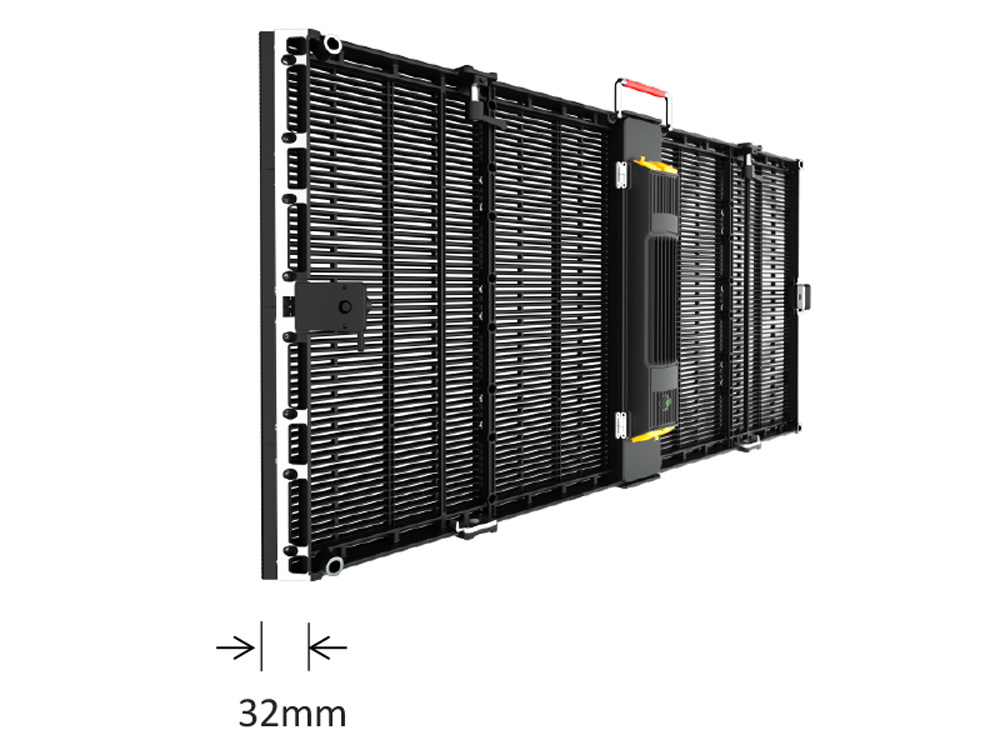

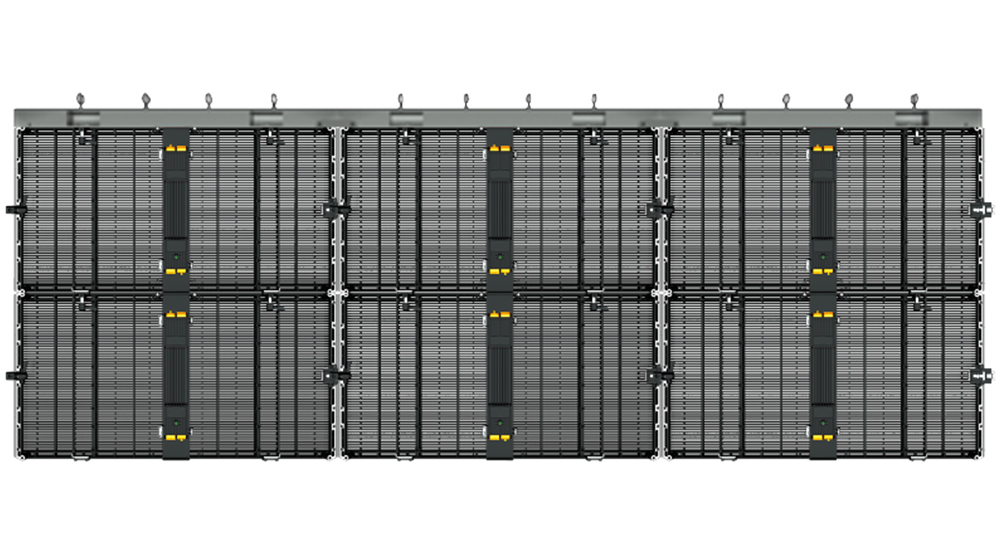

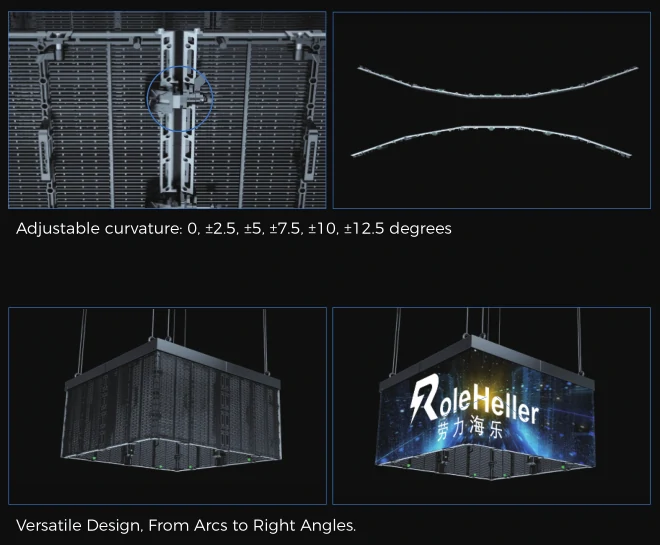

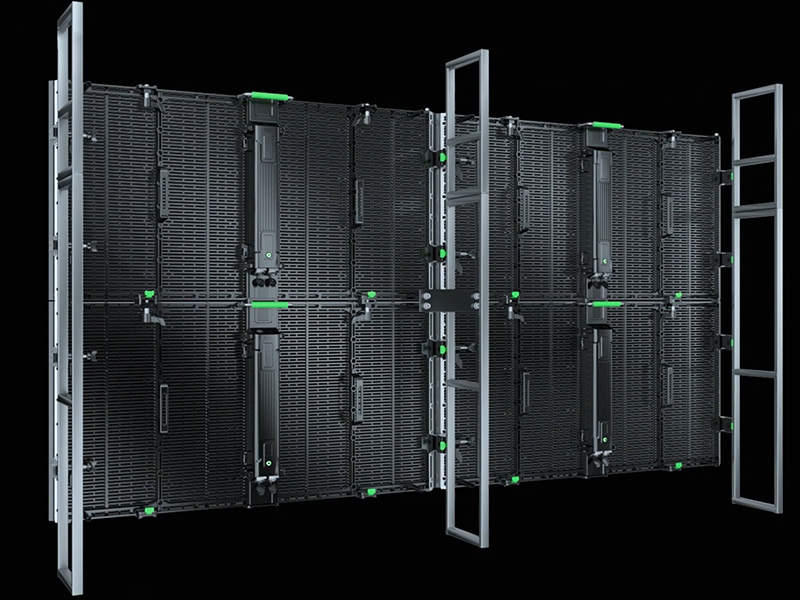

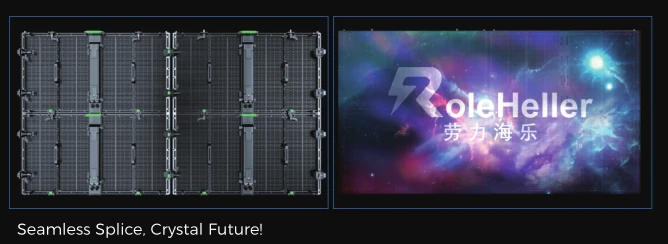

The LED Transparent Screen offers up to 85% transparency with a slim, fanless design for natural ventilation. Its lightweight, customizable cabinets support curved and seamless splicing. Ideal for window displays and glass facades, the IP65-rated outdoor version ensures all-weather performance without blocking light or visibility.
| Pixel Pitch (H/V) | P2.5 - 5.0 | P3.91 - 7.82 |
| LED Type | SMD1415 / 1515 | SMD1921 / 2020 |
| Pixel Density (dot/m²) | 80000 | 32768 |

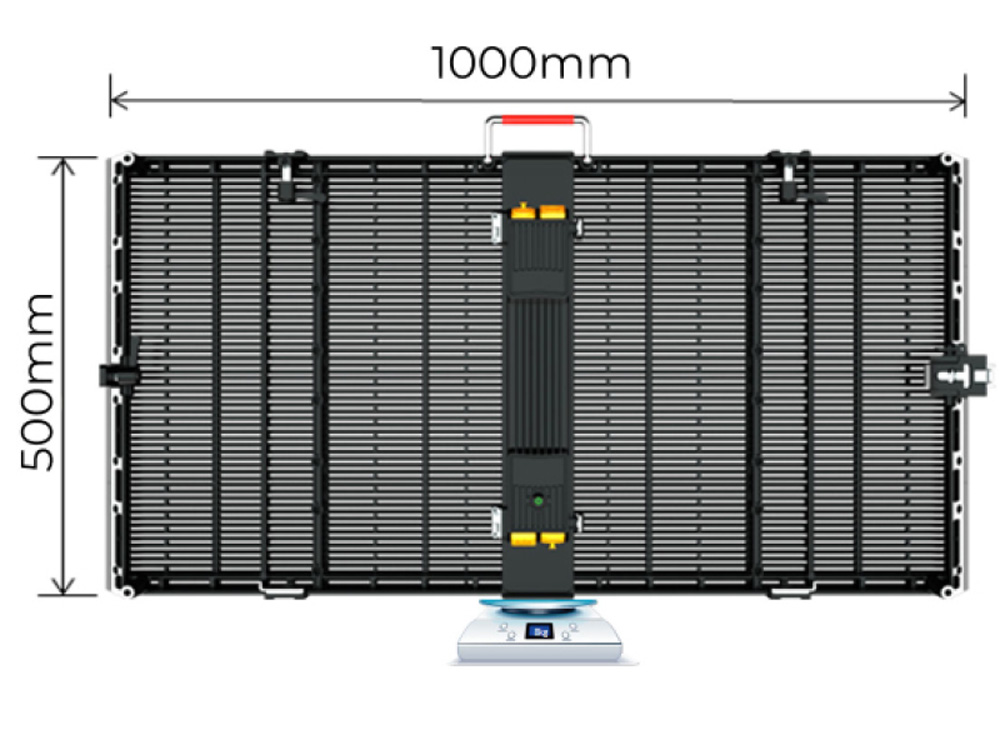

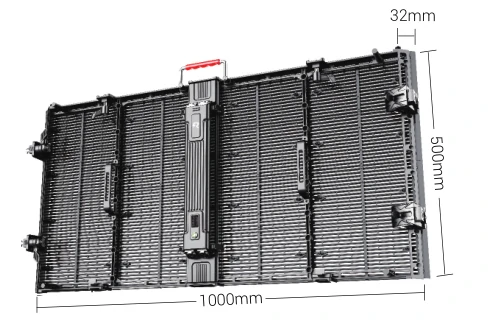

| Cabinet size (mm) | 1000 x 500 | 1000 x 500 |
| Drive mode | 16 - 32 | 16-Aug |
| Brightness (cd/m²) | 1500 - 2500 | 1500 - 2500 |
| Transparency | 70% - 85% | 70% - 85% |
| Refresh rate (Hz) | 3840 | 3840 |
| Brightness adjustment | Level 256 | Level 256 |
| Viewing angle (V/H) | 160° / 160° | 160° / 160° |
| Best Viewing Distance | 3m - 50m | 4m - 50m |
| Protection Grade | IP 31 | IP 31 |
| Power Input | AC90-264V, 47-63Hz | |
| Working T/H(℃/RH) | -20~60℃ / 10%~85% | |
| Storage T/H(℃/RH) | -20~60℃ / 10%~85% | |
| Cert. | CCC / CE / RoHS / FCC / CB / TUV / IEC | |
| Pixel Pitch (H/V) | P3.91 - 7.82 |
| LED Type | SMD1921 |
| Pixel Density (dot/m²) | 32768 |
| Cabinet size (mm) | 1000 x 500 |
| Drive mode | 16-Aug |
| Brightness (cd/m²) | ≥5000 |
| Transparency | 70% - 85% |
| Refresh rate (Hz) | 3840 |
| Brightness adjustment | Level 256 |
| Viewing angle (V/H) | 160° / 160° |
| Best Viewing Distance | 4m - 50m |

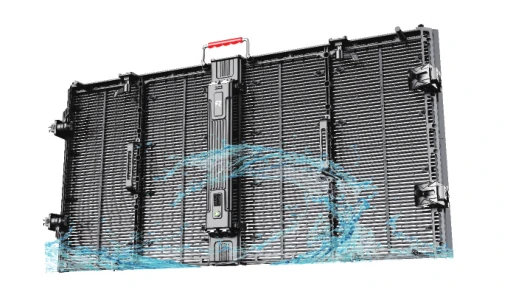

| Protection Grade | IP 65 |
| Power Input | AC90-264V, 47-63Hz |
| Working T/H(℃/RH) | -20~60℃ / 10%~85% |
| Storage T/H(℃/RH) | -20~60℃ / 10%~85% |
| Cert. | CCC / CE / RoHS / FCC / CB / TUV / IEC |
