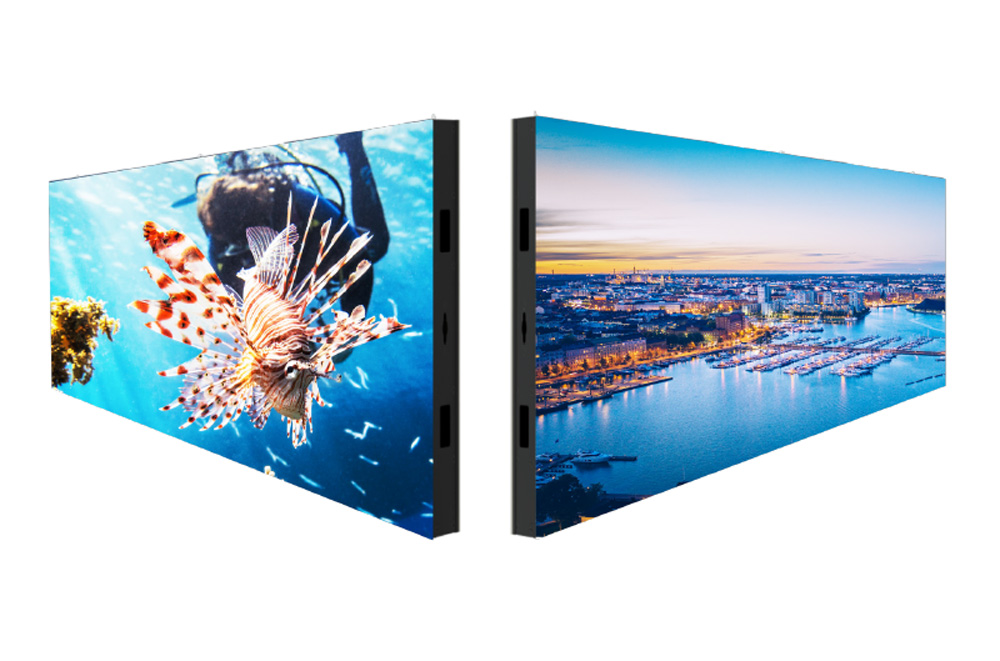

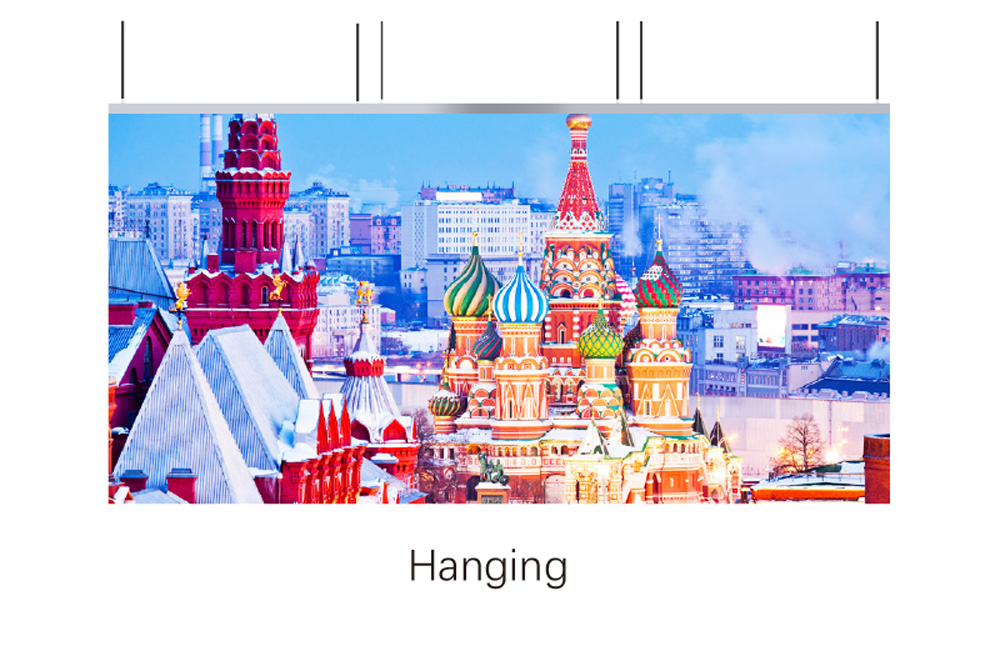

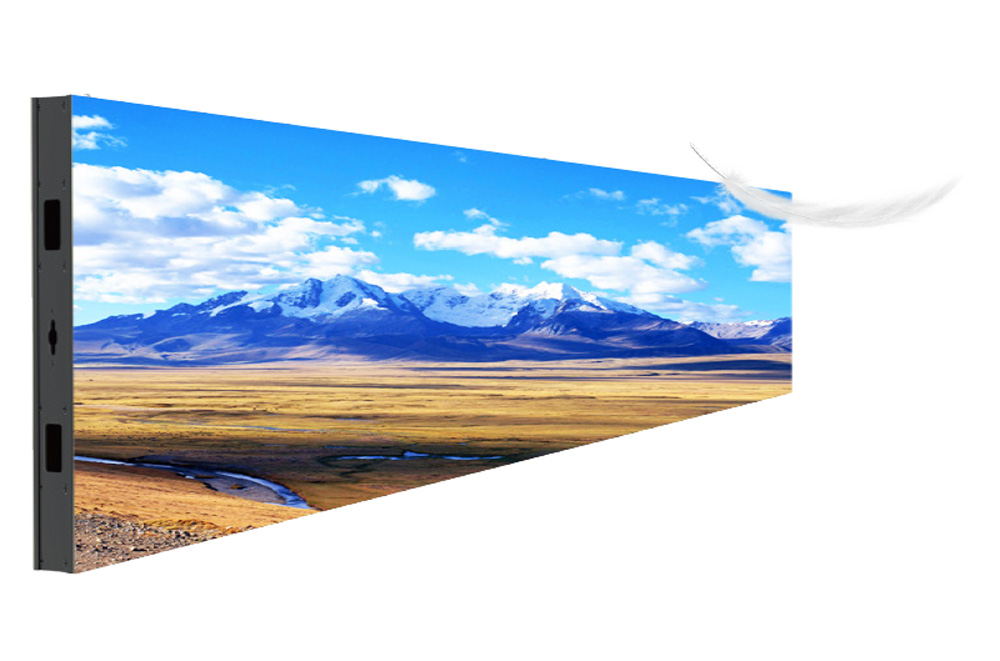

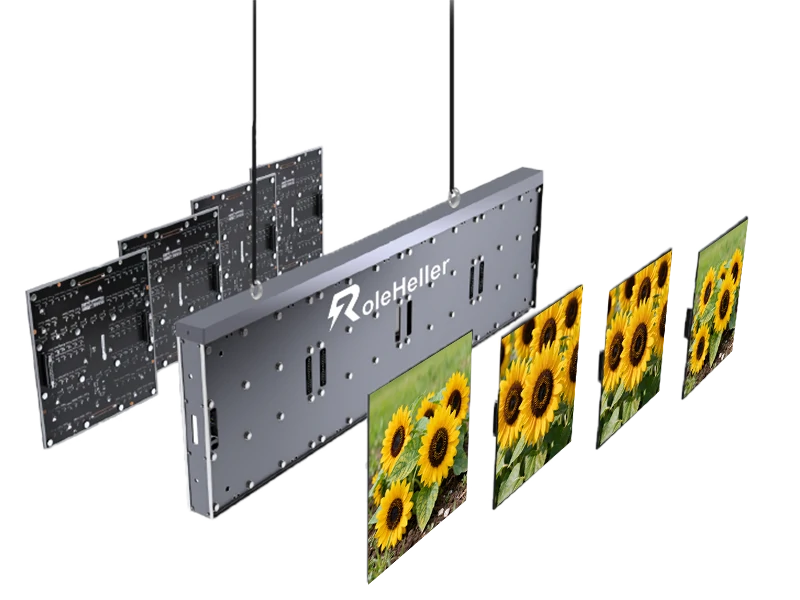

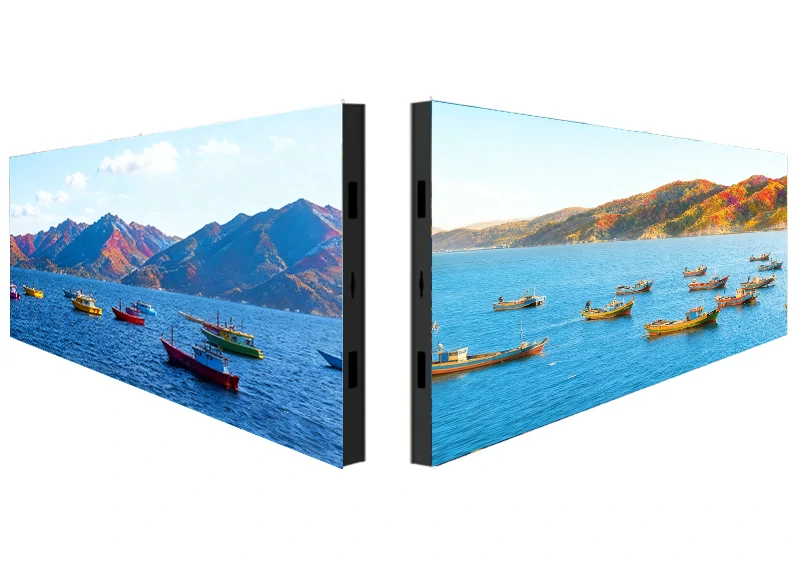

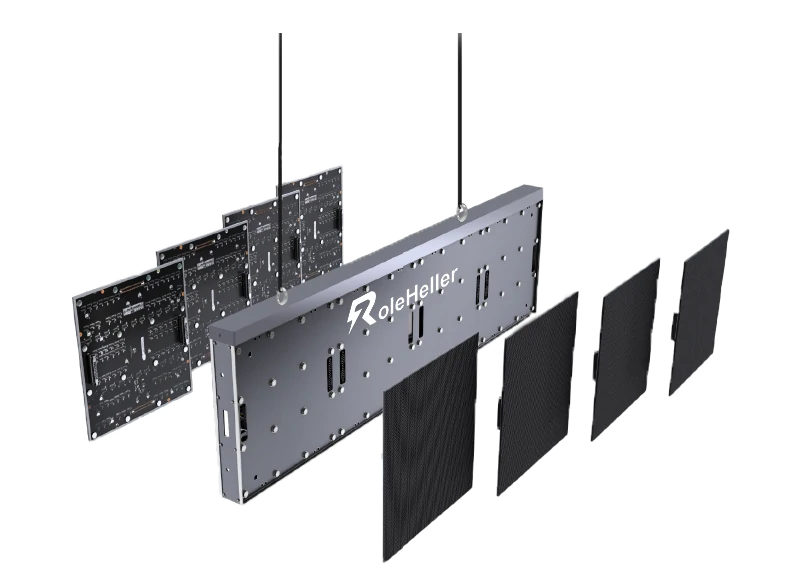

S3D Series offers ultra-thin, double-sided LED display with independent pixel pitch and brightness per side. With front maintenance, seamless splicing, and lightweight design (only 7kg), it's perfect for hanging installations in retail, transportation hubs, and other environments requiring dual-view high-impact visuals.
| Pixel Pitch | P1.25 | P1.5625 | P1.95 | P2.5 | P2.604 | P2.976 | P3.91 |
| LED type | SMD1010 GOB | SMD1212 GOB | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| Pixel density (dot/m2) | 640000 | 409600 | 262144 | 160000 | 147456 | 112896 | 65536 |
| Module resolution | 200 x 200 | 160 x 160 | 128 x 128 | 100 x 100 | 96 x 96 | 84 x 84 | 64 x 64 |
| Module size (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |

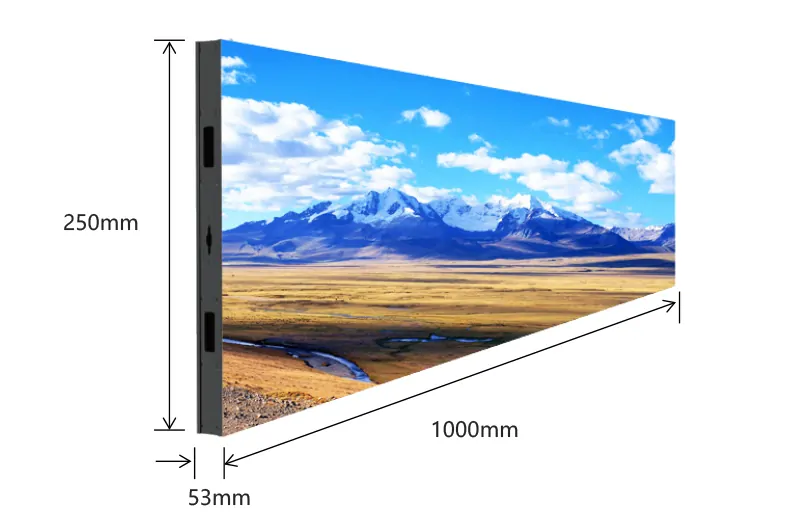

| Panel size (W x H x D/mm) | 1000x250x54 / 750x250x54 / 500x250x54 | ||||||
| Panel resolution | 800 x 200 600 x 200 400 x 200 | 640 x 160 480 x 160 320 x 160 | 512 x 128 384 x 128 256 x 128 | 400 x 100 300 x 100 200 x 100 | 384 x 96 384 x 96 192 x 96 | 336 x 84 252 x 84 168 x 84 | 256 x 64 192 x 64 128 x 64 |

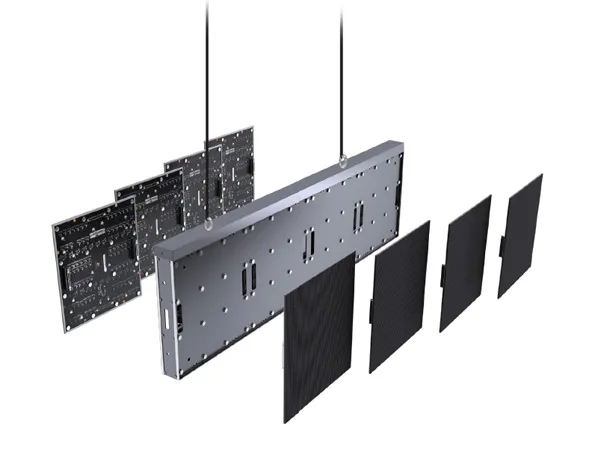

| Module QTY (W x H) | 4 x 1/ 3 x 1/ 2 x 1 | ||||||

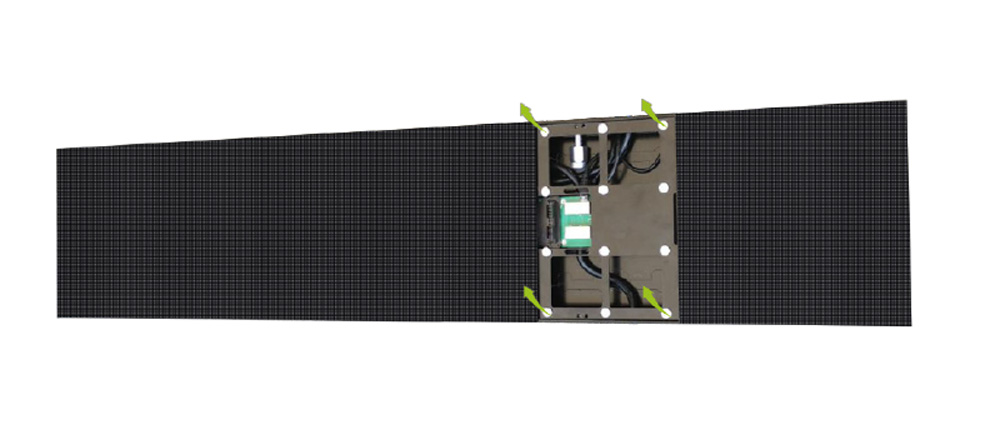

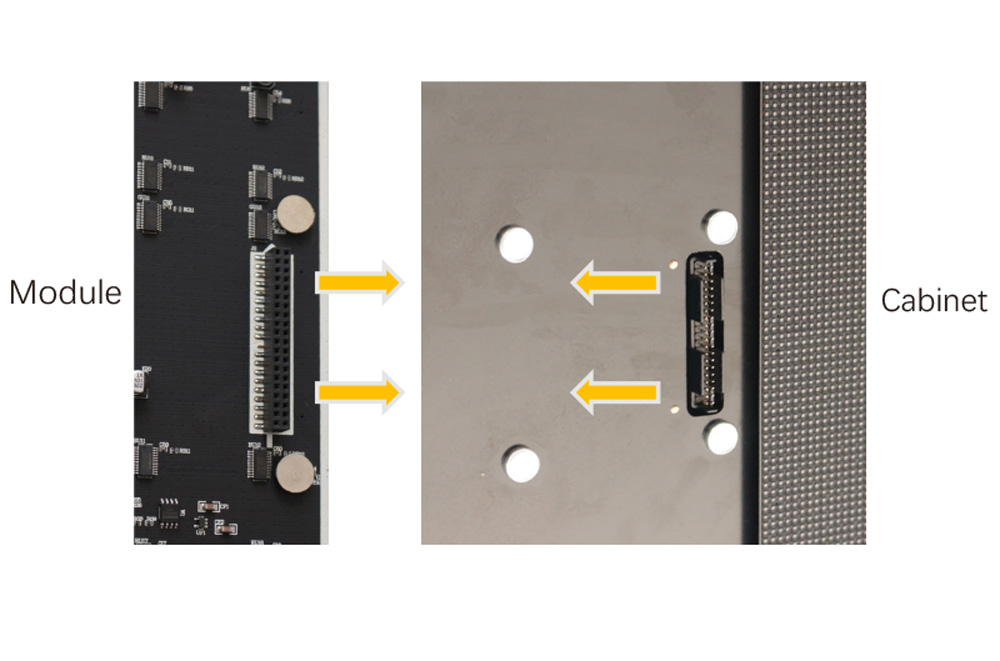

| Maintenance mode | Front | ||||||
| Cabinet material | Aluminum | ||||||
| Drive mode | 1/50 scan | 1/40 scan | 1/32 scan | 1/25 scan | 1/32 scan | 1/28 scan | 1/16 scan |
| Brightness correction | Yes | ||||||
| Brightness (Nits) | 650 | ||||||
| Color temperature | 5000 - 12000 Optional | ||||||
| Viewing angle (V/H) | 160°/160° | ||||||
| Brightness/Color uniformity | ≥97% | ||||||
| Contrast ratio | 10000:1 | ||||||
| Frame Rate | 50 / 60 | ||||||
| Grey Level | 14/16 Bit (optional) | ||||||
| Refresh rate (Hz) | 3840 | ||||||
| Max. power consumption | 650w/sqm | ||||||
| Avg. power consumption | 100-200w/sqm | ||||||
| Protection grade | IP 31 | ||||||
| Input Power | AC90-264V, 47-63Hz | ||||||
| Working Temp/Humidity | -20~60℃ / 10%~85% | ||||||
| Storage Temp/Humidity | -20~60℃ / 10%~85% | ||||||
| Cert. | CCC / CE / RoHS / FCC / CB / TUV / IEC | ||||||
