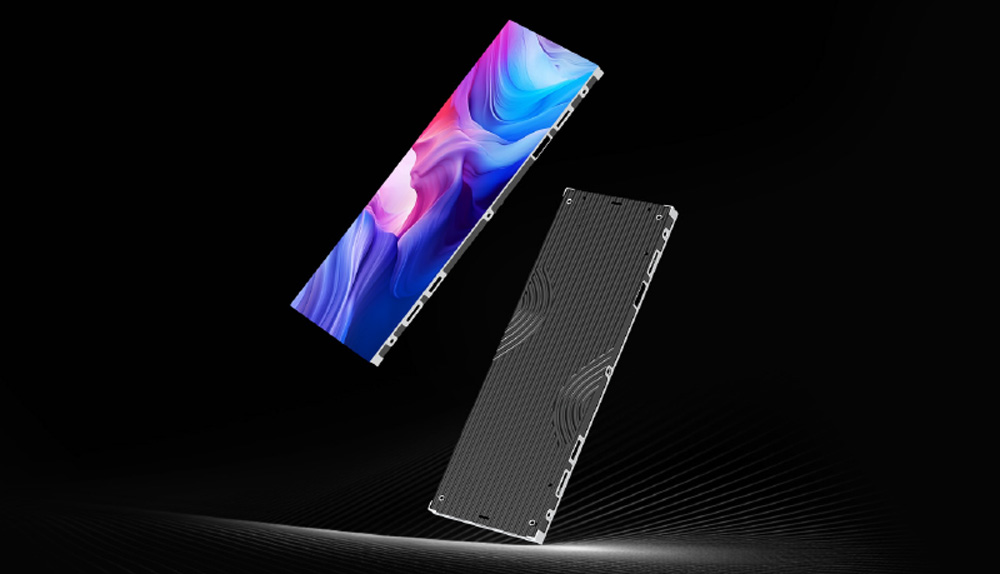

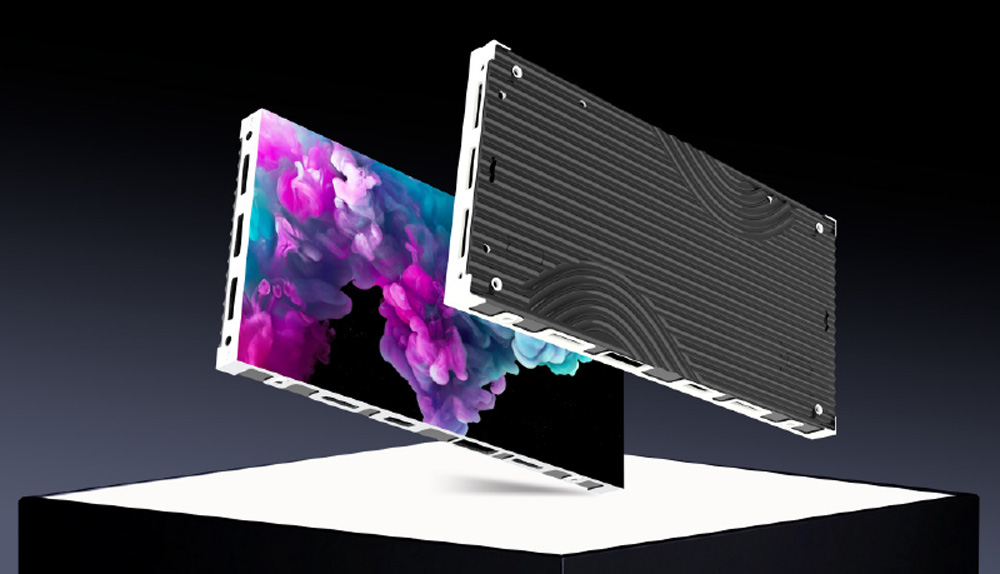

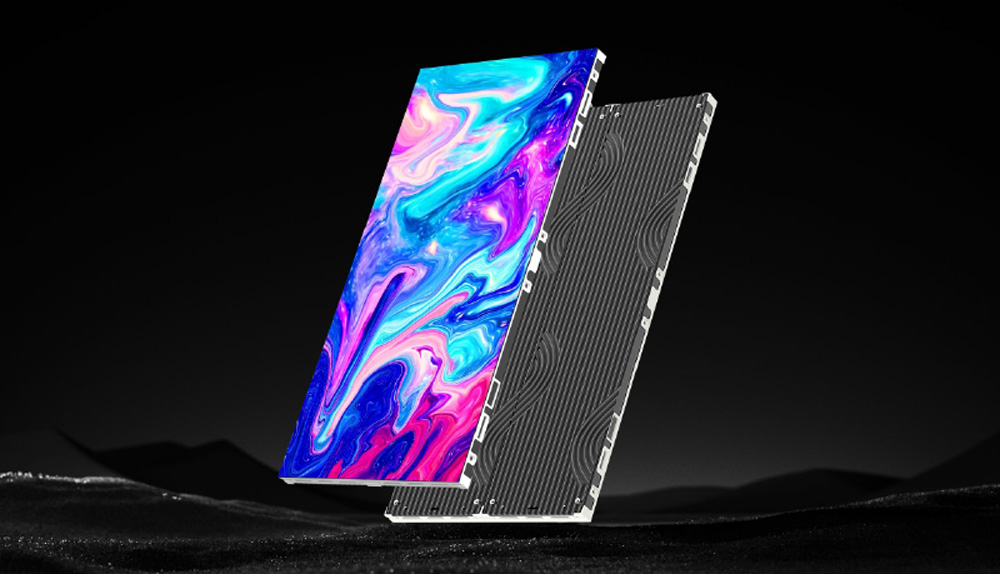

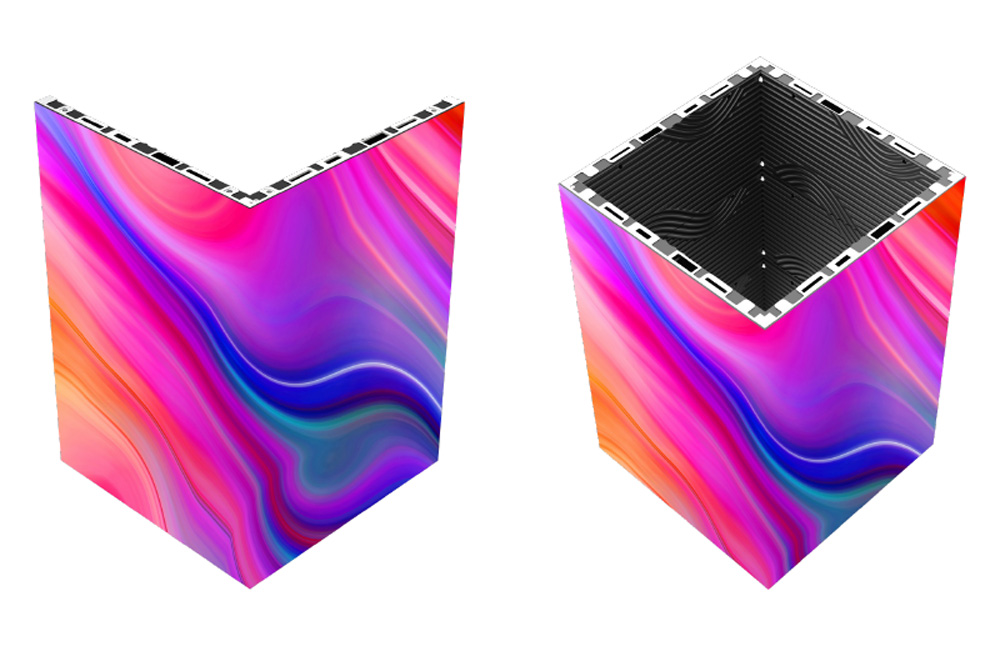

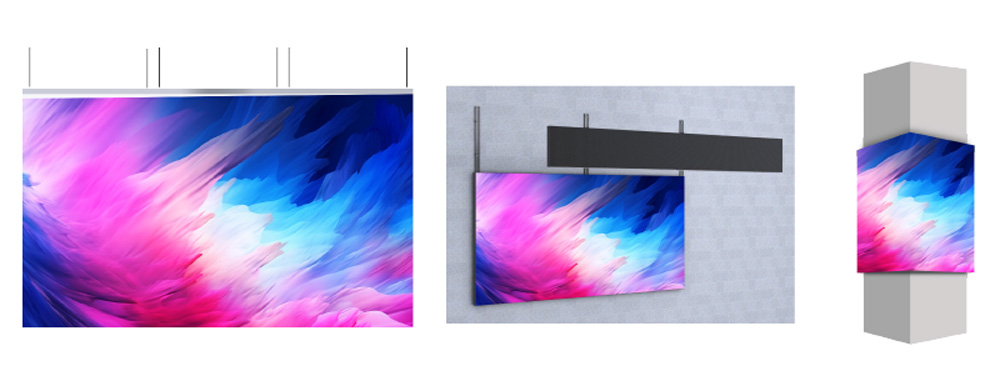

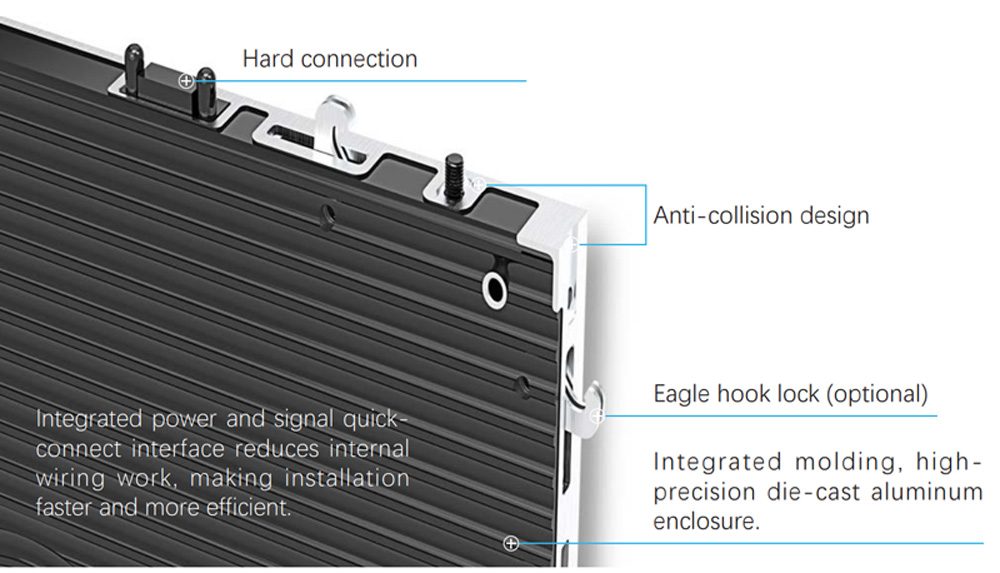

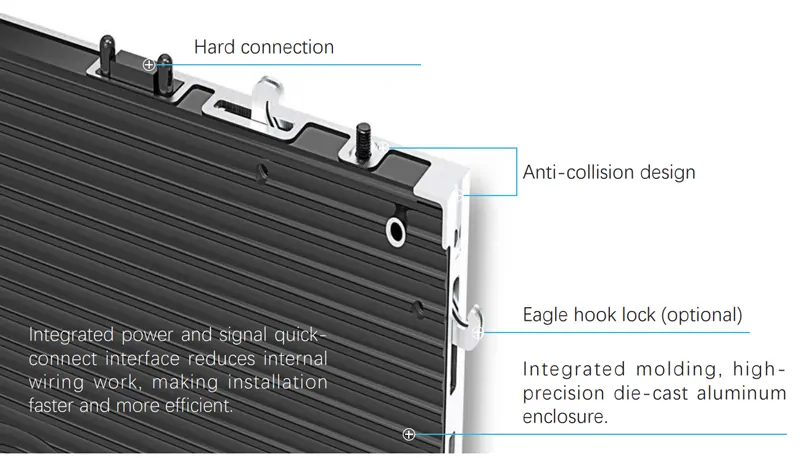

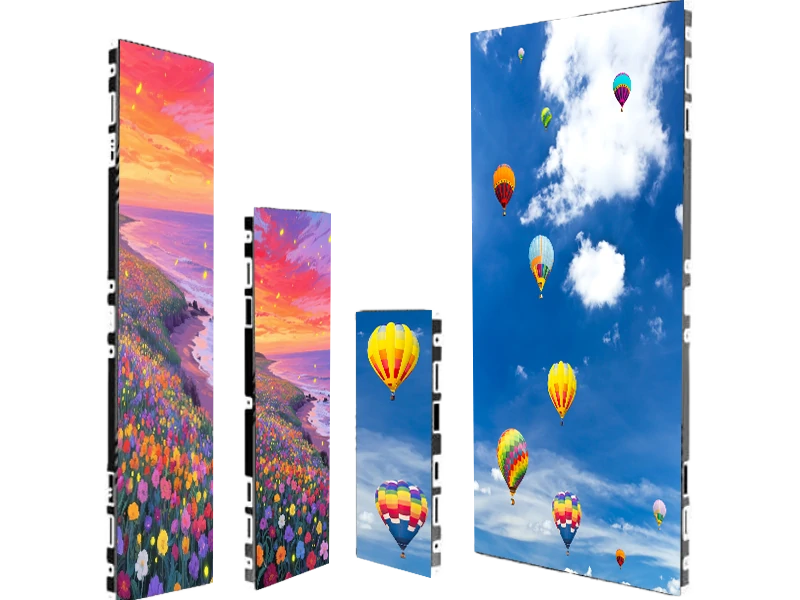

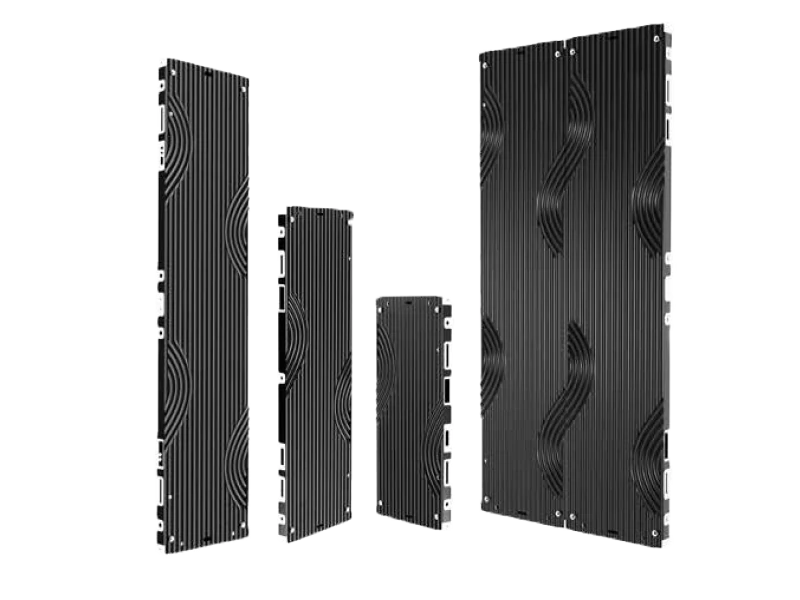

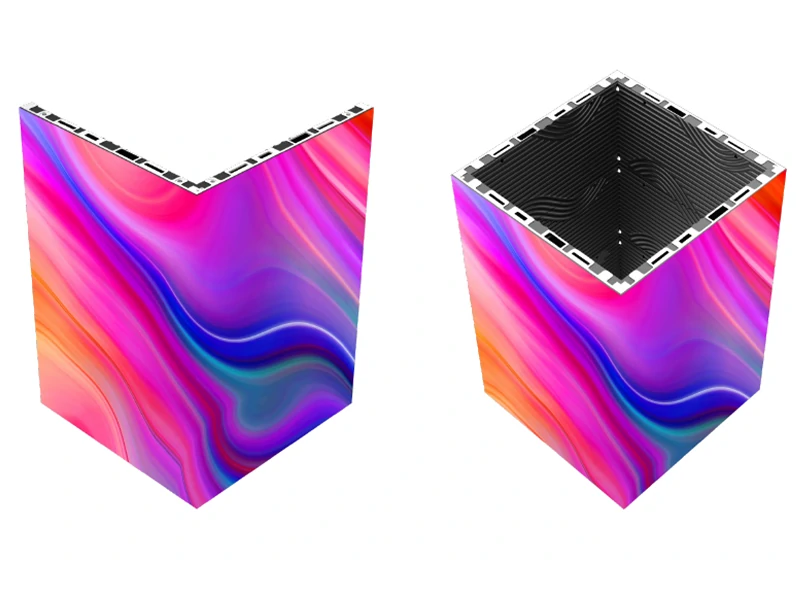

S3 Series features ultra-slim die-cast cabinets in 4 flexible sizes, enabling limitless creative combinations. With right-angle splicing, hard connection, and front maintenance, it ensures fast setup and precise alignment. Ideal for innovative indoor installations where elegant design and structural versatility matter most.
| Pixel Pitch | P1.25 | P1.5625 | P1.95 | P2.5 | P2.604 | P2.976 | P3.91 |
| LED type | SMD1010 GOB | SMD1212 GOB | SMD1515 GOB | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Pixel density (dot/m2) | 640000 | 409600 | 262144 | 160000 | 147456 | 112896 | 65536 |
| Module resolution | 200 x 200 | 160 x 160 | 128 x 128 | 100 x 100 | 96 x 96 | 84 x 84 | 64 x 64 |
| Module size (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |

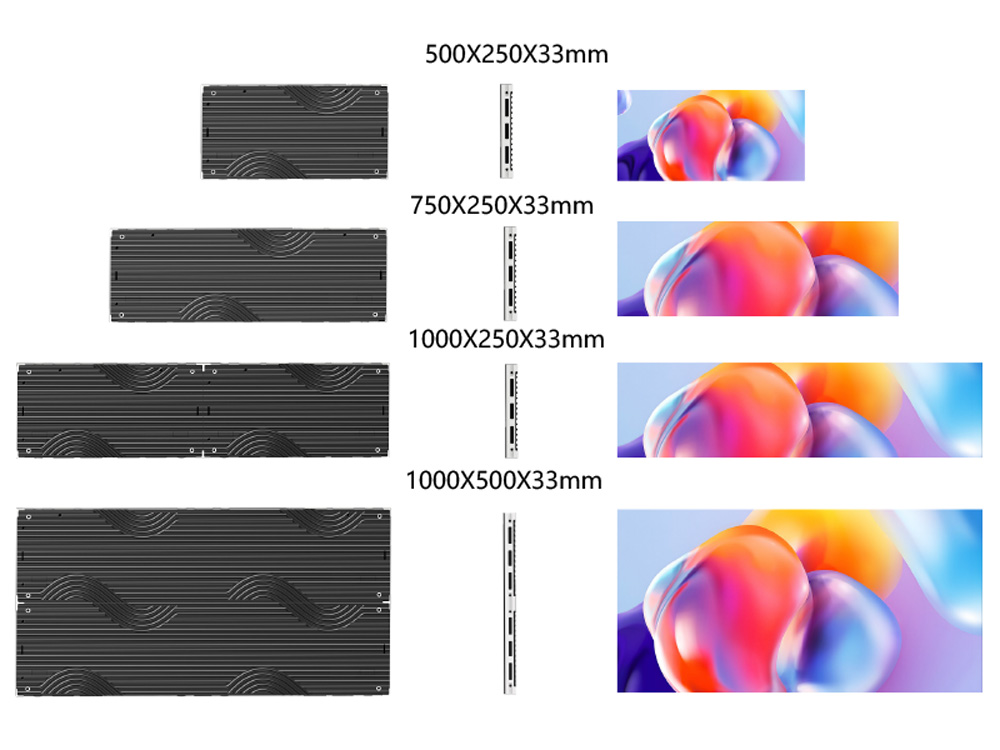

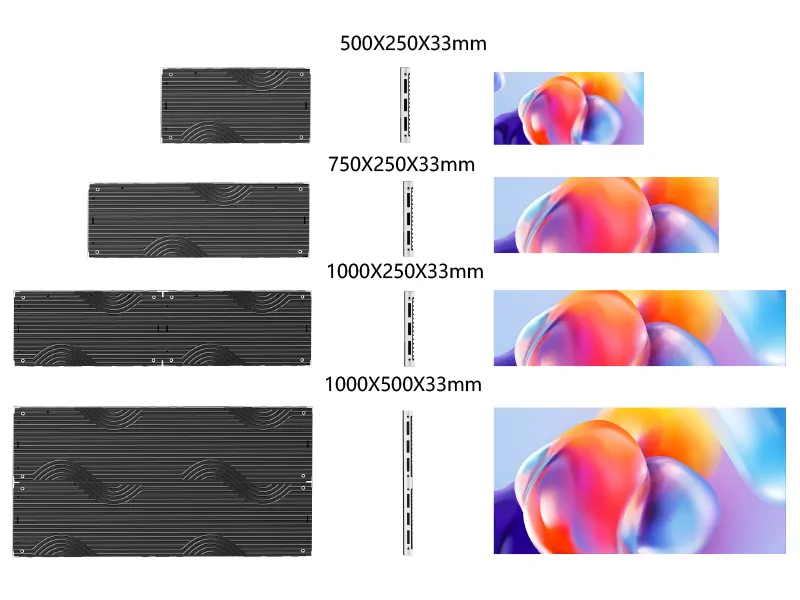

| Panel size (W x H x D/mm) | 1000x500x33 / 1000x250x33 / 750x250x33 / 500x250x33 | ||||||
| Panel resolution | 800 x 400 800 x 200 600 x 200 400 x 200 | 640 x 320 640 x 160 480 x 160 320 x 160 | 512 x 256 512 x 128 384 x 128 256 x 128 | 400 x 200 400 x 100 300 x 100 200 x 100 | 384 x 192 384 x 96 384 x 96 192 x 96 | 336 x 168 336 x 84 252 x 84 168 x 84 | 256 x 128 256 x 64 192 x 64 128 x 64 |
| Module QTY (W x H) | 4 x 2/ 4 x 1/ 3 x 1/ 2 x 1 | ||||||

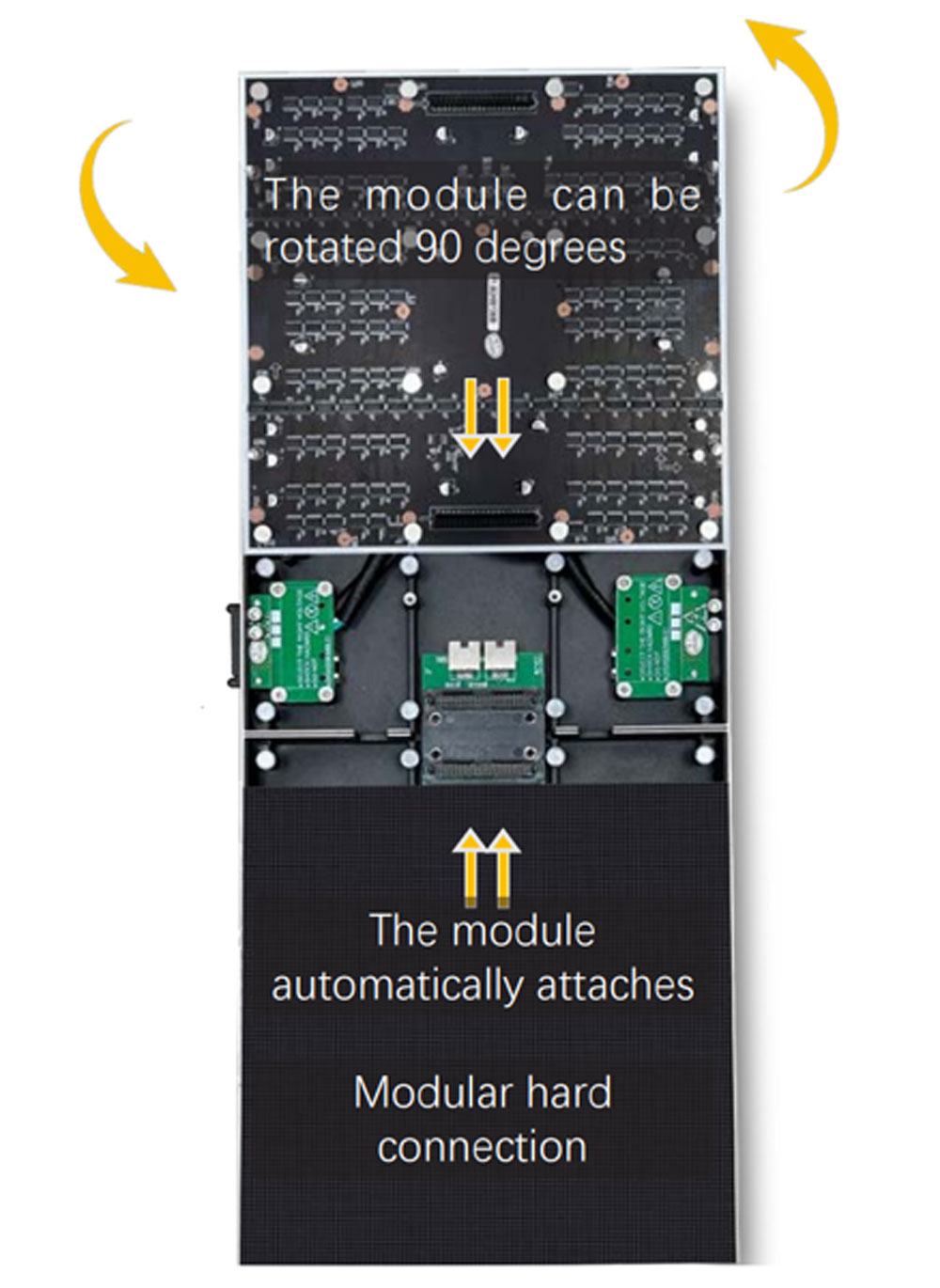

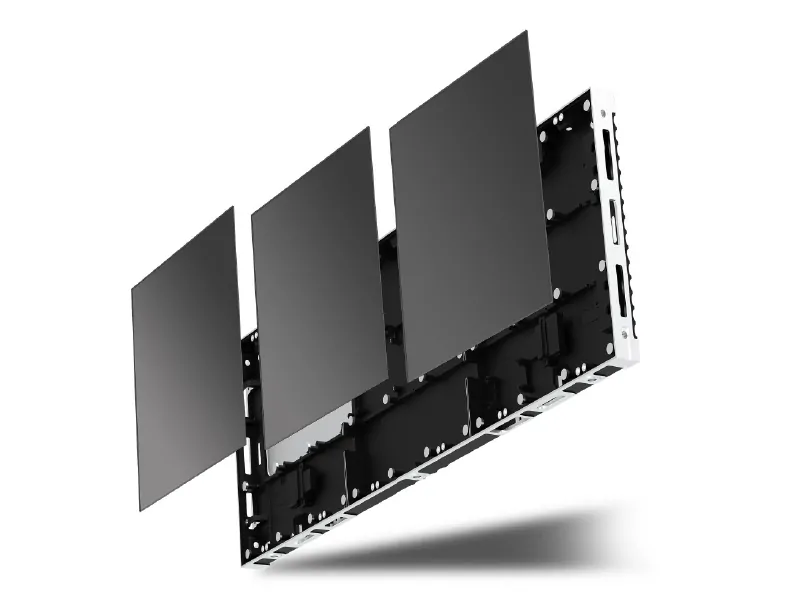

| Maintenance mode | Front | ||||||
| Cabinet material | Die-casting aluminum | ||||||
| Drive mode | 1/50 scan | 1/40 scan | 1/32 scan | 1/25 scan | 1/32 scan | 1/28 scan | 1/16 scan |
| Brightness correction | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Brightness (Nits) | 600 | 600 | 800 | 800 | 800 | 800 | 800 |
| Color temperature | 5000 - 12000 Optional | ||||||
| Viewing angle (V/H) | 160°/160° | ||||||
| Brightness/Color uniformity | ≥97% | ||||||
| Contrast ratio | 10000:1 | ||||||
| Frame Rate | 50 / 60 | ||||||
| Grey Level | 14/ 16 Bit Optional | ||||||
| Refresh rate (Hz) | 3840 | ||||||
| Max. power consumption | 350w/sqm | ||||||
| Avg. power consumption | 100-200w/sqm | ||||||
| Protection grade | IP 31 | ||||||
| Input Power | AC90-264V, 47-63Hz | ||||||
| Working Temp/Humidity | -20~60℃ / 10%~85% | ||||||
| Storage Temp/Humidity | -20~60℃ / 10%~85% | ||||||
| Cert. | CCC / CE / RoHS / FCC / CB / TUV / IEC | ||||||
