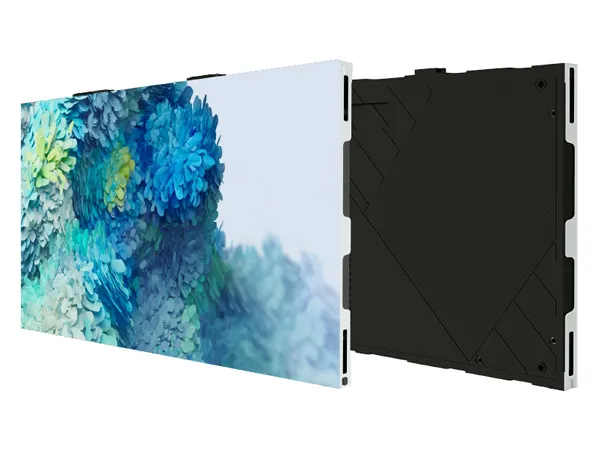

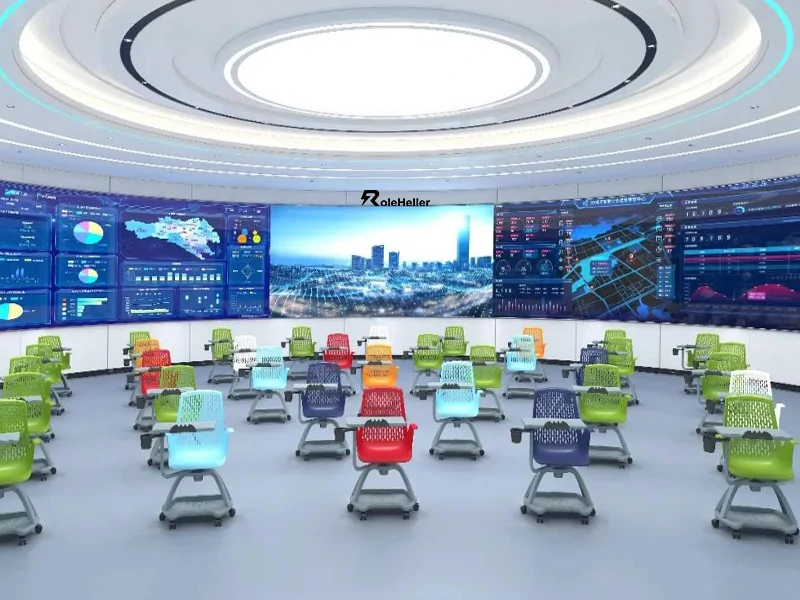

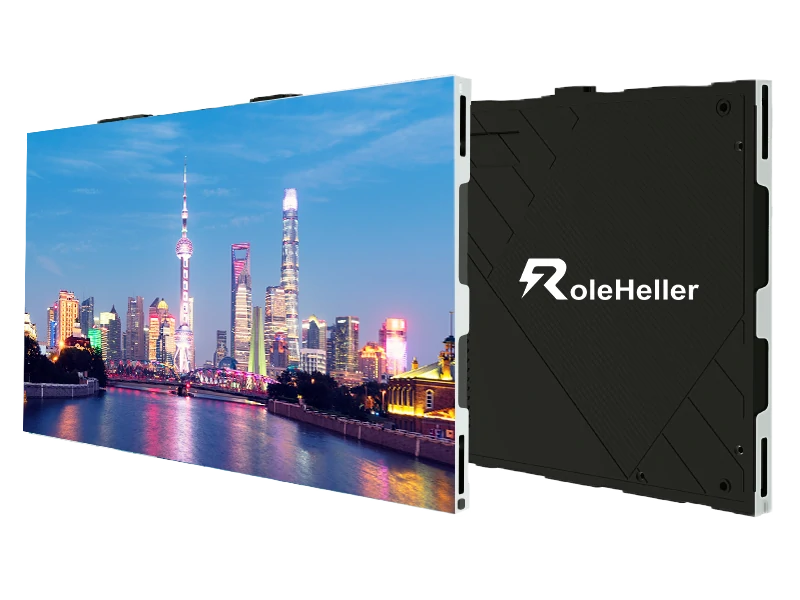

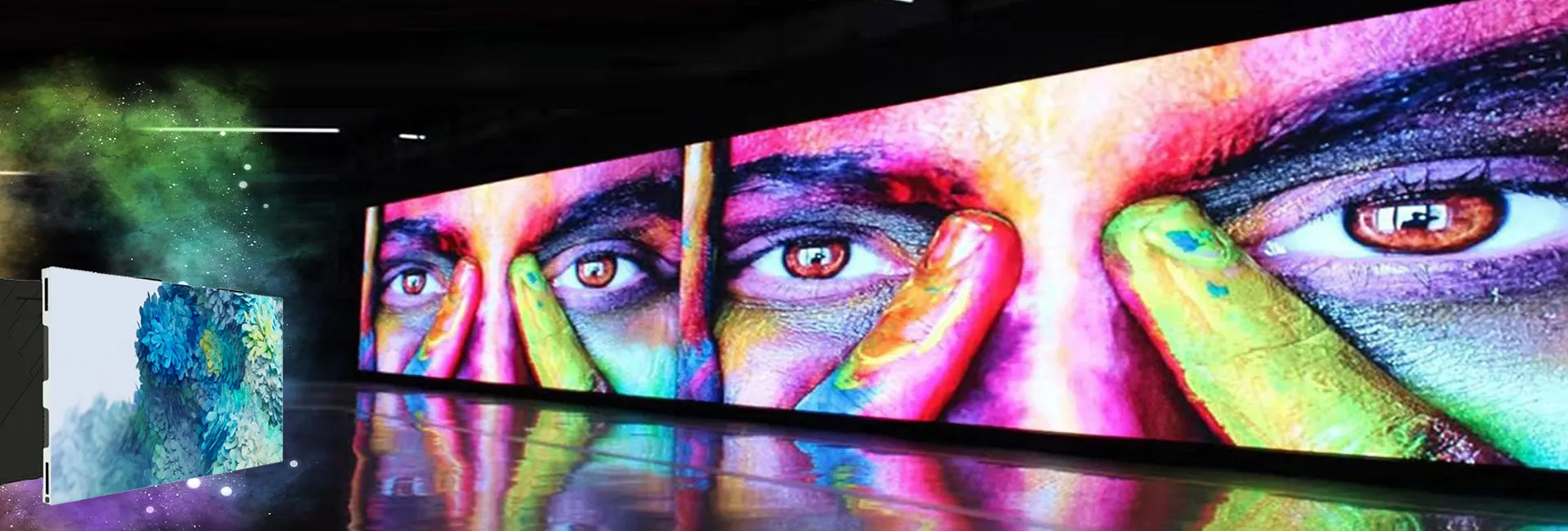

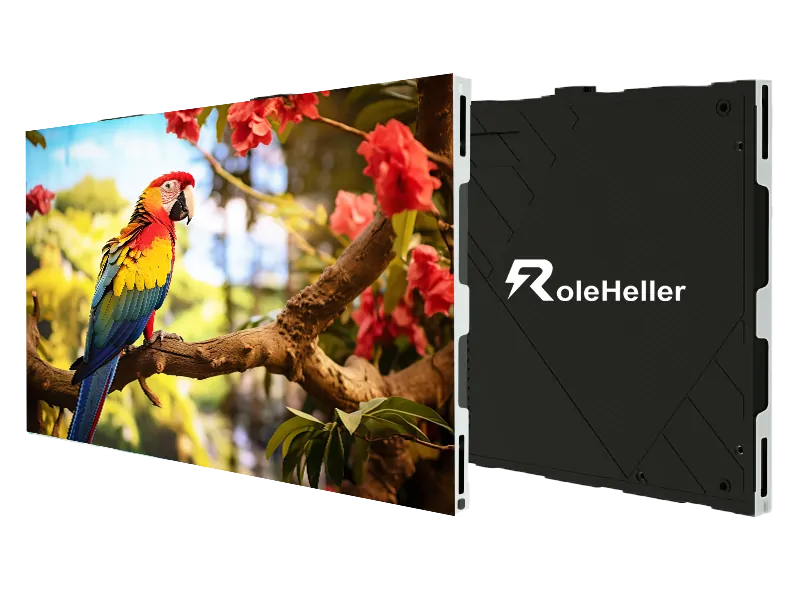

LED video panels X3 SERIES LED Displays features a slim, lightweight design with high refresh rate and superior grayscale performance. With vivid color reproduction and a 170° wide viewing angle, it ensures immersive indoor visuals. Front maintenance and versatile installation options make it perfect for retail, conference, and exhibition spaces.
| Pixel Pitch | P1.25 | P1.56 | P1.875 | P2.5 |
| LED type | SMD1010/GOB | SMD1010/1212/GOB | SMD1010/1515/GOB | SMD1515/GOB |
| Pixel density (dot/m2) | 640000 | 409600 | 284444 | 160000 |
| Module resolution | 240 x 135 | 192 x 108 | 160 x 90 | 60 x 135 |
| Module size (mm) | 300 x 168.75 | 300 x 168.75 | 300 x 168.75 | 150 x 337.5 |

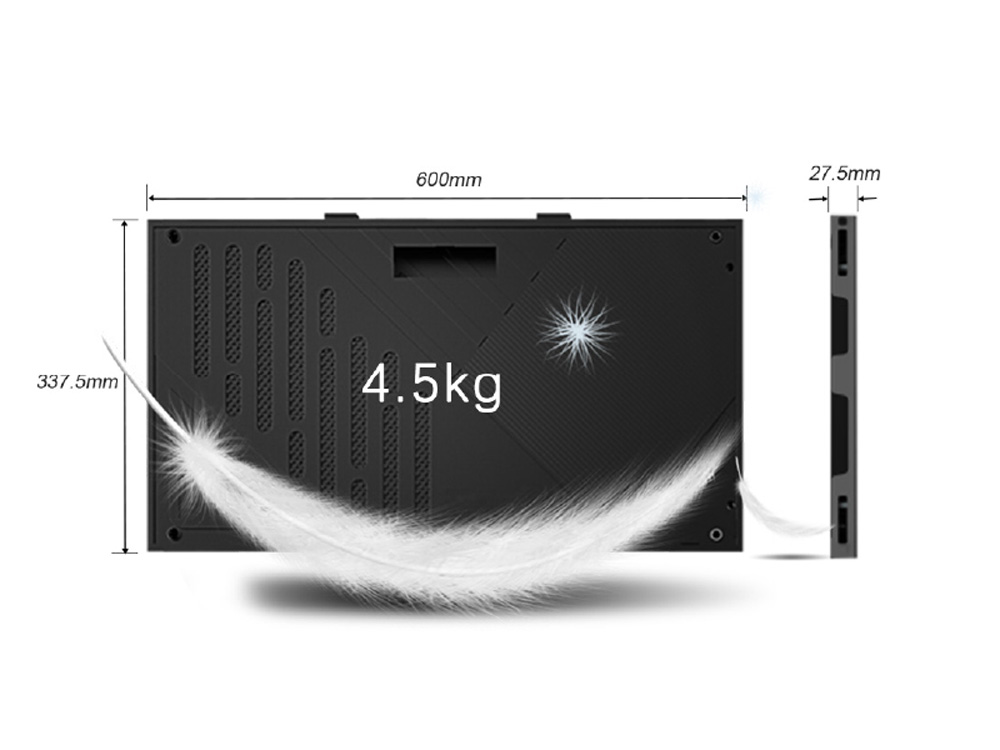

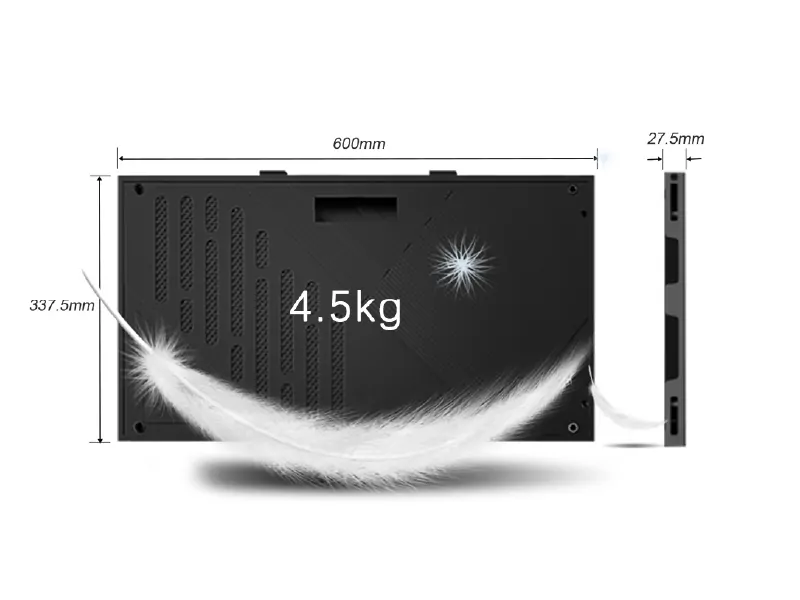

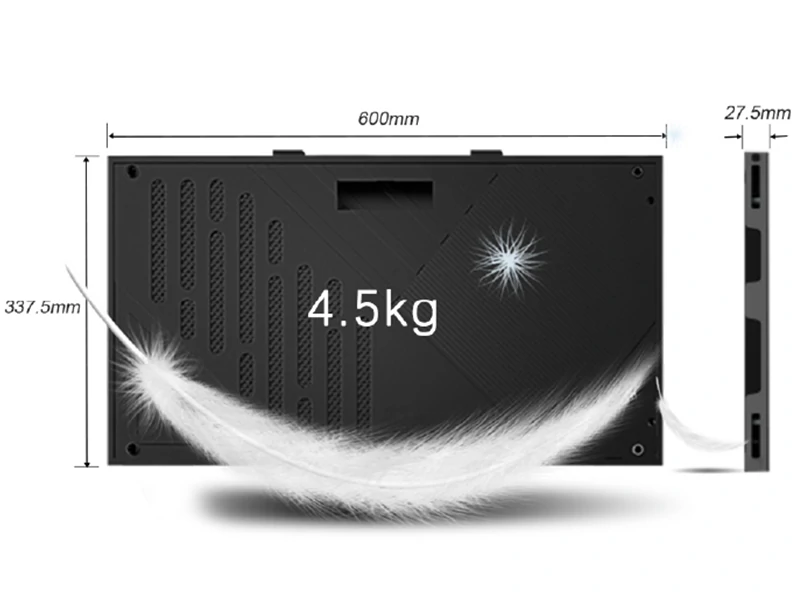

| Panel size (W x H x D/mm) | 600 x 337.5 x 27.5 | |||
| Panel resolution | 480 x 270 | 384 x 216 | 320 x 180 | 240 x 135 |
| Module QTY (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 4 x 1 |
| Cabinet weight | 4.5 kg | 4.5 kg | 4.5 kg | 4.5 kg |
| Drive mode | 1/45 scan | 1/48 scan | 1/45 scan | 1/30 scan |
| Maintenance mode | Front | Front | Front | Front |
| Cabinet material | Die-casting aluminum | |||
| Brightness correction | Yes | |||
| Brightness (Nits) | ≥600 | |||
| Color temperature | 5000 - 12000 Optional | |||
| Viewing angle (V/H) | 170°/170° | |||
| Brightness/Color uniformity | ≥99.8% | |||
| Contrast ratio | 10000:1 | |||
| Frame Rate | 50 / 60 | |||
| Grey Level | 16 Bit | |||
| Refresh rate (Hz) | 3840 | |||
| Max. power consumption | 350w/sqm | |||
| Avg. power consumption | 100w/sqm | |||
| Protection grade | IP 31 | |||
| Input Power | AC90-264V, 47-63Hz | |||
| Working Temp/Humidity | -20~60℃ / 10%~85% | |||
| Storage Temp/Humidity | -20~60℃ / 10%~85% | |||
| Cert. | CCC / CE / RoHS / FCC / CB / TUV / IEC | |||
