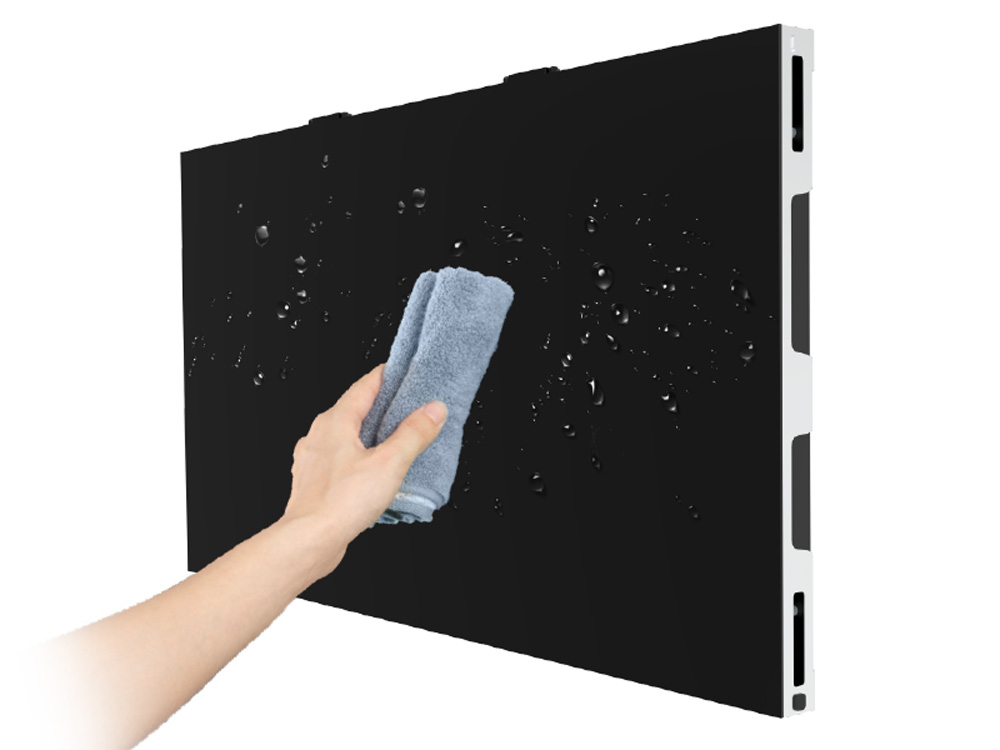

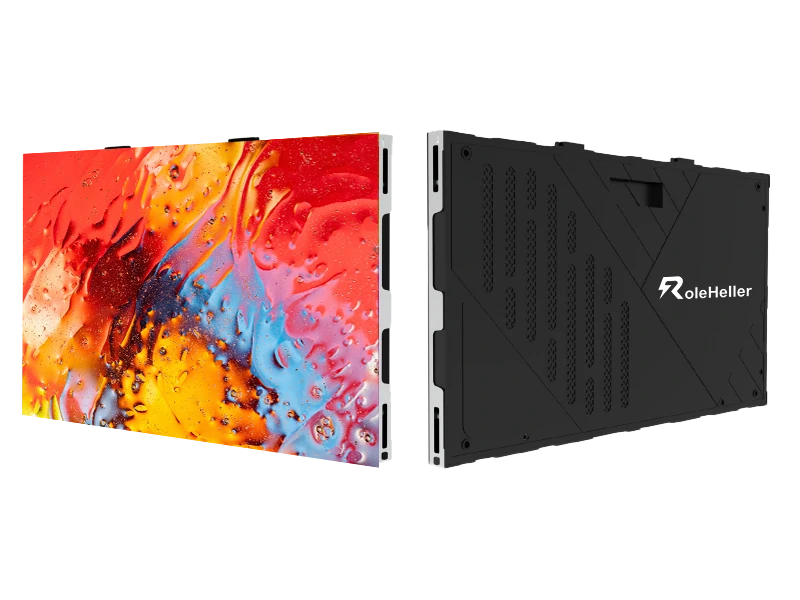

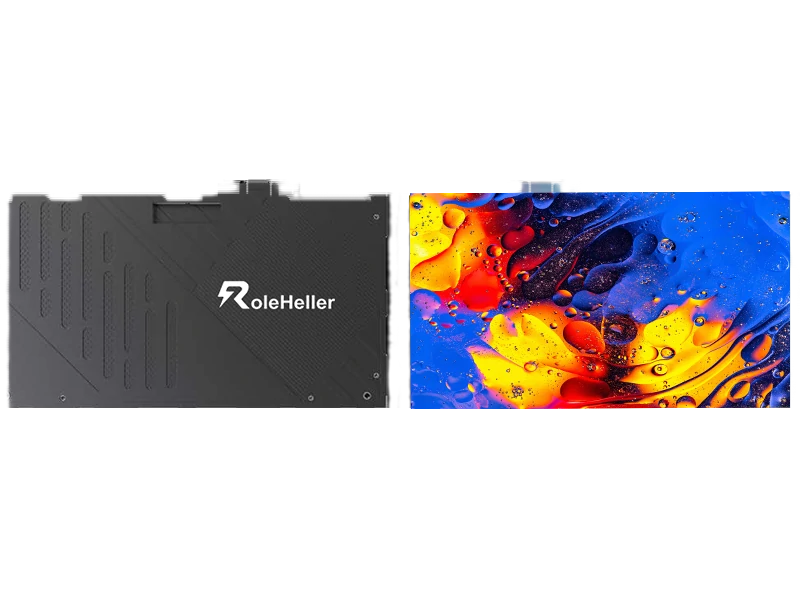

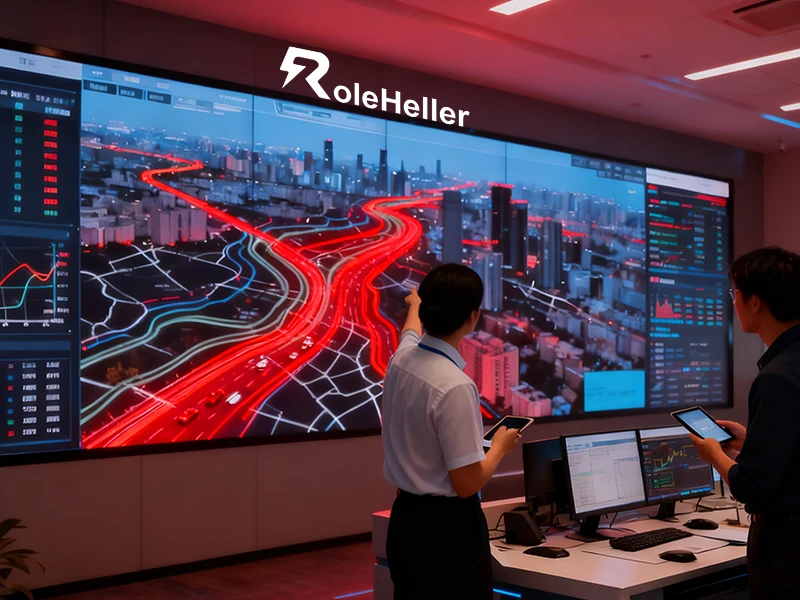

S2 COB Series redefines indoor displays with ultra-fine pixel pitch and chip-on-board packaging. Enjoy smoother visuals, enhanced durability (IP-rated waterproof and dustproof), and ultra-thin design. Perfect for close-range viewing in premium indoor environments like command centers, museums, or luxury retail spaces.
| Pixel Pitch | P0.625 | P0.78 | P0.9375 | P1.25 | P1.56 | P1.875 |
| LED type | COB | COB | COB | COB | COB | COB |
| Pixel density (dot/m2) | 2560000 | 1638400 | 1137778 | 640000 | 409600 | 284444 |
| Module resolution | 240 x 270 | 192 x 216 | 160 x 180 | 120 x 135 | 96 x 108 | 80 x 90 |
| Module size (mm) | 150 x 168.75 | 150 x 168.75 | 150 x 168.75 | 150 x 168.75 | 150 x 168.75 | 150 x 168.75 |

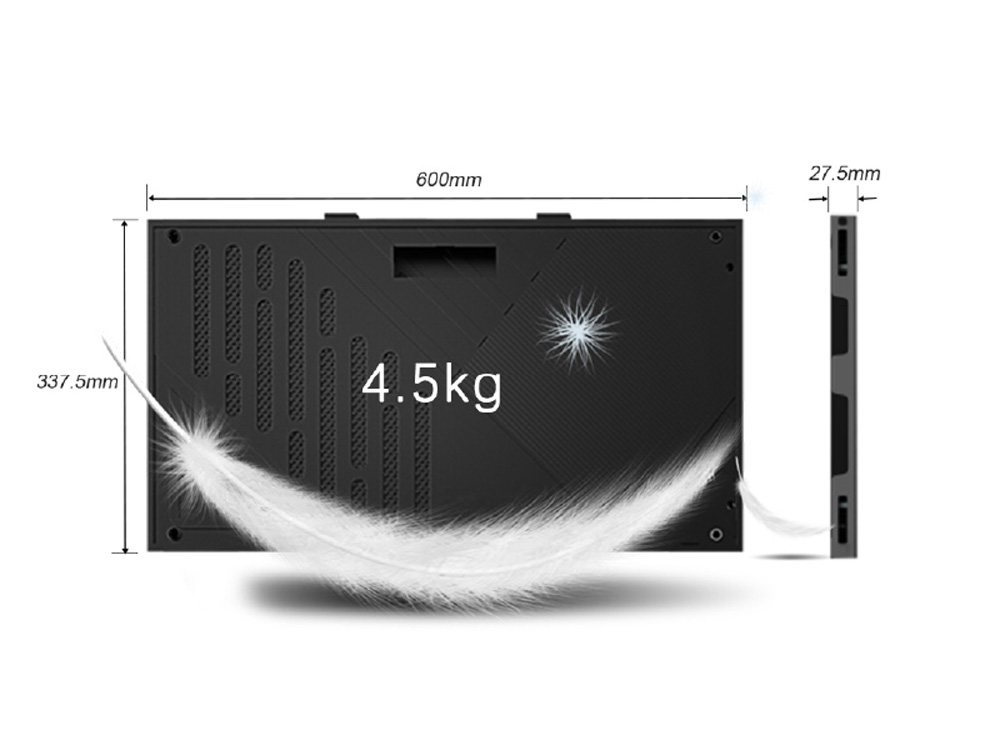

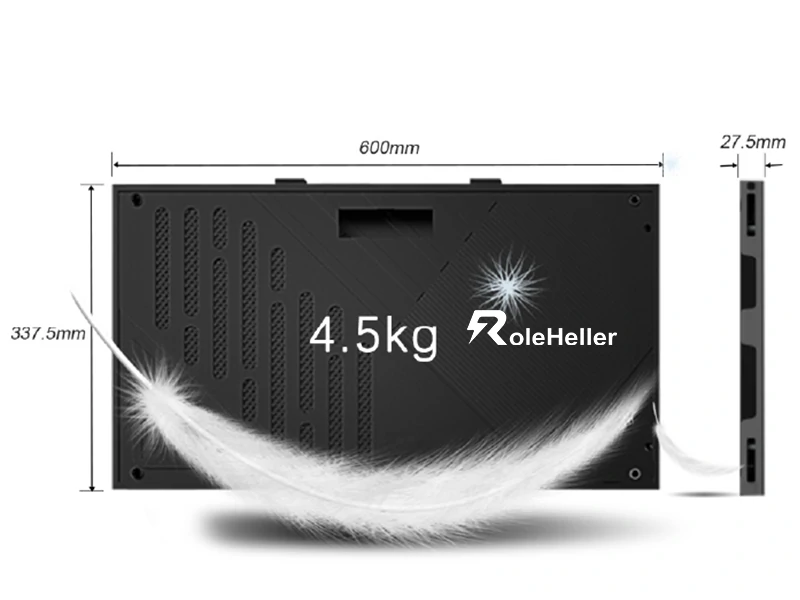

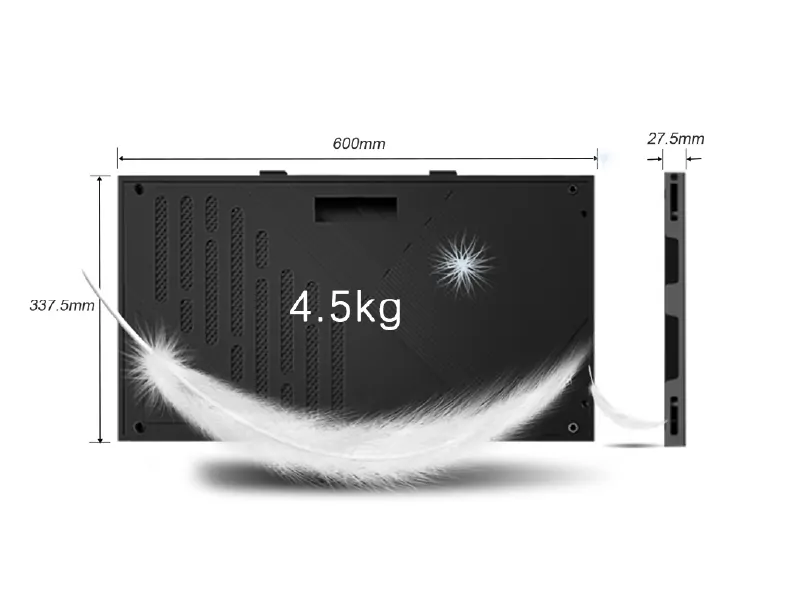

| Panel size (W x H x D/mm) | 600 x 337.5 x 27.5 | |||||
| Panel resolution | 960 x 540 | 768 x 432 | 640 x 360 | 480 x 270 | 384 x 216 | 320 x 180 |
| Module QTY (W x H) | 4 x 2 | 4 x 2 | 4 x 2 | 4 x 2 | 4 x 2 | 4 x 2 |
| Cabinet weight | 4.5 kg | 4.5 kg | 4.5 kg | 4.5 kg | 4.5 kg | 4.5 kg |
| Drive mode | 1/64 scan | 1/64 scan | 1/60 scan | 1/60 scan | 1/54 scan | 1/45 scan |
| Maintenance mode | Front | Front | Front | Front | Front | Front |

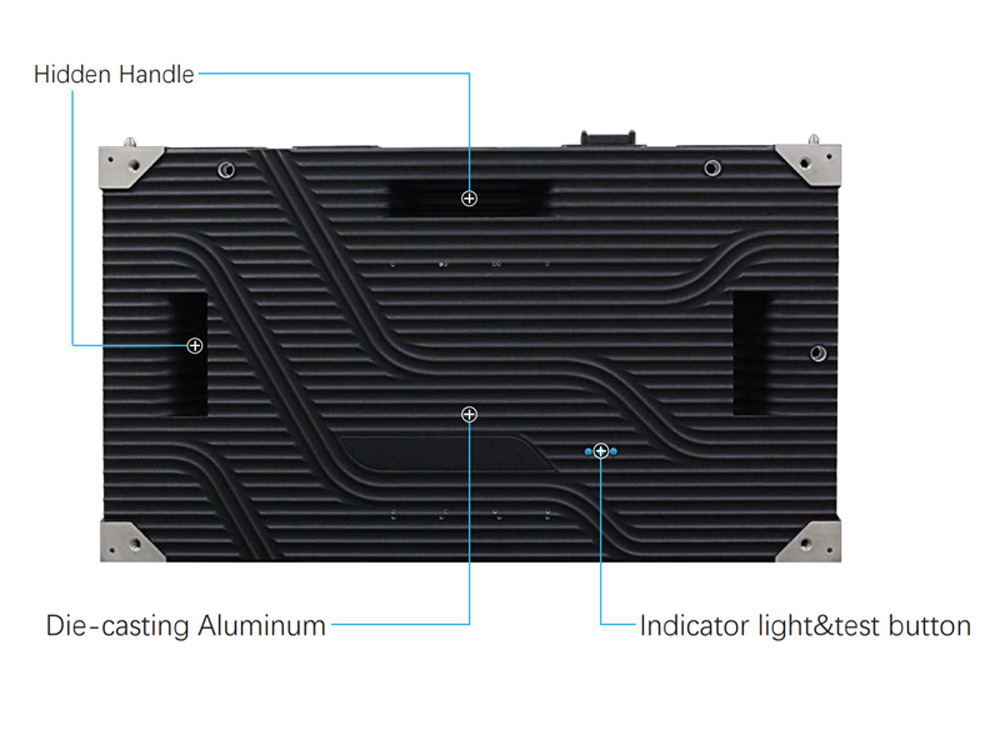

| Cabinet material | Die-casting aluminum | |||||
| Brightness correction | Yes | |||||
| Brightness (Nits) | ≥600 | |||||
| Color temperature | 5000 - 12000 Optional | |||||
| Viewing angle (V/H) | 170°/170° | |||||
| Brightness/Color uniformity | ≥99.8% | |||||
| Contrast ratio | 10000:1 | |||||
| Frame Rate | 50 / 60 | |||||
| Grey Level | 16 Bit | |||||
| Refresh rate (Hz) | 3840 | |||||
| Max. power consumption | 420w/sqm | |||||
| Avg. power consumption | 80-150w/sqm | |||||
| Protection grade | IP 31 | |||||
| Input Power | AC90-264V, 47-63Hz | |||||
| Working Temp/Humidity | -20~60℃ / 10%~85% | |||||
| Storage Temp/Humidity | -20~60℃ / 10%~85% | |||||
| Cert. | CCC / CE / RoHS / FCC / CB / TUV / IEC | |||||
