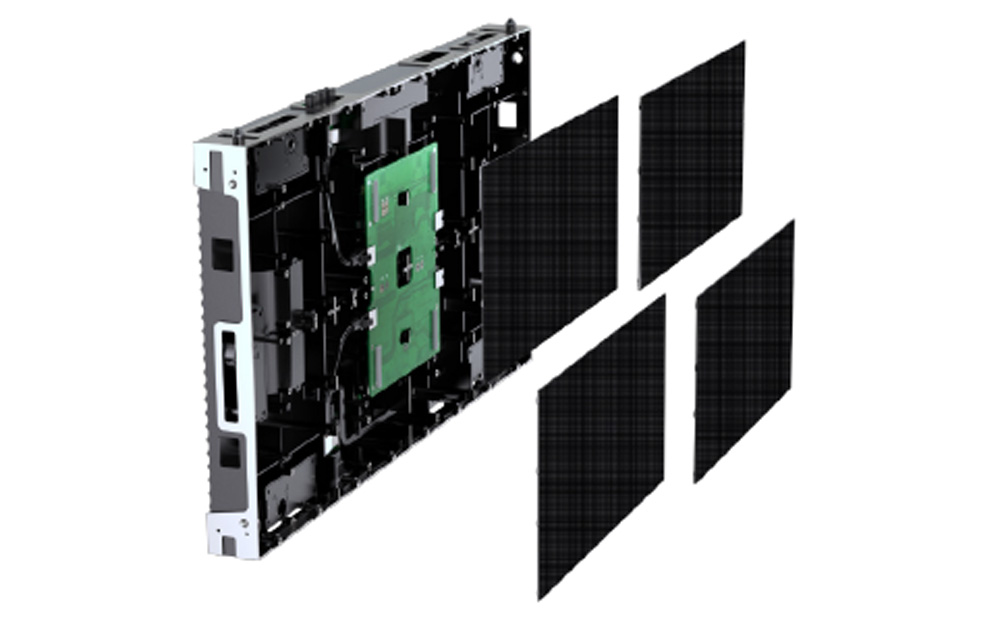

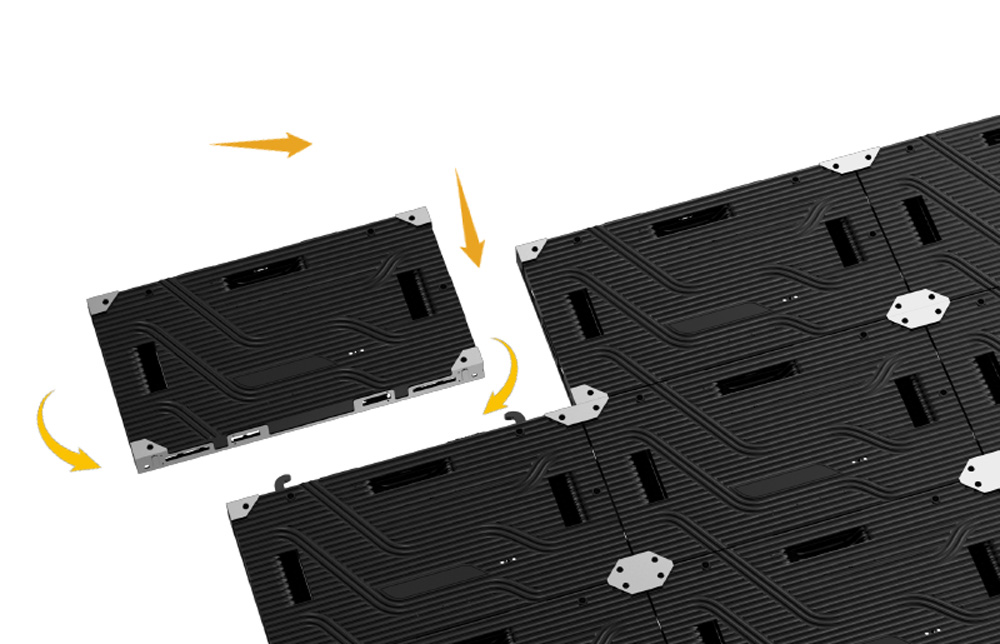

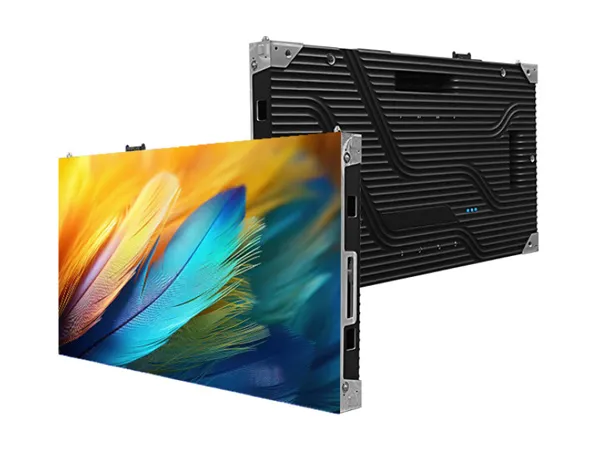

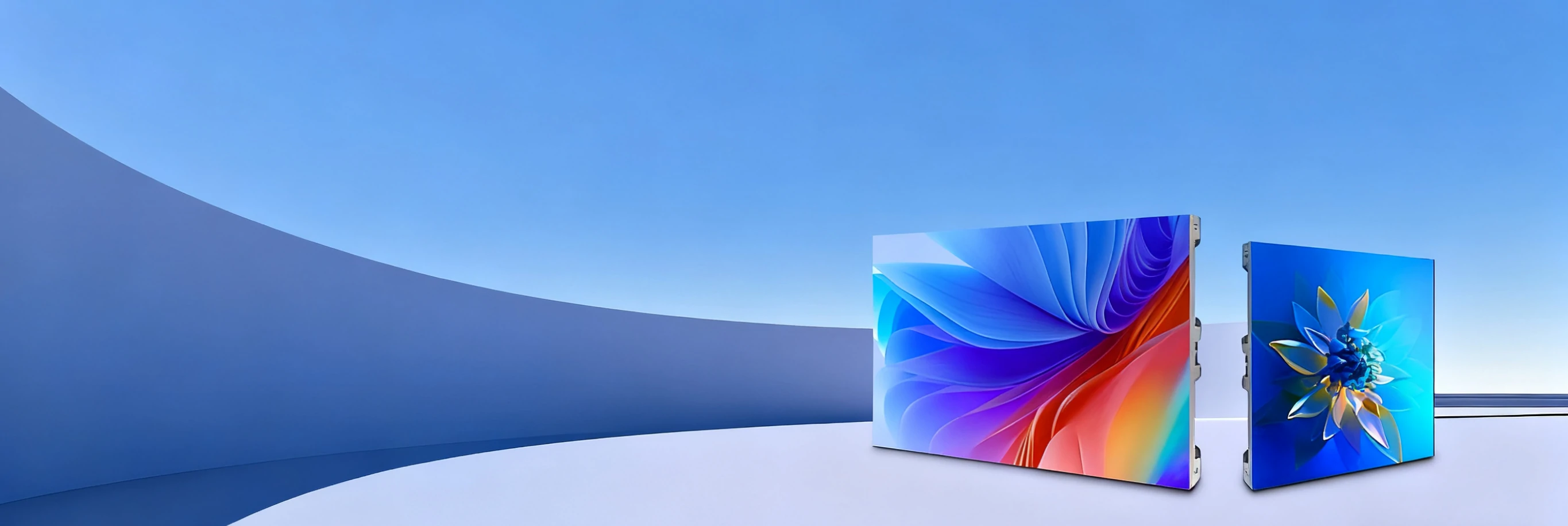

S1 Series delivers premium indoor visuals with high refresh rate, wide color gamut, HDR imaging, and seamless splicing. Its ultra-thin die-cast aluminum cabinet ensures precision and durability. With front maintenance and dual backup system, it's ideal for conference rooms, control centers, and upscale commercial displays.
| Pixel Pitch | P0.9375 | P1.25 | P1.56 | P1.875 | P2.5 |
| LED type | Mini4-in-1 | SMD1010 | SMD1010/1212 | SMD1010/1515 | SMD1515 |
| Pixel density (dot/m2) | 1137778 | 640000 | 409600 | 284444 | 160000 |
| Module resolution | 320 x 180 | 240 x 135 | 192 x 108 | 160 x 90 | 60 x 135 |
| Module size (mm) | 300 x 168.75 | 300 x 168.75 | 300 x 168.75 | 300 x 168.75 | 150 x 337.5 |

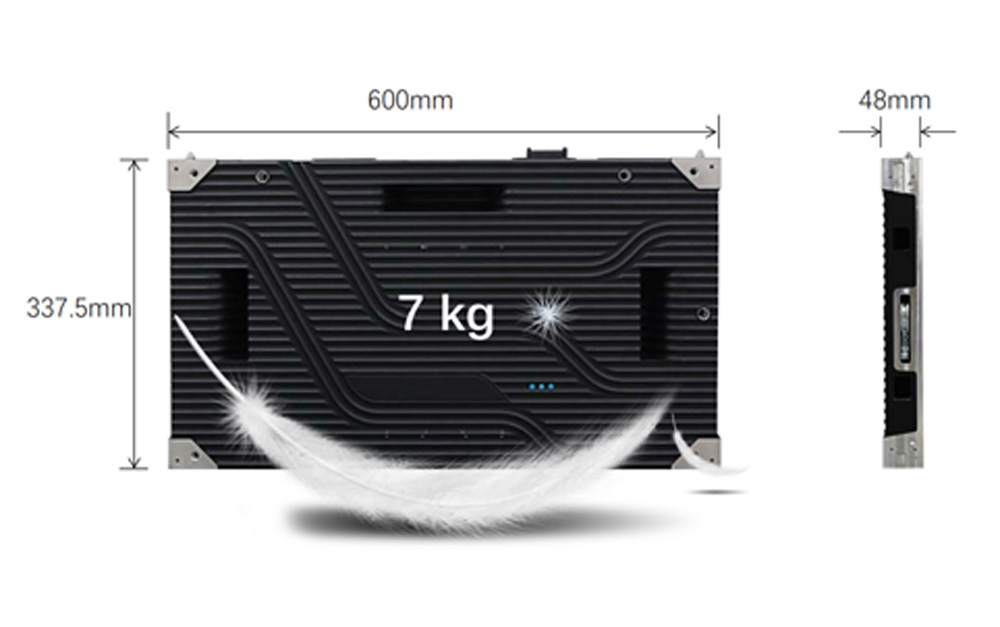

| Panel size (W x H x D/mm) | 600 x 337.5 x 48 | ||||
| Panel resolution | 640 x 360 | 480 x 270 | 384 x 216 | 320 x 180 | 240 x 135 |
| Module QTY (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 | 4 x 1 |
| Cabinet weight | 7 kg | 7 kg | 7 kg | 7 kg | 7 kg |
| Drive mode | 1/60 scan | 1/45 scan | 1/48 scan | 1/45 scan | 1/30 scan |
| Maintenance mode | Front | Front | Front | Front | Front |

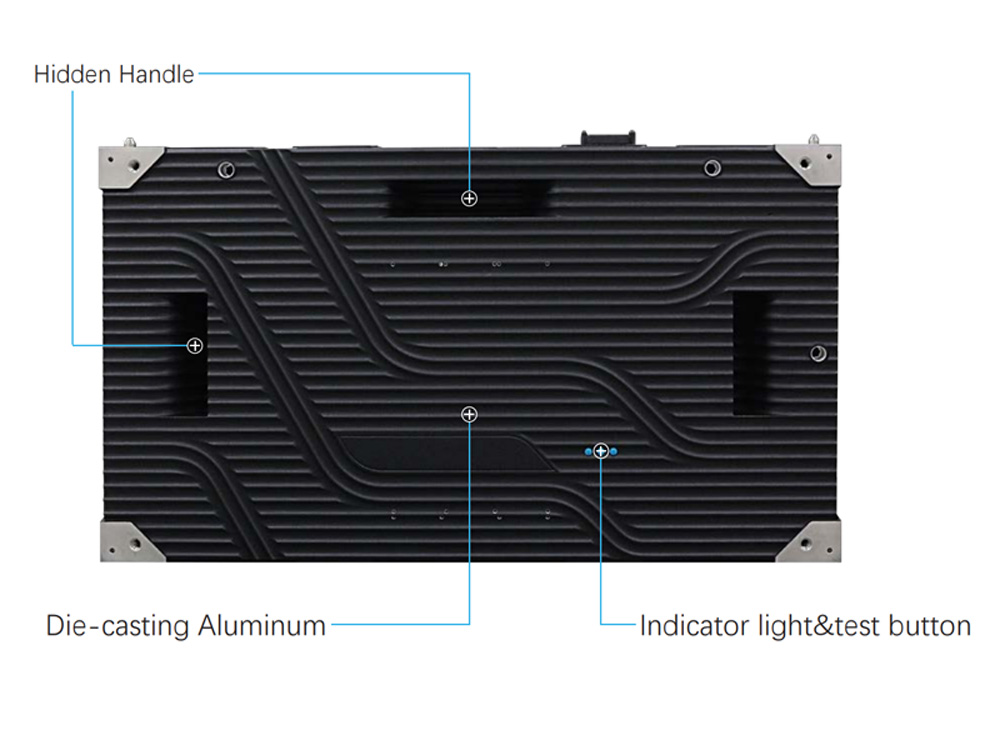

| Cabinet material | Die-casting aluminum | ||||
| Brightness correction | Yes | ||||
| Brightness (Nits) | ≥600 | ||||
| Color temperature | 5000 - 12000 Optional | ||||
| Viewing angle (V/H) | 170°/170° | ||||
| Brightness/Color uniformity | ≥99.8% | ||||
| Contrast ratio | 10000:1 | ||||
| Frame Rate | 50 / 60 | ||||
| Grey Level | 16 Bit | ||||
| Refresh rate (Hz) | 3840 | ||||
| Max. power consumption | 420w/sqm | ||||
| Avg. power consumption | 100w/sqm | ||||
| Protection grade | IP 31 | ||||
| Input Power | AC90-264V, 47-63Hz | ||||
| Working Temp/Humidity | -20~60℃ / 10%~85% | ||||
| Storage Temp/Humidity | -20~60℃ / 10%~85% | ||||
| Cert. | CCC / CE / RoHS / FCC / CB / TUV / IEC | ||||
