PureFlux LED transparent screens are super clear, super light, and look amazing—great for glass walls, shops, and cool setups without blocking sunlight. Perfect for malls, stages, museums, glass displays, and car shows!
Panel Size: 500mm x 500mm / 500mm x 1000mm，Free Splice.
Slim & lightweight – Natural ventilation, efficient heat dissipation

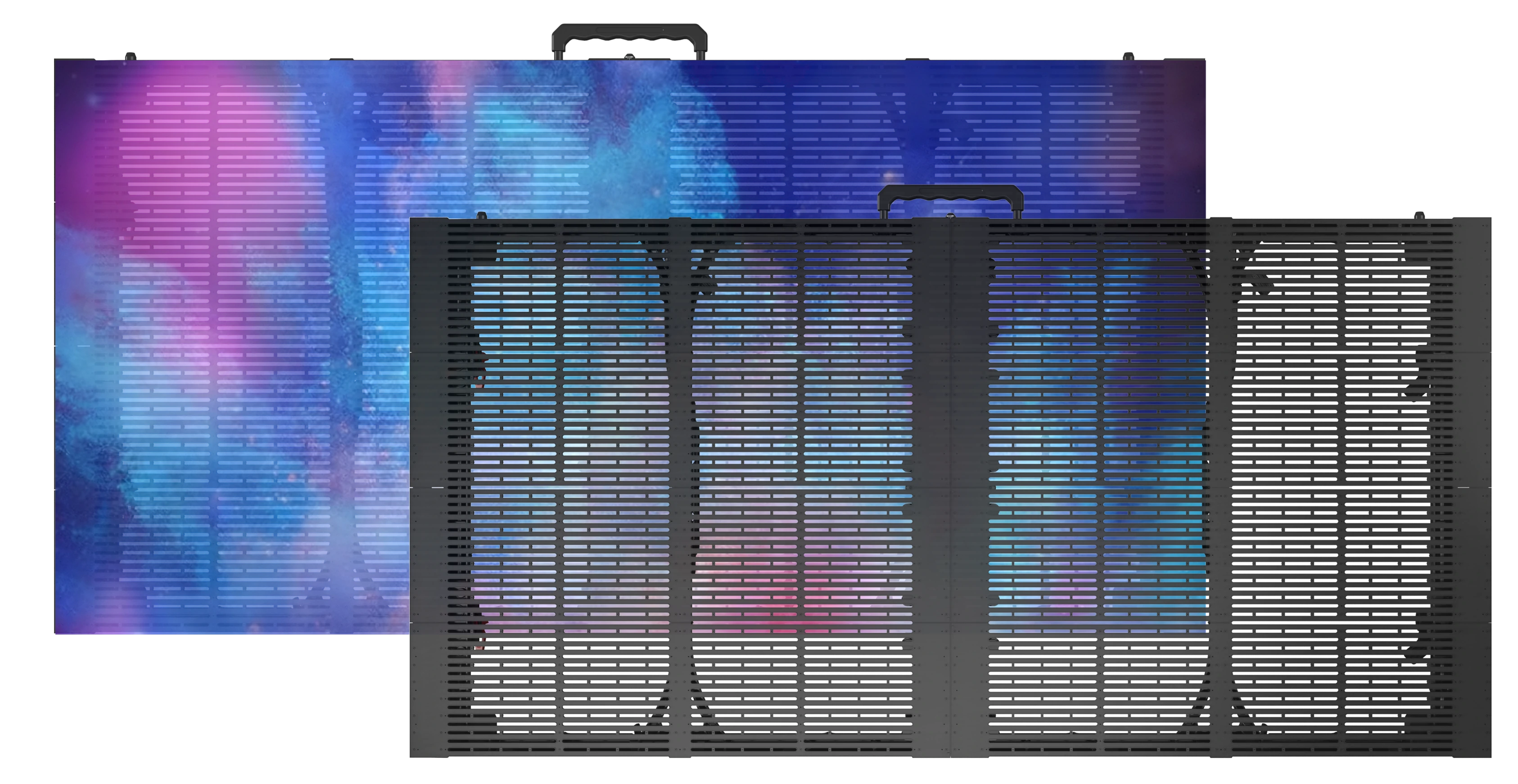

Ultra-clear display – High transmittance, minimal space occupancy

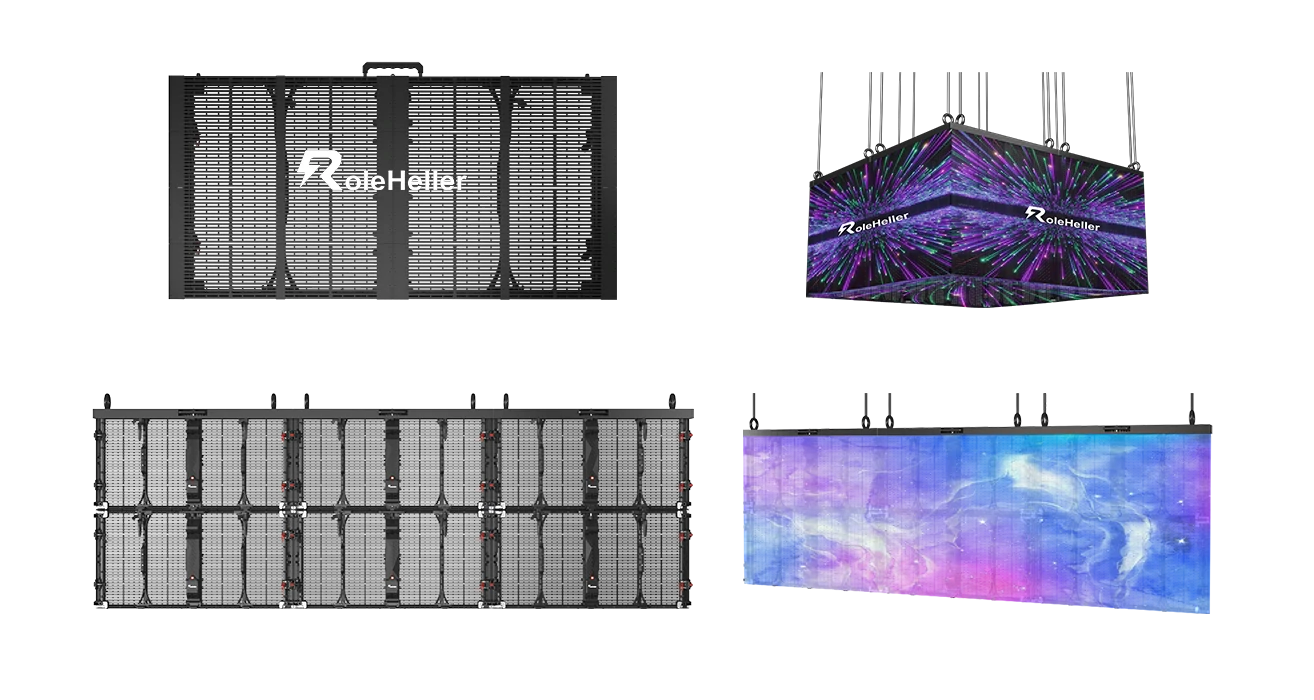

Flexible mounting – Ceiling/wall/floor options
Roleheller PureFlux LED screens are 30-65% transparent, perfect for events, concerts, and ads.

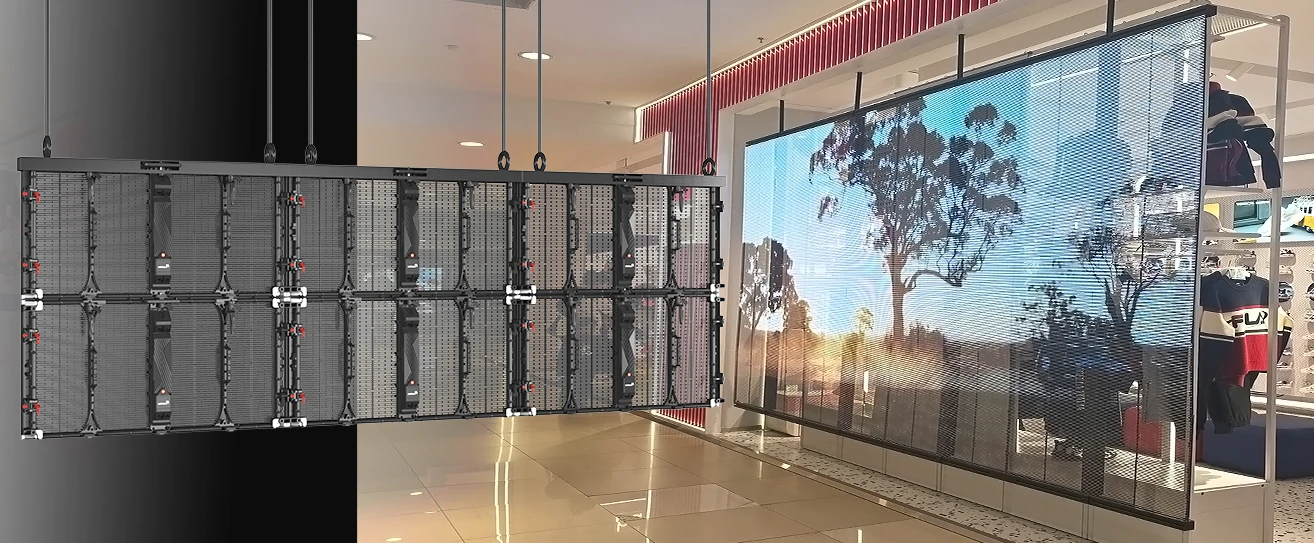

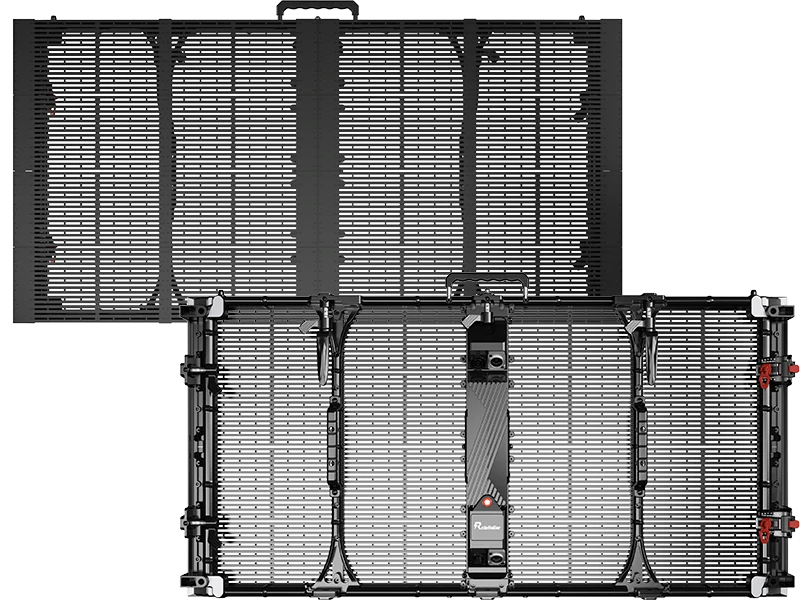

Assemble this 1000mm x 500mm cabinet in seconds! Roleheller PureFlux LED transparent screens are fully customizable – ideal for brands, events, stages, and malls.

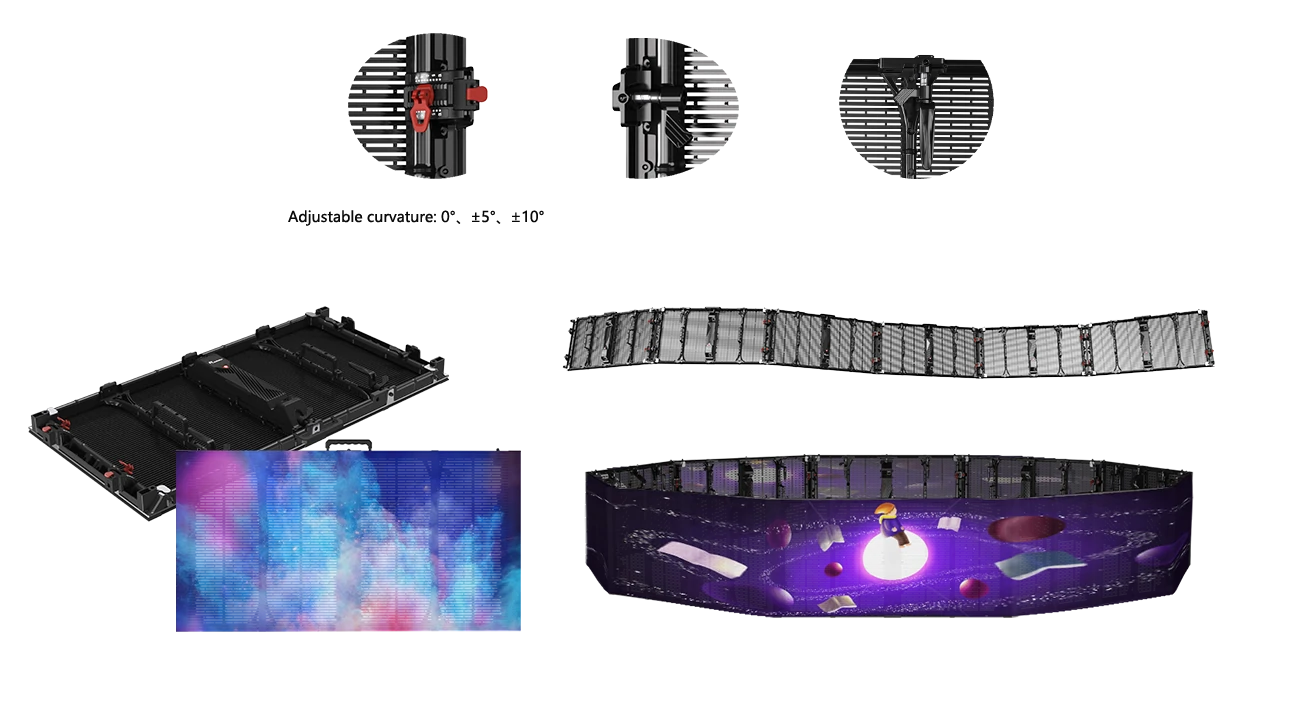

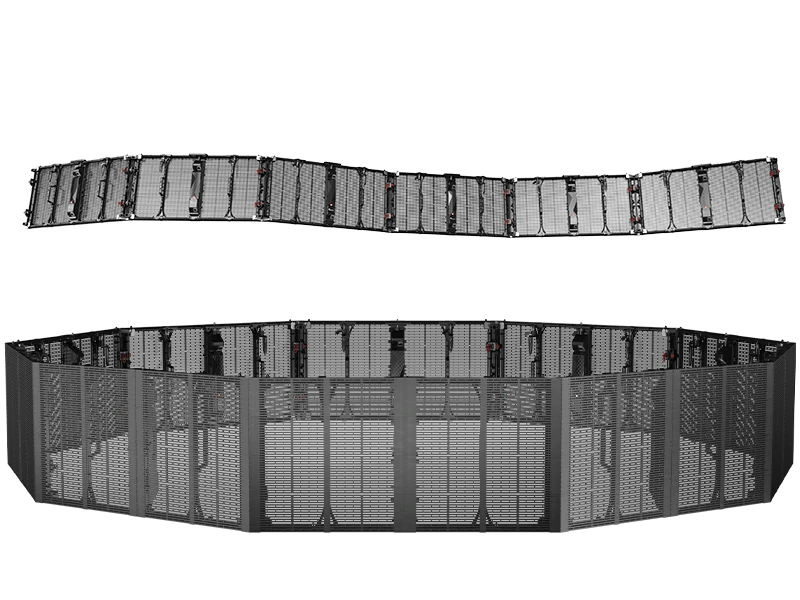

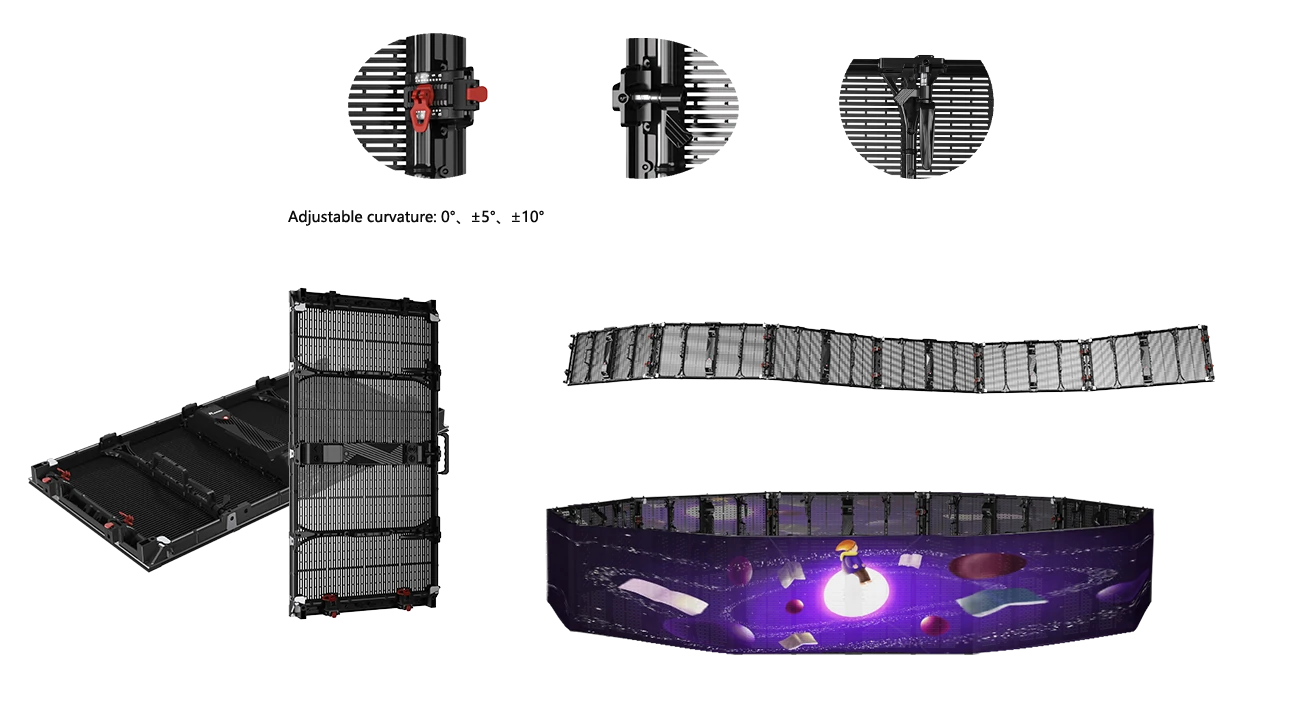

PureFlux LED transparent screen bends easily (0°, ±5°, ±10°) and can be shaped into circles, arcs, or boxes for creative designs.

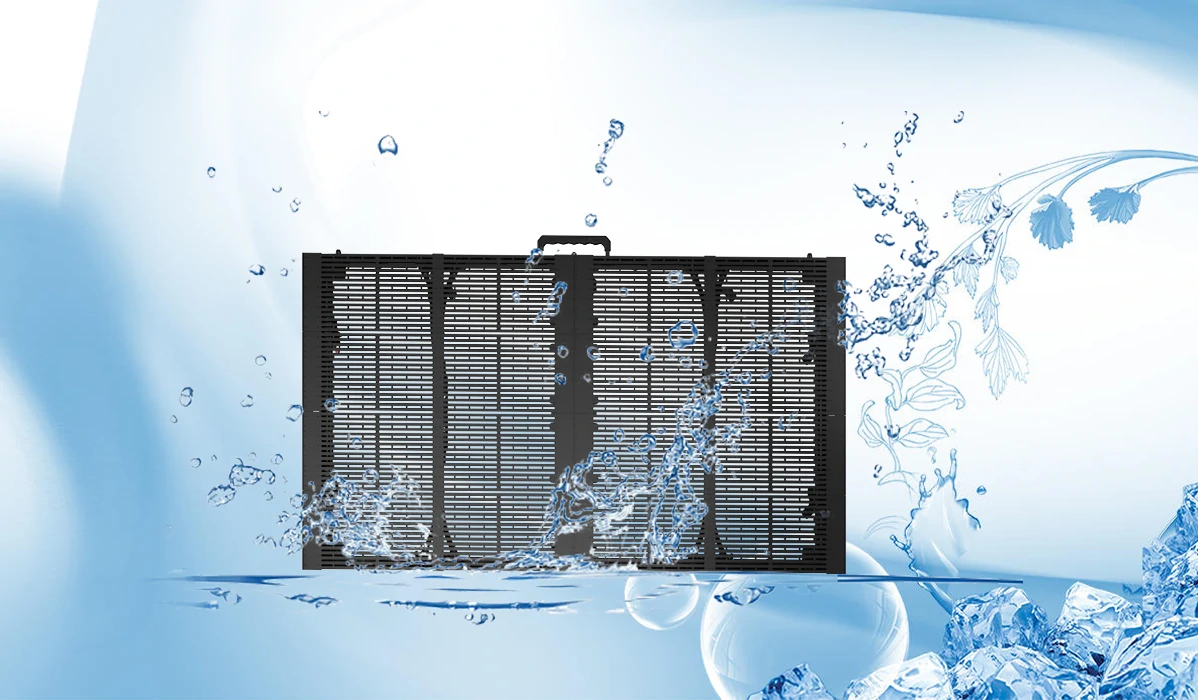

PureFlux LED displays are IP65 waterproof, moisture-resistant, and heat-resistant, ideal for outdoor stages, stadiums, and commercial events.

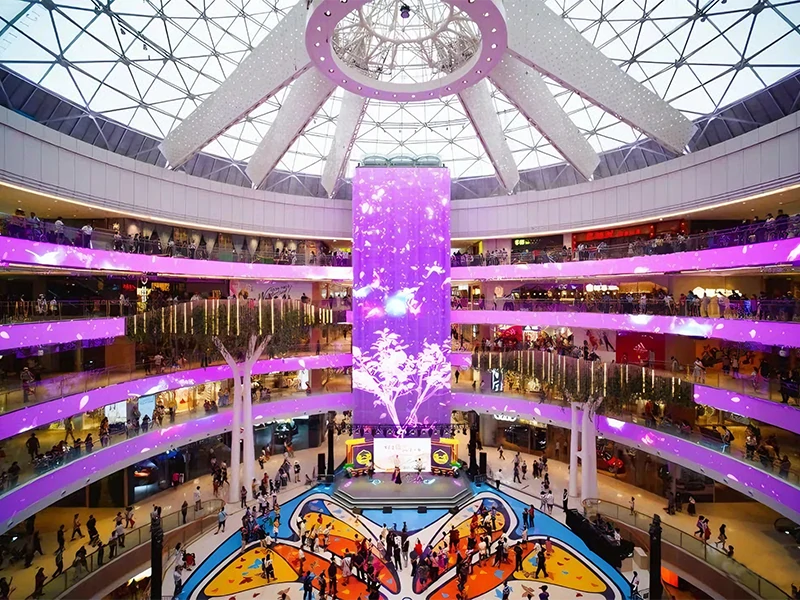

The Flux Series rental LED displays work great for concerts, stages, tourism shows, ads, shopping malls, glass doors/windows/railings, glass walls, and even sightseeing elevators.
| indoor | outdoor | ||
| Pixel Pitch (H/V) | P2.5 - 5.0 | P3.91 - 7.82 | P3.91 - 7.82 |
| LED Type | SMD1415 / 1515 | SMD1921 / 2020 | SMD1921 |
| Pixel Density (dot/m²) | 80000 | 32768 | 32768 |
| Cabinet size (mm) | 1000 x 500 | 1000 x 500 | 1000 x 500 |
| Drive mode | 16 - 32 | 8-16 | 8-16 |
| Brightness (cd/m²) | 1500 - 2500 | 1500 - 2500 | ≥5000 |
| Transparency | 70% - 85% | 70% - 85% | 70% - 85% |
| Refresh rate (Hz) | 3840 | 3840 | 3840 |
| Brightness adjustment | Level 256 | Level 256 | Level 256 |
| Viewing angle (V/H) | 160° / 160° | 160° / 160° | 160° / 160° |
| Best Viewing Distance | 3m - 50m | 4m - 50m | 4m - 50m |
| Protection Grade | IP 31 | IP 31 | IP 65 |
| Power Input | AC90-264V, 47-63Hz | ||
| Working T/H(℃/RH) | -20~60℃ / 10%~85% | ||
| Storage T/H(℃/RH) | -20~60℃ / 10%~85% | ||
| Cert. | CCC / CE / RoHS / FCC / CB / TUV / IEC | ||
| indoor | outdoor | ||
| Pixel Pitch (H/V) | P2.5 - 5.0 | P3.91 - 7.82 | P3.91 - 7.82 |
| LED Type | SMD1415 / 1515 | SMD1921 / 2020 | SMD1921 |
| Pixel Density (dot/m²) | 80000 | 32768 | 32768 |
| Cabinet size (mm) | 1000 x 500 | 1000 x 500 | 1000 x 500 |
| Drive mode | 16 - 32 | 8-16 | 8-16 |
| Brightness (cd/m²) | 1500 - 2500 | 1500 - 2500 | ≥5000 |
| Transparency | 70% - 85% | 70% - 85% | 70% - 85% |
| Refresh rate (Hz) | 3840 | 3840 | 3840 |
| Brightness adjustment | Level 256 | Level 256 | Level 256 |
| Viewing angle (V/H) | 160° / 160° | 160° / 160° | 160° / 160° |
| Best Viewing Distance | 3m - 50m | 4m - 50m | 4m - 50m |
| Protection Grade | IP 31 | IP 31 | IP 65 |
| Power Input | AC90-264V, 47-63Hz | ||
| Working T/H(℃/RH) | -20~60℃ / 10%~85% | ||
| Storage T/H(℃/RH) | -20~60℃ / 10%~85% | ||
| Cert. | CCC / CE / RoHS / FCC / CB / TUV / IEC | ||
