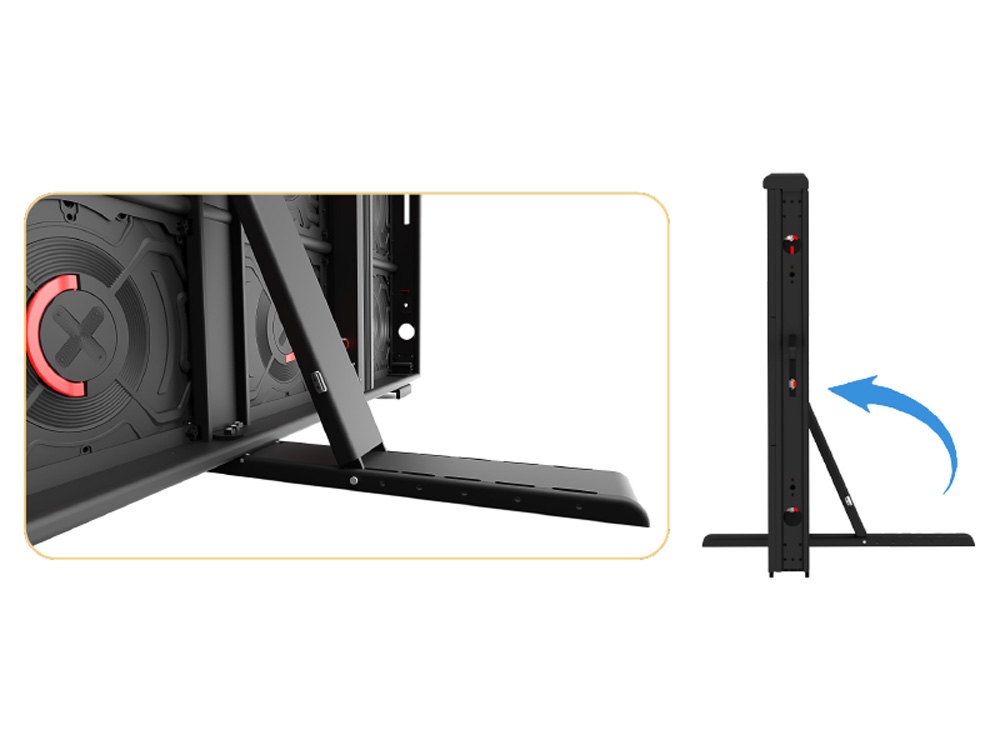

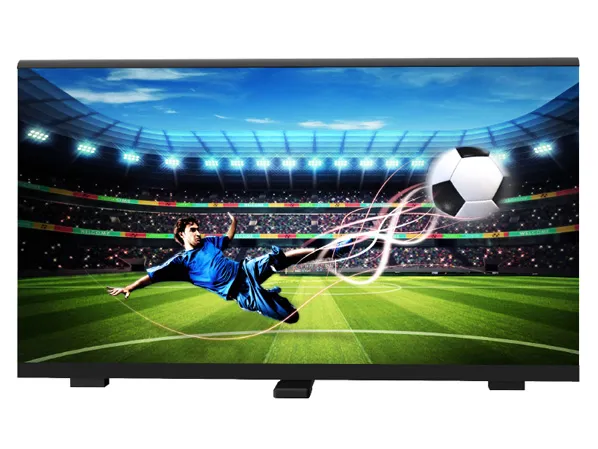

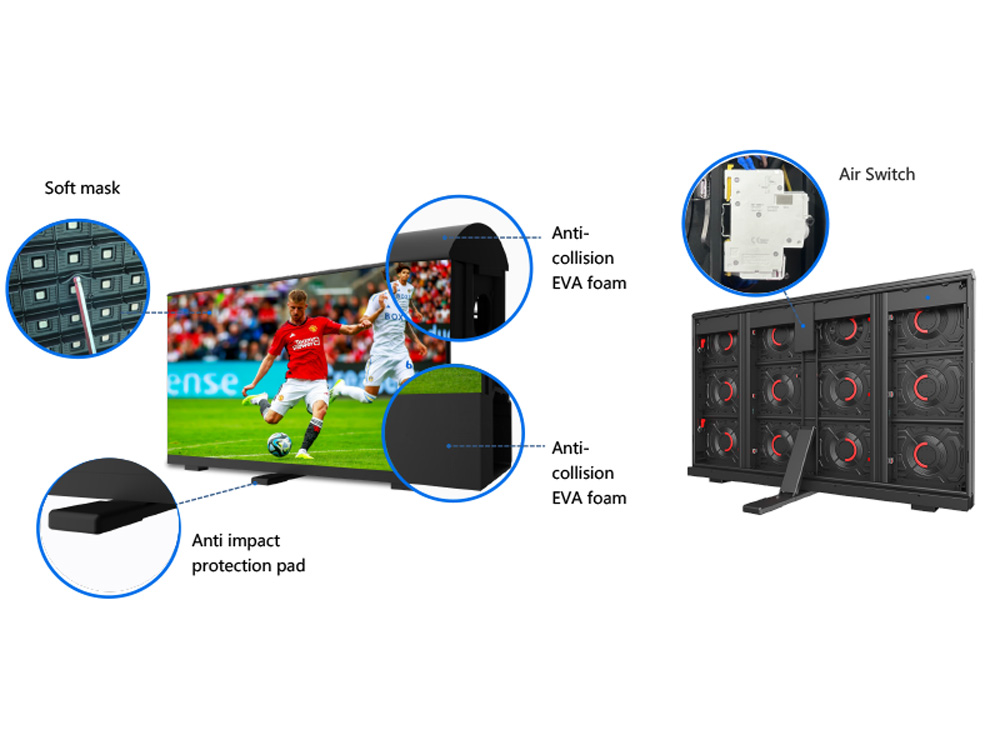

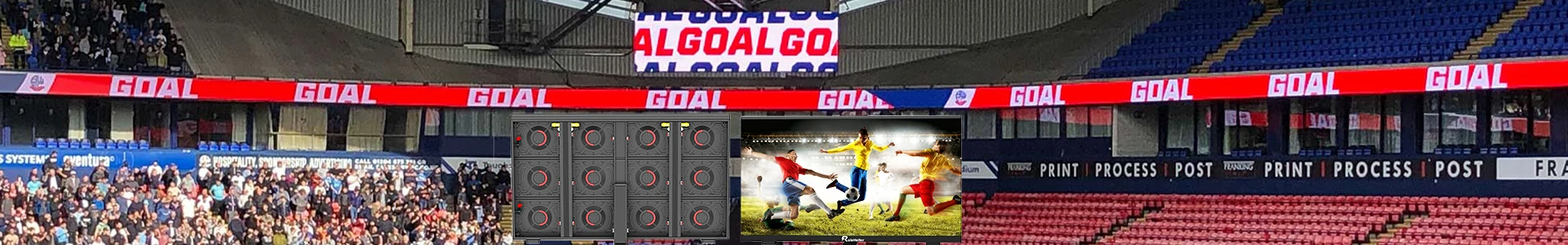

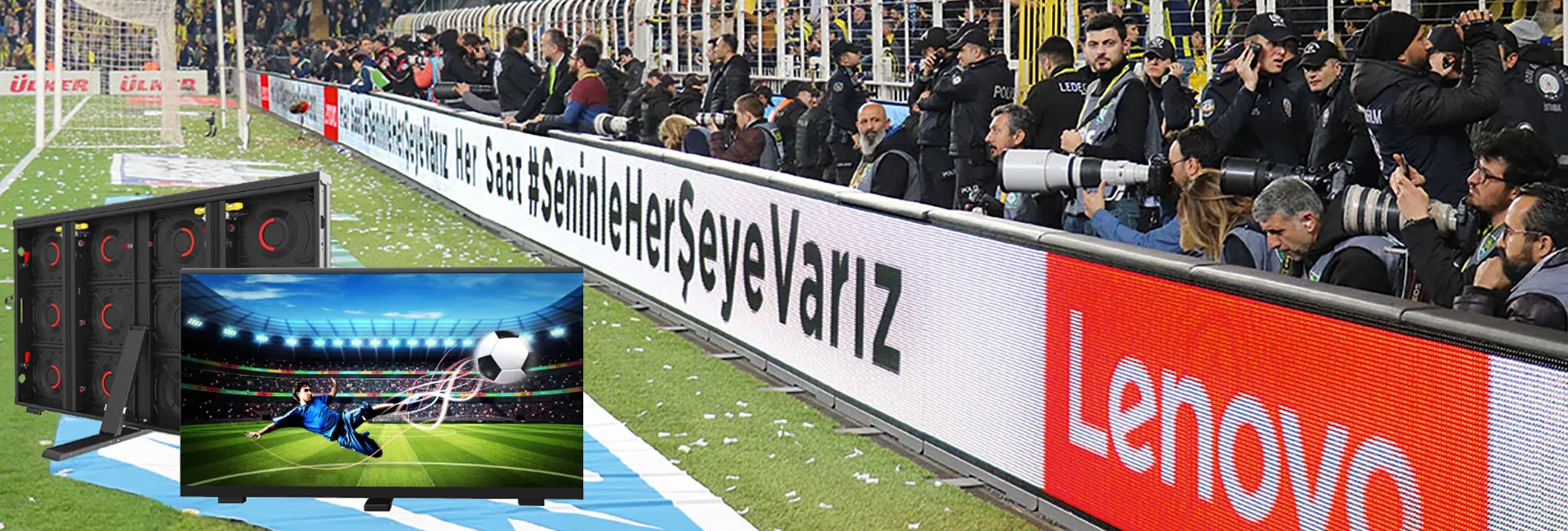

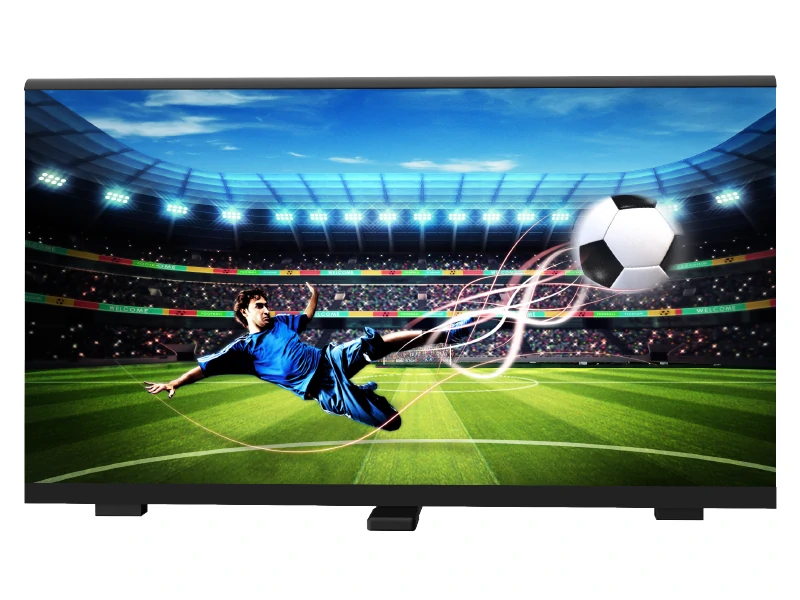

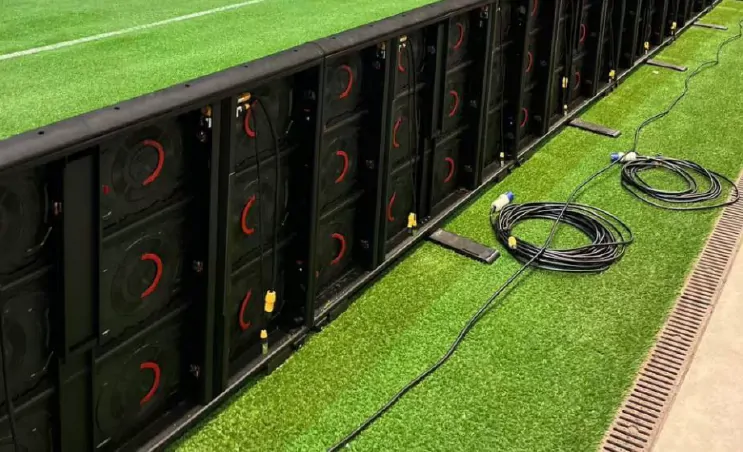

As one of the professional LED outdoor screen manufacturers, RoleHeller's Stadium Perimeter LED display combines safety, high refresh rate, and durability for sports venues. Featuring tiltable design, shockproof padding, soft edge guards, 160° wide viewing angle, smooth motion, and weatherproof construction, it’s a trusted choice for stadium installations.
Indoor
| Pixel Pitch | P6.25 | P8.33 | P10 |
| SMD type | SMD2727 | SMD2727 | SMD2727 |
| Pixel density (dots/m2) | 25600 | 14400 | 10000 |
| Module resolution | 64 x 48 | 48 x 36 | 40 x 30 |
| Module size (mm) | 400 x 300 | 400 x 300 | 400 x 300 |
| Panel size (W x H x D/mm) | 1600X940X98 | 1600X940X98 | 1600X940X98 |
| Panel resolution | 256 x 144 | 192 x 108 | 160 x 90 |
| Module QTY (W x H) | 4 x 3 | 4 x 3 | 4 x 3 |
| Pannel weight (kg) | 35 | 35 | 35 |

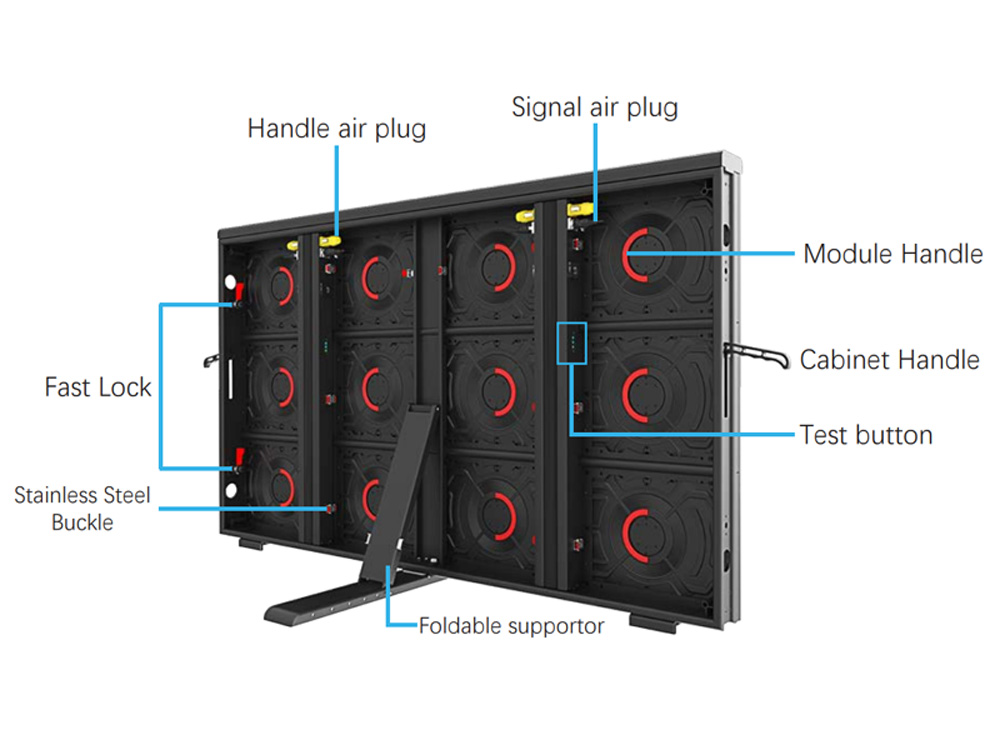

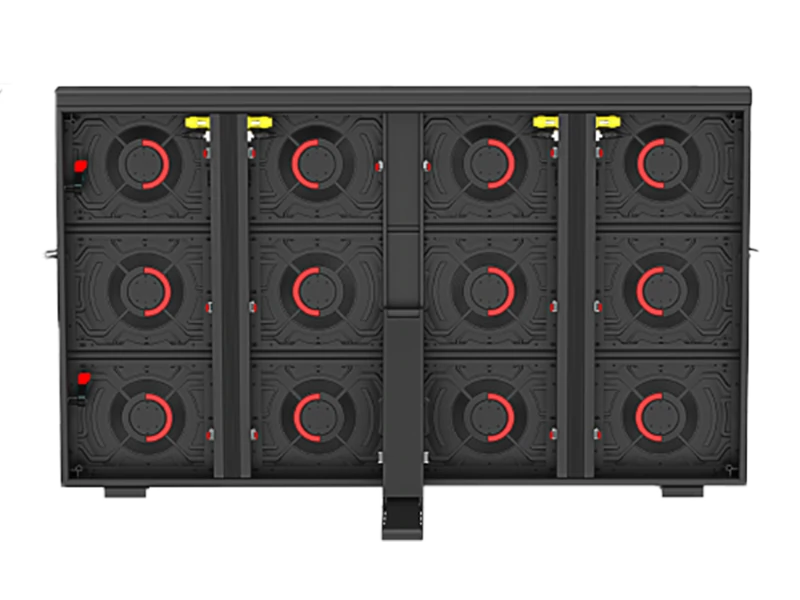

| Maintenance mode | Front / Rear | Front / Rear | Front / Rear |
| Cabinet material | Aluminum | Aluminum | Aluminum |
| Drive mode | 1/6 scan | 1/3 scan | 1/2 scan |

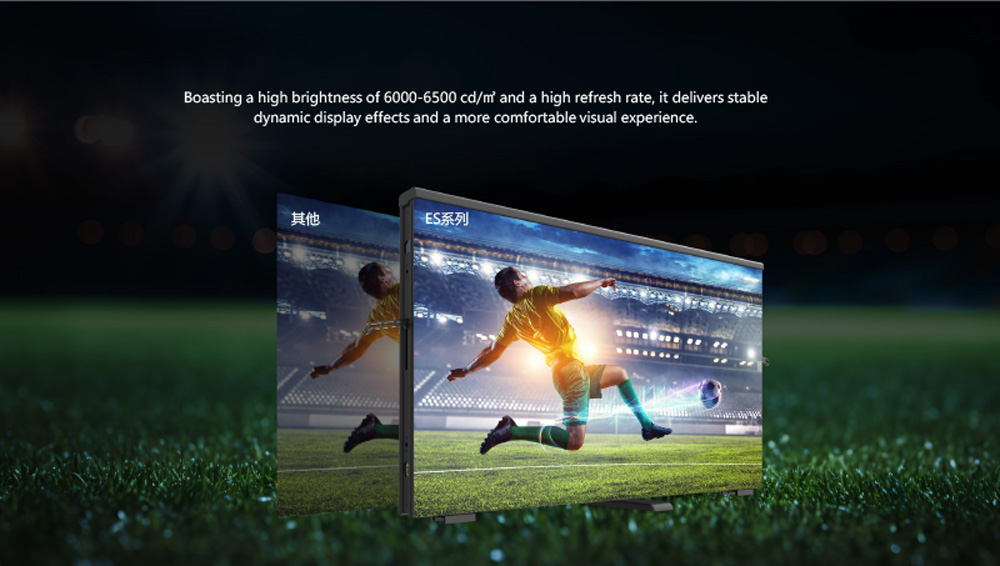

| Brightness (Nits) | 6500 | 6500 | 6500 |
| Color temperature | 5000-12000 Optional | 5000-12000 Optional | 5000-12000 Optional |

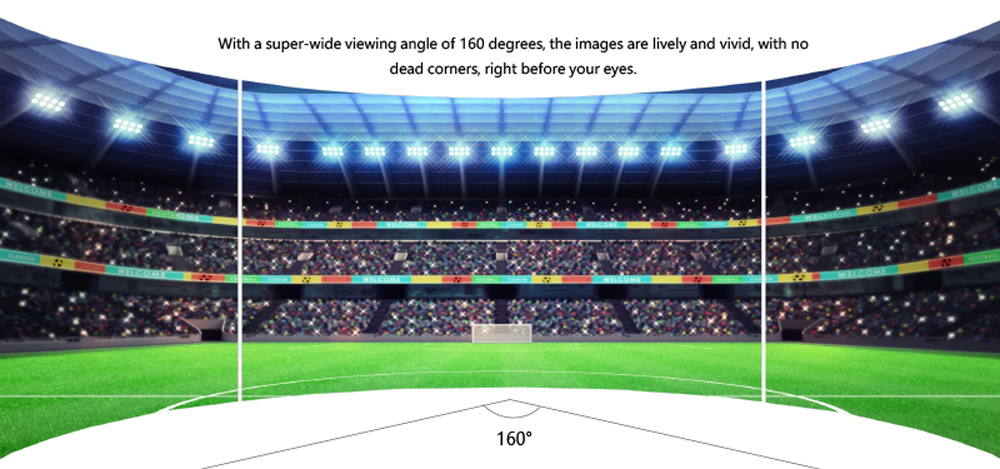

| Viewing angle (V/H) | 140°/160° | 140°/160° | 140°/160° |
| Viewing distance | 6-200m | 8-200m | 10-200m |
| Contrast ratio | 10000:1 | 10000:1 | 10000:1 |
| Frame Rate | 50 / 60 | 50 / 60 | 50 / 60 |
| Grey Level | 16 bit | 16 bit | 16 bit |
| Refresh rate (Hz) | 3840 | 3840 | 3840 |
| Max. power consumption | 680 | 680 | 680 |
| Avg. power consumption | 120-200 | 120-200 | 120-200 |

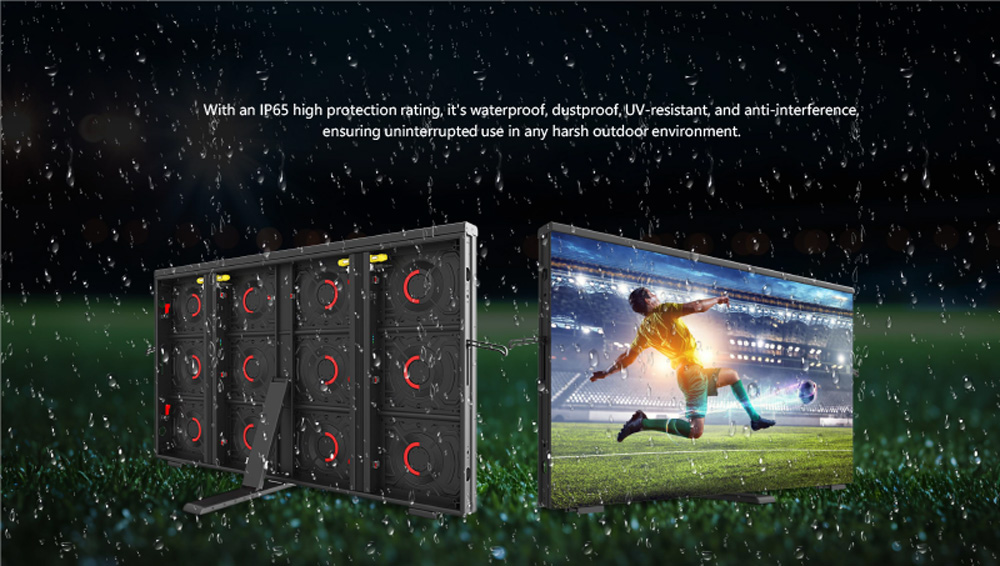

| Protection grade | IP65 | IP65 | IP65 |
| Input Power | AC90-264V,47-63Hz | ||
| Working Temp/Humidity | -20~60℃/10%~85% | ||
| Storage Temp/Humidity | -20~60℃/10%~85% | ||
| Cert. | CCC/CE/RoHS/FCC/CB/TUV/IEC | ||
