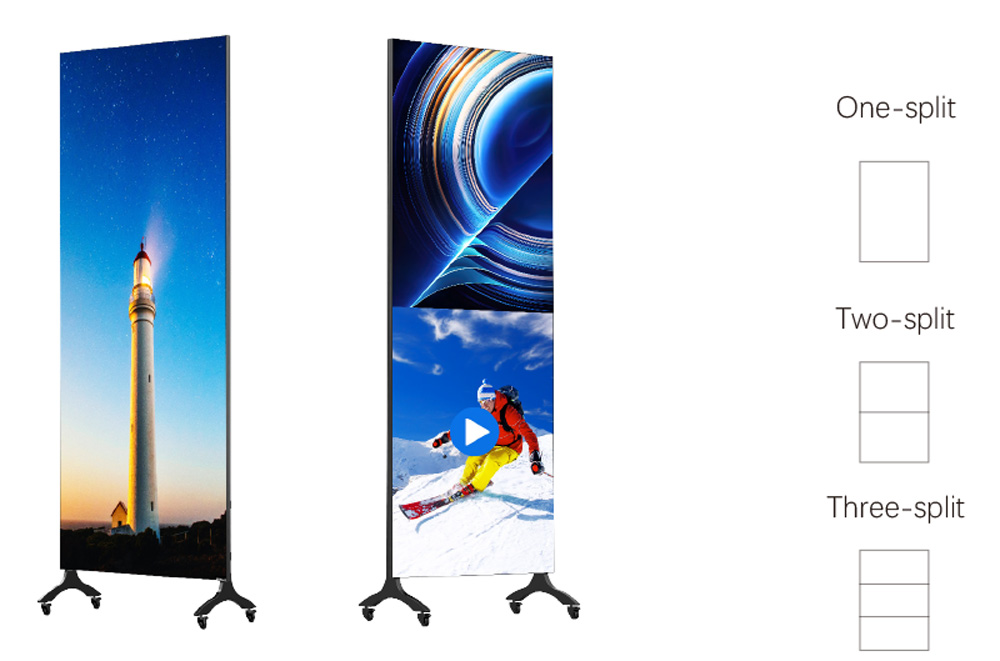

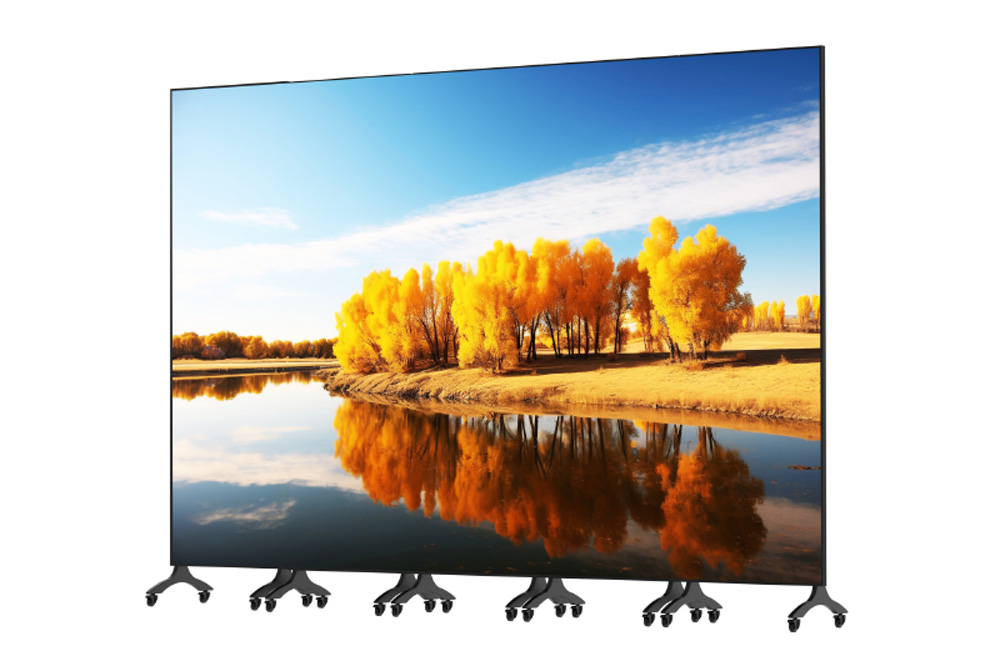

P3 Poster Series combines ultra-slim design with vivid HD performance using COB and GOB technologies. With seamless multi-screen splicing, wide color gamut, and remote smart control, it’s a perfect fit for hotels, showrooms, and shopping malls seeking sleek, high-resolution digital signage solutions.
| Pixel Pitch | P0.9375 | P1.25 | P1.56 | P1.875 | P2.5 |
| LED type | COB | SMD1010 COB | SMD1010/1212 COB | SMD1010/1515 GOB | SMD1010/1515 GOB |
| Pixel density (dot/m2) | 1137778 | 640000 | 409600 | 284444 | 160000 |
| Display dimensions (mm) | 600 x 2025 x 30 | ||||
| Overall dimensions (mm) | 606 x 2206 x 30 | ||||
| Display Pixels (Points) | 640 x 2160 | 480 x 1620 | 384 x 1296 | 320 x 1080 | 240 x 810 |
| Weight (kg) | 37 | ||||
| Maintenance mode | Front | ||||
| Cabinet material | Die-cast Aluminum | ||||
| Drive mode | 1/60 scan | 1/45 scan | 1/48 scan | 1/45 scan | 1/45 scan |
| Brightness (Nits) | ≥600 | ||||
| Color temperature | 5000 - 12000 Optional | ||||
| Viewing angle (V/H) | 170°/170° | ||||
| Brightness/Color uniformity | ≥99.8% | ||||
| Contrast ratio | 10000:1 | ||||
| Frame Rate | 50 / 60 | ||||
| Grey Level | 16 Bit | ||||
| Refresh rate (Hz) | 3840 | ||||
| Max. power consumption | 420w | ||||
| Avg. power consumption | 100-200w | ||||

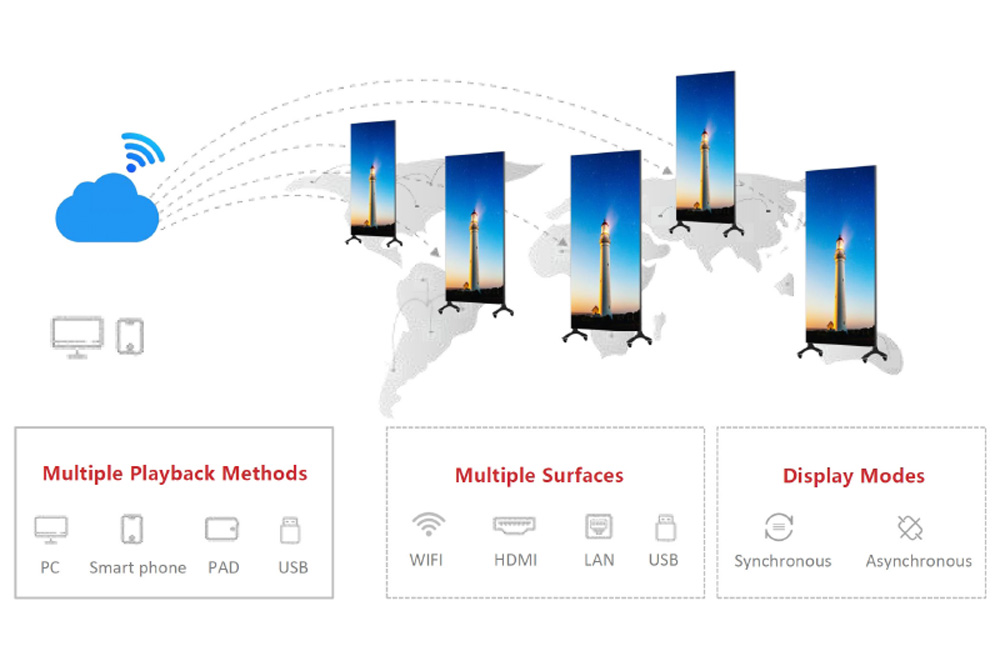

| Control mode | USB / LAN / WIFI / 4G cloud (optional) | ||||
| Input Power | AC90-264V, 47-63Hz | ||||
| Working Temp/Humidity | -20~60℃ / 10%~85% | ||||
| Storage Temp/Humidity | -20~60℃ / 10%~85% | ||||
| Cert. | CCC / CE / RoHS / FCC / CB / TUV / IEC /BIS | ||||
