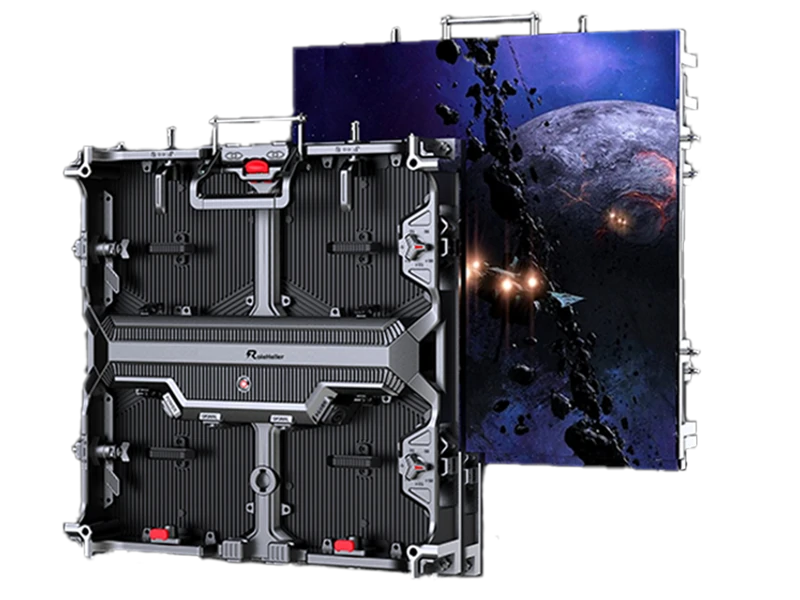

LuxFlux LED dance floors are tough, heavy-duty, slip-resistant, and touch-responsive—perfect for stages, shows, malls, events, transit hubs, stadiums, and immersive experiences.

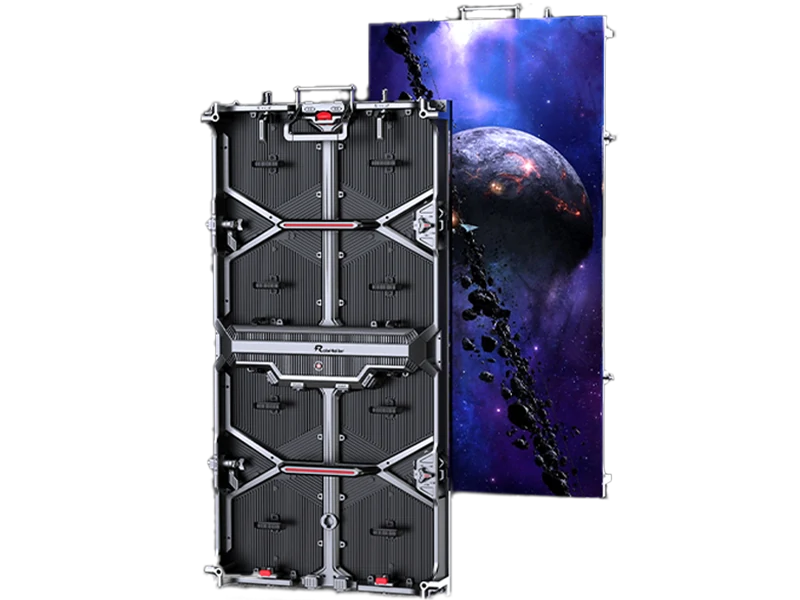

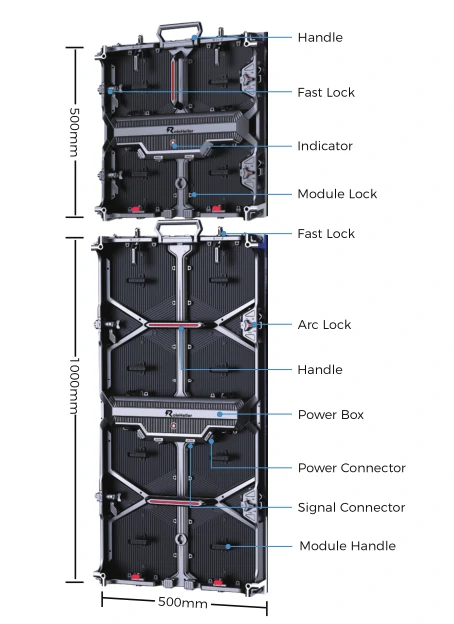

Panel Size: 500mm x 500mm / 500mm x 1000mm，Free Splice.

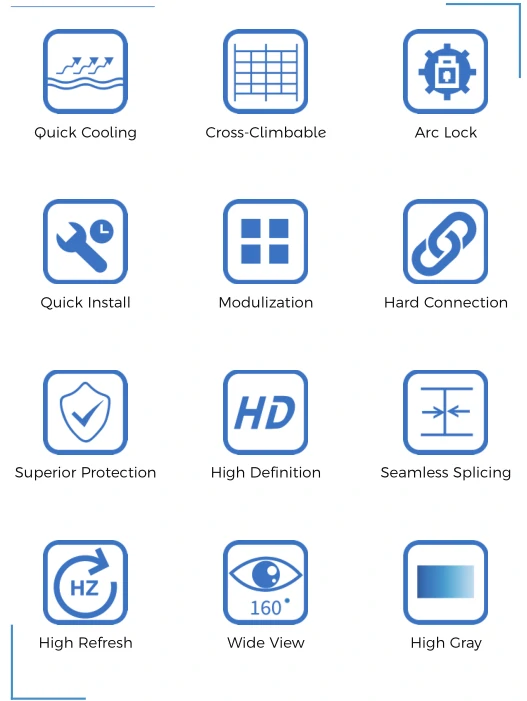

Horizontal power design for easy cooling/maintenance, safe & reliable.

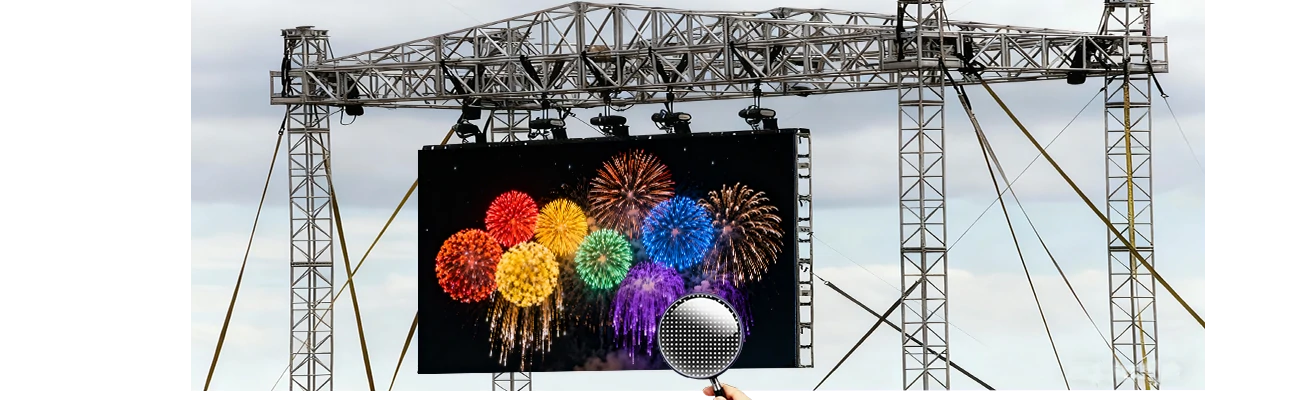

High refresh rate eliminates ghosting/flickering, ensuring sharp images.
Arc lock supports multiple shapes (circle, U, inner/outer arcs) for quality display.
Support the up-and-down assembly of panels of different sizes.
Innovative half-Arc lock Design, compatible with straight and arc configurations. Adjustable angle:-15° to +15°

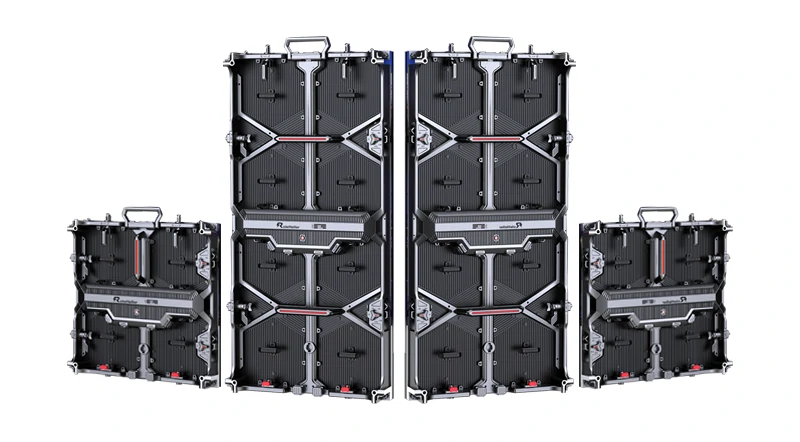

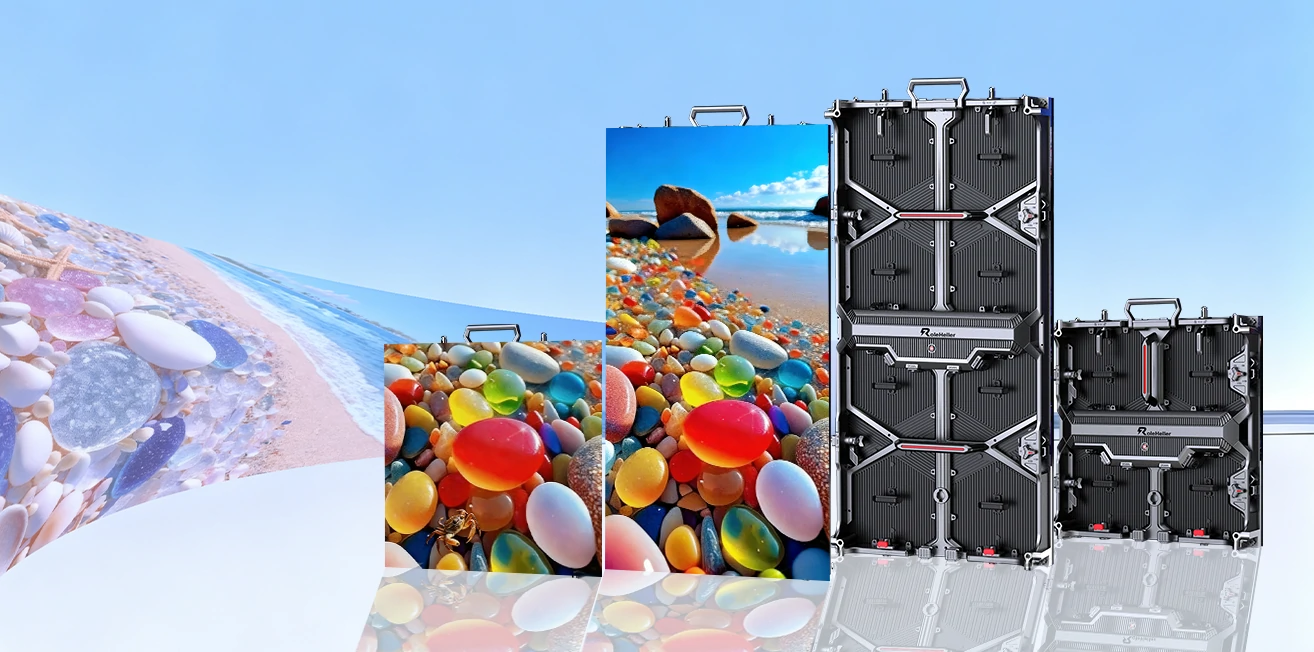

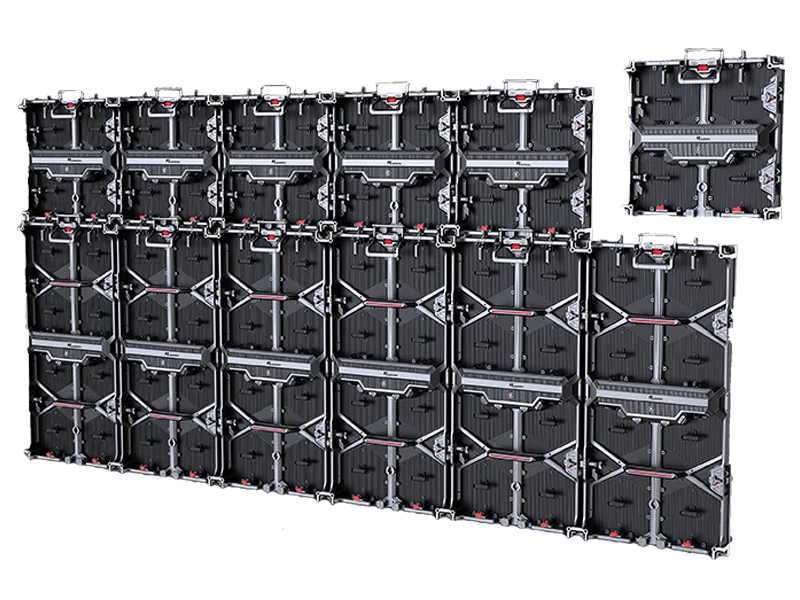

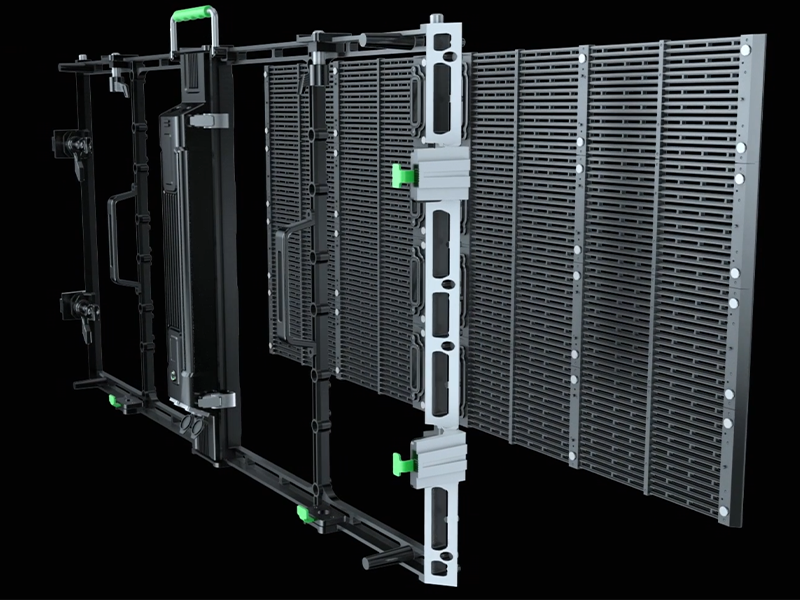

The 500x500mm box can be easily stacked vertically with the 500x1000mm box. LuxFlux Series LED displays perfectly fit various construction needs.

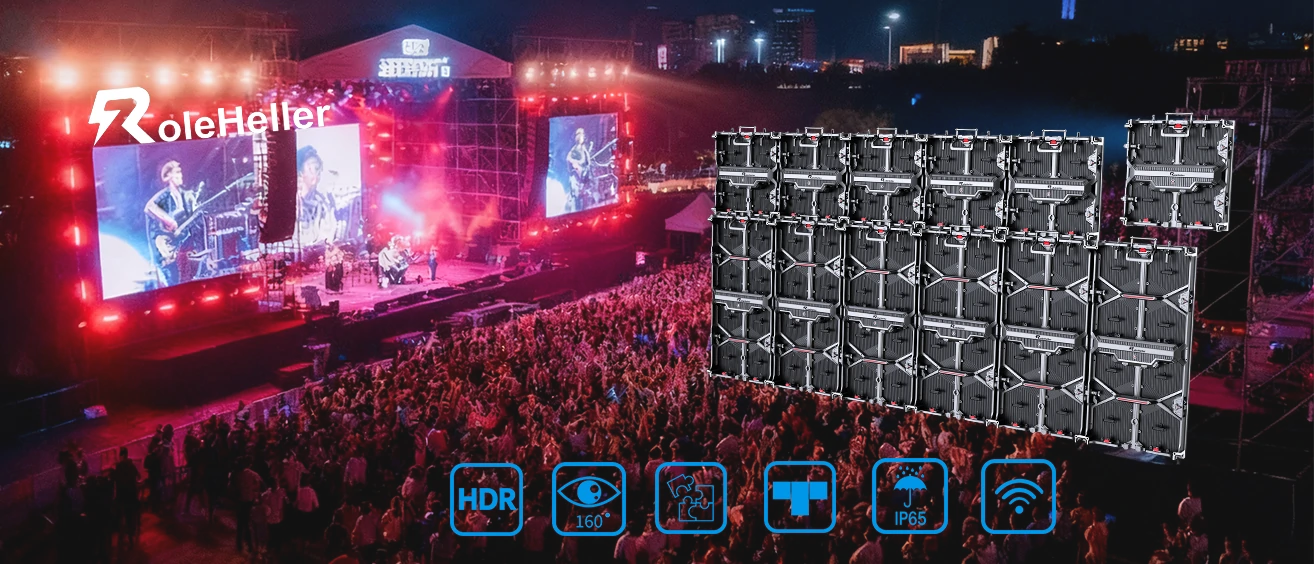

Roleheller's got LED screens (P2.60, P2.97, P3.91, P4.81, P5.95) that show images/videos super clearly to grab attention—perfect for malls, hotels, outdoor ads, or building exteriors.

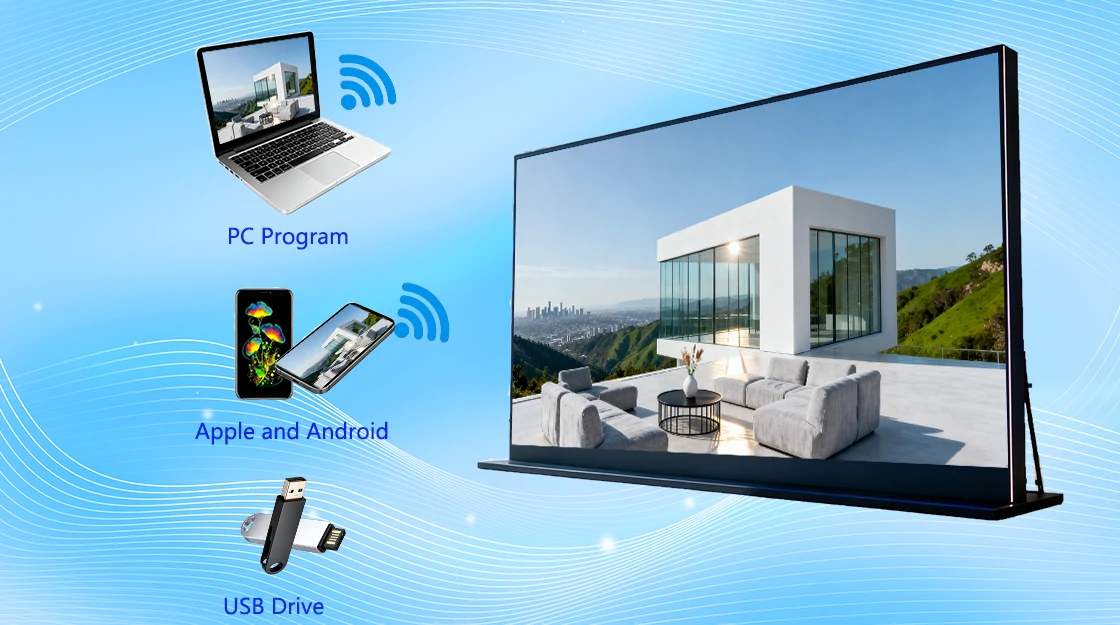

Control lights and sounds from your phone, tablet, or computer over WiFi. Also works with a USB drive.

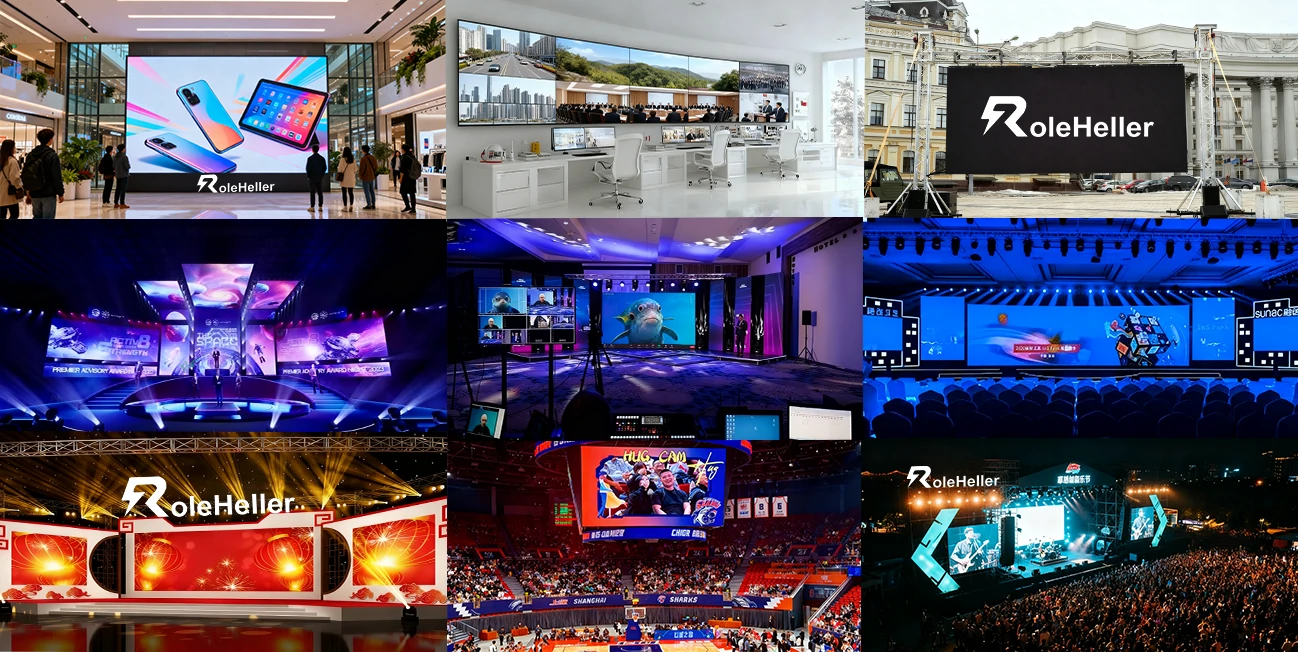

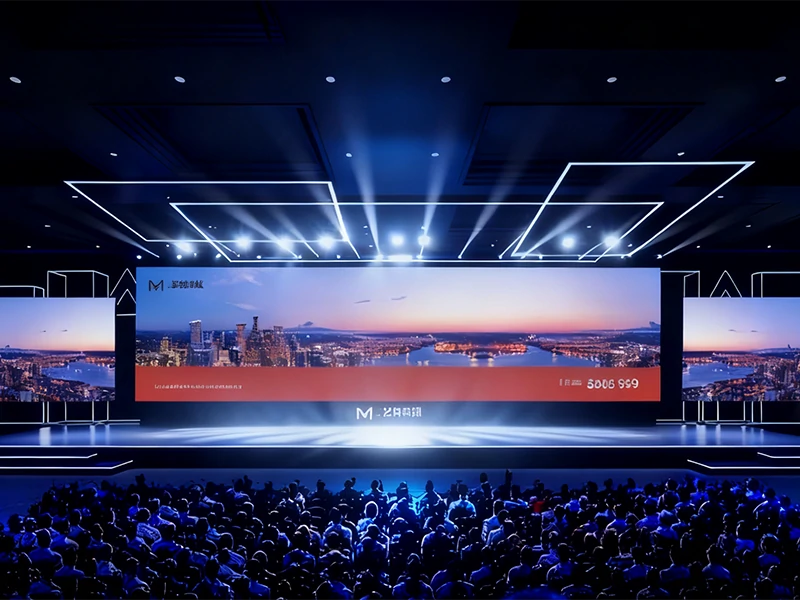

Perfect for digital displays in malls, airports, stadiums, tourist spots, schools, hospitals, and corporate ads.
| indoor | outdoor | |||||||||
| Pixel Pitch | P1.56 | P1.95 | P2.60 | P2.98 | P3.91 | P2.60 | P2.98 | P3.91 | P4.81 | P5.95 |
| LED Type | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD2727 |
| Pixel Density(dot/m²) | 409600 | 262144 | 147456 | 112896 | 65536 | 147456 | 112896 | 65536 | 43264 | 28224 |
| Module Resolution | 160 x 160 | 128 x 128 | 96 x 96 | 84 x 84 | 64 x 64 | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 | 42 x 42 |
| Module Size (WxH) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Cabinet Size (mm) | 500 x 500 | 500 x 500 / 500 x 1000 | 500 x 500 / 500 x 1000 | |||||||
| Cabinet Resolution | 320 x 320 | 256 x 256 | 192 x 192 | 168 x 168/336 | 128 x 128/ 256 | 192x192 192x384 | 168x168 168x336 | 128x128 128x256 | 104x104 104x208 | 84x84 84x168 |
| Module Qty. | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 2 x 4 | 2 x 2 2 x 4 | 2 x 2 2 x 4 | 2 x 2 2 x 4 | 2 x 2 2 x 4 | 2 x 2 2 x 4 | 2 x 2 2 x 4 |
| Weight (kg) | 7.5 | 7.5 | 7.5 | 7.5/14.5 | 7.5/14.5 | 7.5/14.5 | 7.5/14.5 | 7.5/14.5 | 7.5/14.5 | 7.5/14.5 |
| Maintenance | Front / Rear Maintenance | |||||||||
| Cabinet Material | Die-cast Aluminum | |||||||||
| Color Temp. (K) | 5000-12000 Optional | |||||||||
| Viewing Angle | 160° / 160° | |||||||||
| Brightness (Nits) | ≥600 | ≥600 | ≥800 | ≥800 | ≥1000 | ≥4500 | ≥4500 | ≥5000 | ≥5000 | ≥5000 |
| Viewing Distance | 2 - 50m | 2 - 50m | 3 - 50m | 3 - 100m | 4 - 100m | 3 - 50m | 3 - 100m | 4 - 150m | 4 - 150m | 6 - 200m |
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 |
| Frame Rate | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Drive Mode | 1/40 scan | 1/32 scan | 1/32 scan | 1/28 scan | 1/16 scan | 1 / 32 scan | 1 / 28 scan | 1 / 8 scan | 1 / 13 scan | 1 / 7 scan |
| Grey Scale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Refresh Rate (Hz) | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 |
| Protection Grade | IP 31 | IP65 | ||||||||
| Max Power Com. | 800w / m² | |||||||||
| Ave Power Com. | 200-300w / m² | |||||||||
| Power Input | AC90-264V, 47-63Hz | |||||||||
| Working T/H(℃/RH) | -20~60℃ / 10%~85% | |||||||||
| Storage T/H(℃/RH) | -20~60℃ / 10%~85% | |||||||||
| Cert. | CCC / CE / RoHS / FCC / CB / TUV / IEC | |||||||||
| indoor | outdoor | |||||||||
| Pixel Pitch | P1.56 | P1.95 | P2.60 | P2.98 | P3.91 | P2.60 | P2.98 | P3.91 | P4.81 | P5.95 |
| LED Type | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD2727 |
| Pixel Density(dot/m²) | 409600 | 262144 | 147456 | 112896 | 65536 | 147456 | 112896 | 65536 | 43264 | 28224 |
| Module Resolution | 160 x 160 | 128 x 128 | 96 x 96 | 84 x 84 | 64 x 64 | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 | 42 x 42 |
| Module Size (WxH) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Cabinet Size (mm) | 500 x 500 | 500 x 500 / 500 x 1000 | 500 x 500 / 500 x 1000 | |||||||
| Cabinet Resolution | 320 x 320 | 256 x 256 | 192 x 192 | 168 x 168/336 | 128 x 128/ 256 | 192x192 192x384 | 168x168 168x336 | 128x128 128x256 | 104x104 104x208 | 84x84 84x168 |
| Module Qty. | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 2 x 4 | 2 x 2 2 x 4 | 2 x2 2 x 4 | 2 x 2 2 x 4 | 2 x 2 2 x 4 | 2 x 2 2 x 4 | 2 x 2 2 x 4 |
| Weight (kg) | 7.5 | 7.5 | 7.5 | 7.5/14.5 | 7.5/14.5 | 7.5/14.5 | 7.5/14.5 | 7.5/14.5 | 7.5/14.5 | 7.5/14.5 |
| Maintenance | Front / Rear Maintenance | |||||||||
| Cabinet Material | Die-cast Aluminum | |||||||||
| Color Temp. (K) | 5000-12000 Optional | |||||||||
| Viewing Angle | 160° / 160° | |||||||||
| Brightness (Nits) | ≥600 | ≥600 | ≥800 | ≥800 | ≥1000 | ≥4500 | ≥4500 | ≥5000 | ≥5000 | ≥5000 |
| Viewing Distance | 2 - 50m | 2 - 50m | 3 - 50m | 3 - 100m | 4 - 100m | 3 - 50m | 3 - 100m | 4 - 150m | 4 - 150m | 6 - 200m |
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 |
| Frame Rate | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Drive Mode | 1/40 scan | 1/32 scan | 1/32 scan | 1/28 scan | 1/16 scan | 1 / 32 scan | 1 / 28 scan | 1 / 8 scan | 1 / 13 scan | 1 / 7 scan |
| Grey Scale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Refresh Rate (Hz) | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 |
| Protection Grade | IP 31 | IP65 | ||||||||
| Max Power Com. | 800w / m² | |||||||||
| Ave Power Com. | 200-300w / m² | |||||||||
| Power Input | AC90-264V, 47-63Hz | |||||||||
| Working T/H(℃/RH) | -20~60℃ / 10%~85% | |||||||||
| Storage T/H(℃/RH) | -20~60℃ / 10%~85% | |||||||||
| Cert. | CCC / CE / RoHS / FCC / CB / TUV / IEC | |||||||||
