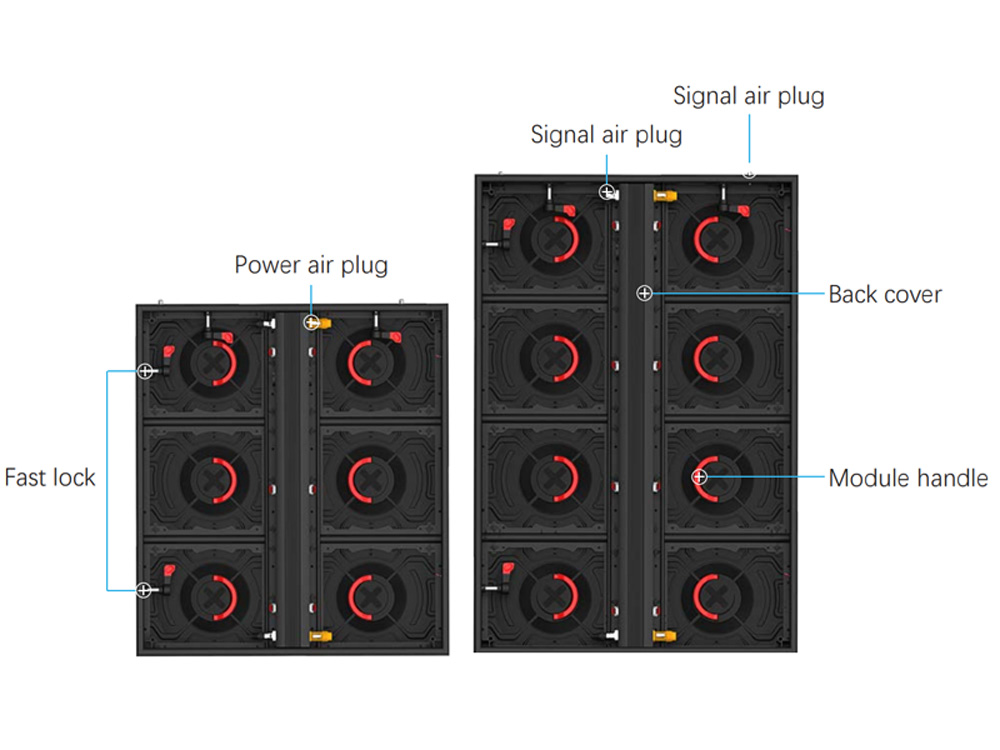

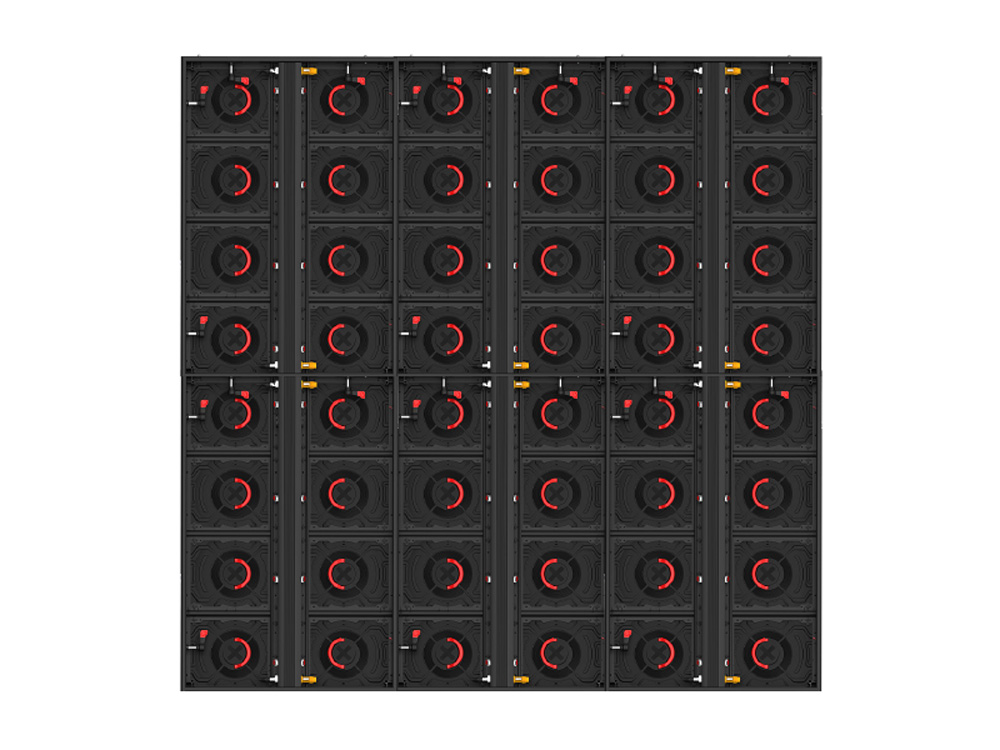

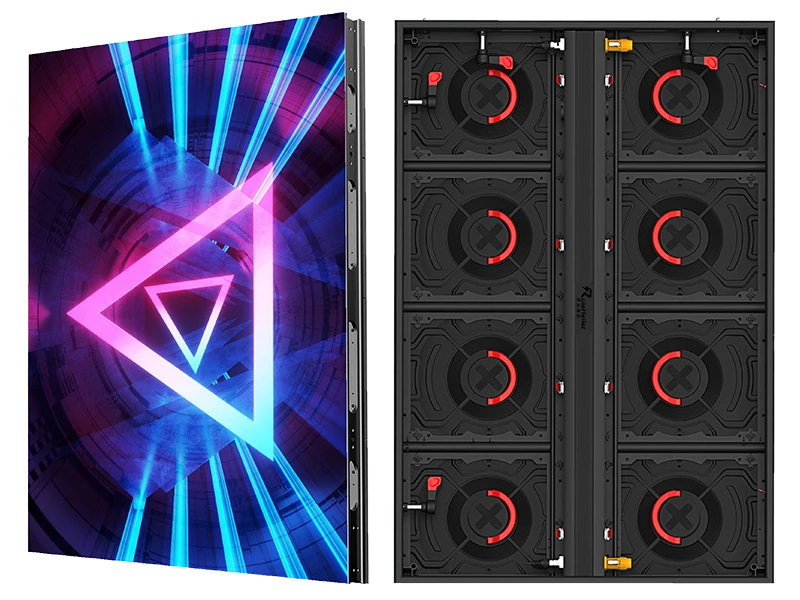

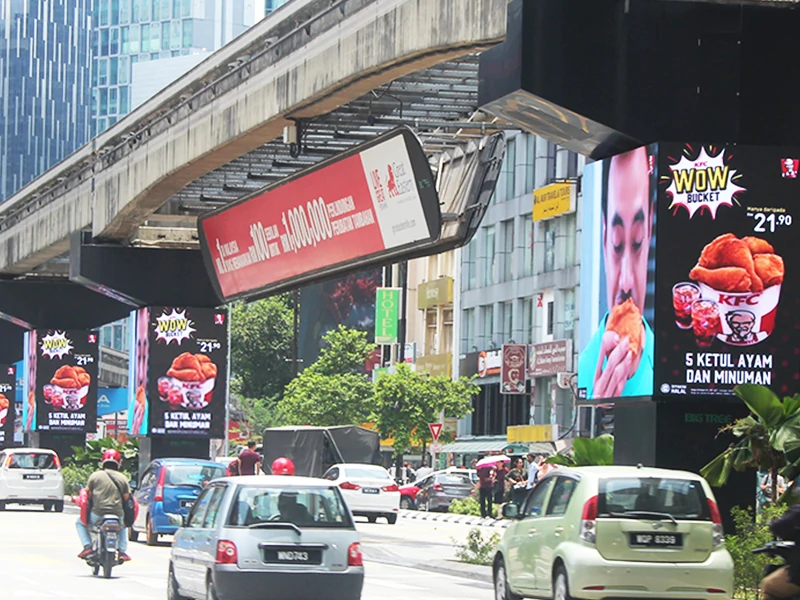

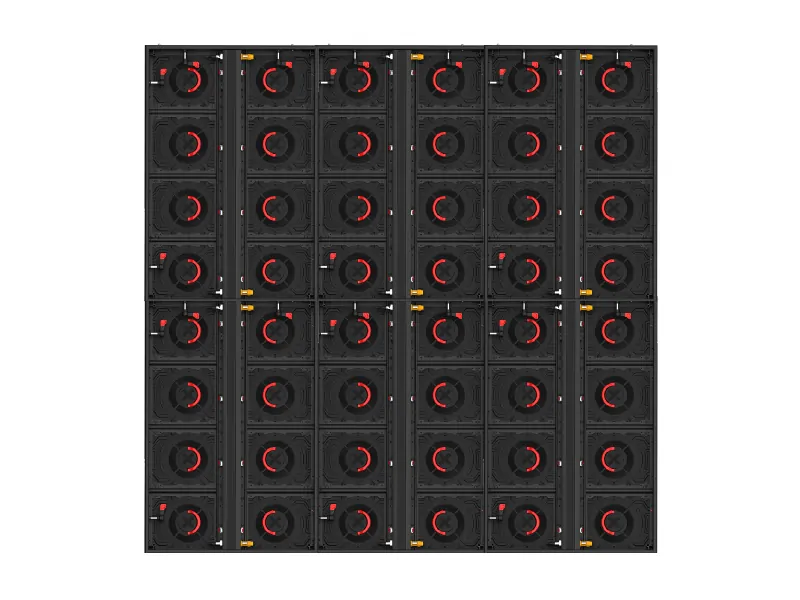

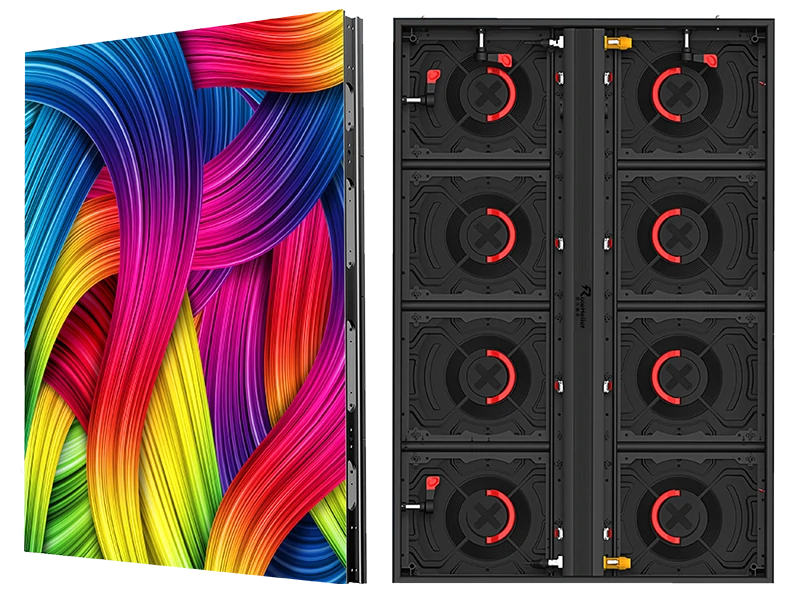

The O2 Series combines high brightness with flexible configurations, making it ideal for stadium banners and outdoor venues. Its sleek structure allows for seamless panel alignment and full front/rear maintenance. With superior waterproof protection and quick plug-and-play connections, it delivers outstanding visual impact in dynamic environments.
| Pixel Pitch | P3.125 | P4.16 | P5 | P6.25 | P8.33 | P10 |
| SMD type | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Pixel density (dots/m2) | 102400 | 57600 | 40000 | 25600 | 14400 | 10000 |
| Module resolution | 128 x 96 | 96 x 72 | 80 x 60 | 64 x 48 | 48 x 36 | 40 x 30 |
| Module size (mm) | 400 x 300 | 400 x 300 | 400 x 300 | 400 x 300 | 400 x 300 | 400 x 300 |

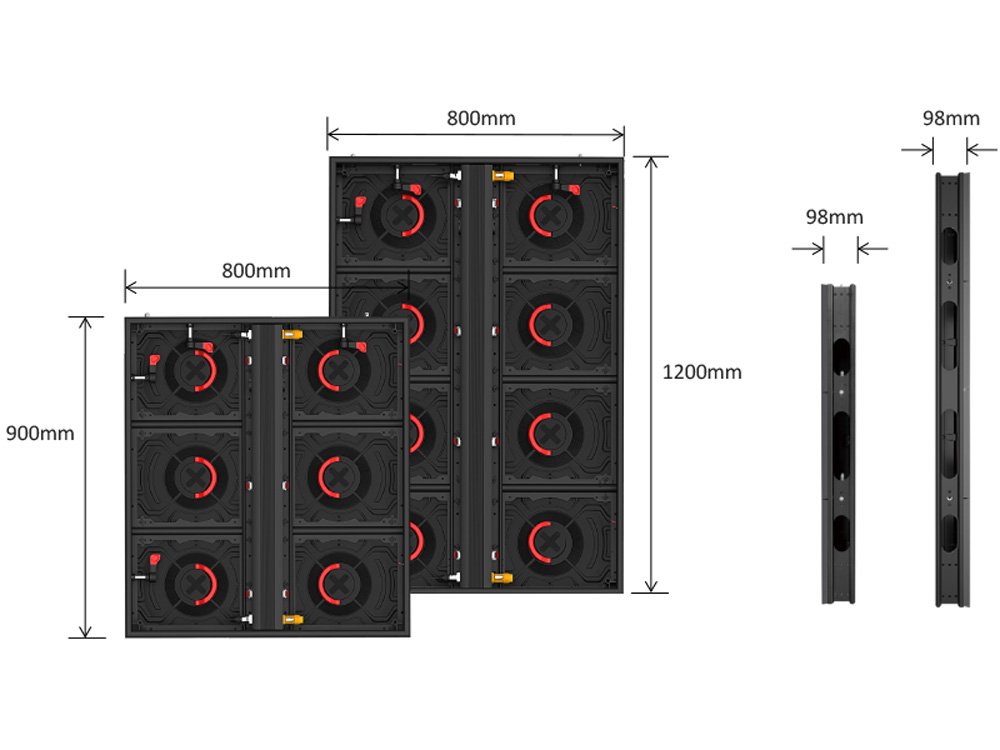

| Panel size (W x H x D/mm) | 800 x 900 / 800 x 1200 | |||||
| Panel resolution | 256 x 288 256 x 384 | 192 x 216 192 x 288 | 160 x 180 160 x 240 | 128 x 144 128 x 192 | 96 x 108 96 x 44 | 80 x 90 80 x 120 |
| Module QTY (W x H) | 2 x 3 / 2 x 4 | |||||
| Weight (kg) | 17.5 / 22.5 | |||||

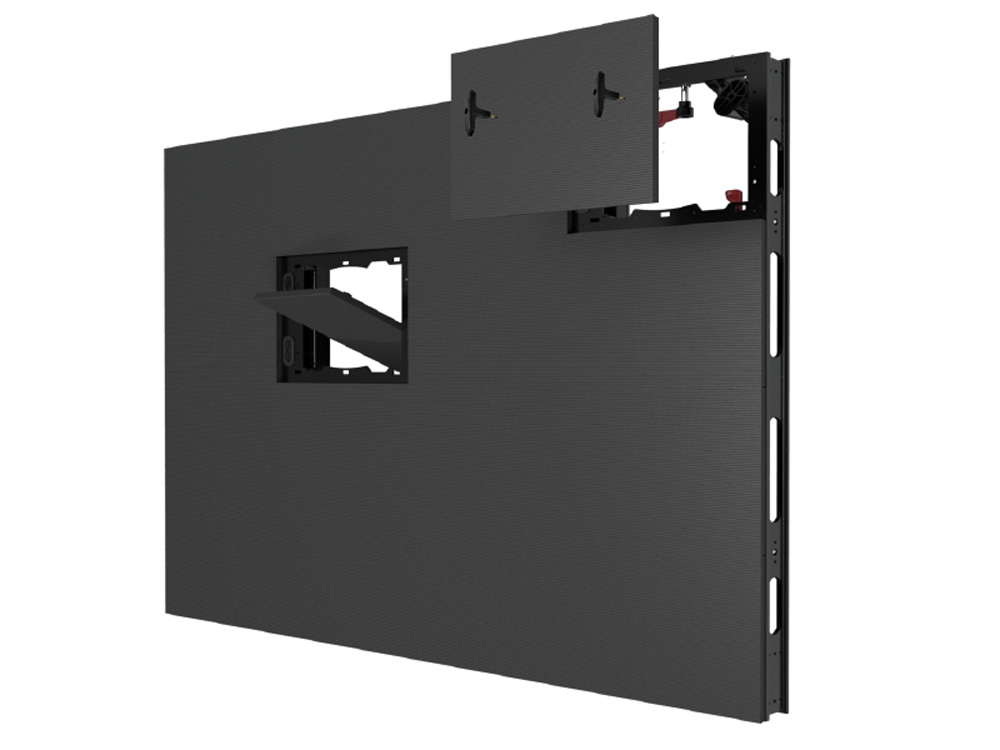

| Maintenance mode | Front & Rear | |||||
| Cabinet material | Aluminum Box | |||||
| Drive mode | 1/16 scan | 1/6 scan | 1/6 scan | 1/6 scan | 1/3 scan | 1/3 scan |
| Brightness (Nits) | 5500 | 6500 | 6500 | 6500 | 6500 | 6500 |
| Color temperature | 5000 - 12000 Optional | |||||
| Viewing angle (V/H) | 140°/160° | |||||
| Contrast ratio | 10000:1 | |||||
| Frame Rate | 50 / 60 | |||||
| Grey Level | 16 Bit | |||||
| Refresh rate (Hz) | 3840 | |||||
| Max. power consumption | 780w/sqm | |||||
| Avg. power consumption | 200-300w/sqm | |||||

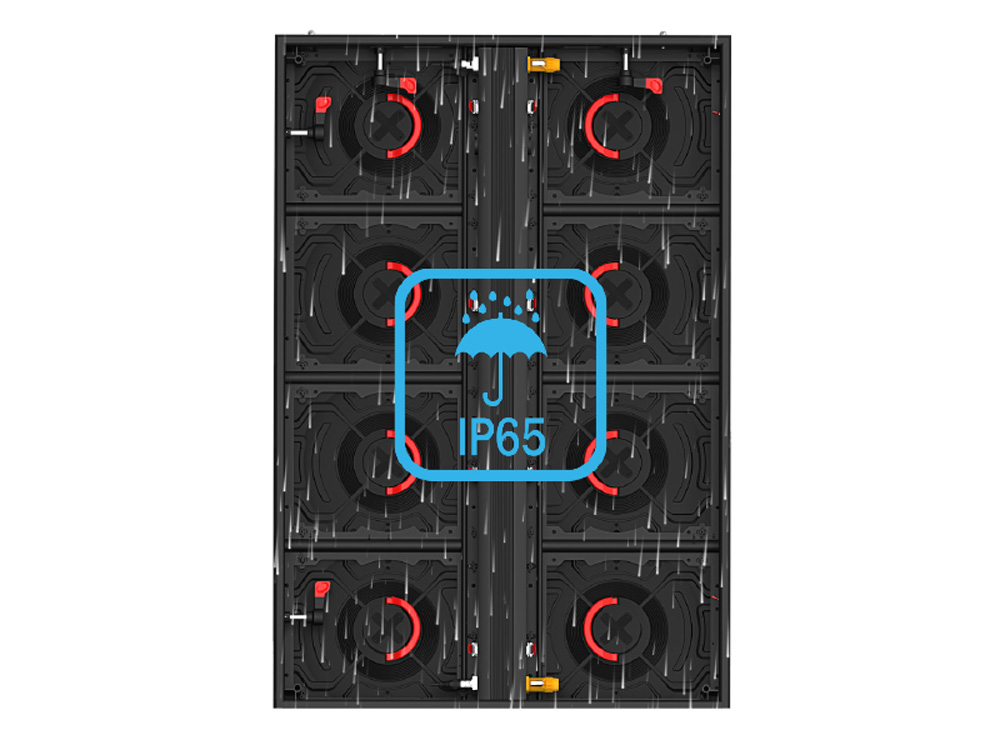

| Protection grade | IP 65 | |||||
| Input Power | AC90-264V, 47-63Hz | |||||
| Working Temp/Humidity | -20~60℃ / 10%~85% | |||||
| Storage Temp/Humidity | -20~60℃ / 10%~85% | |||||
| Cert. | CCC / CE / RoHS / FCC / CB / TUV / BIS | |||||
