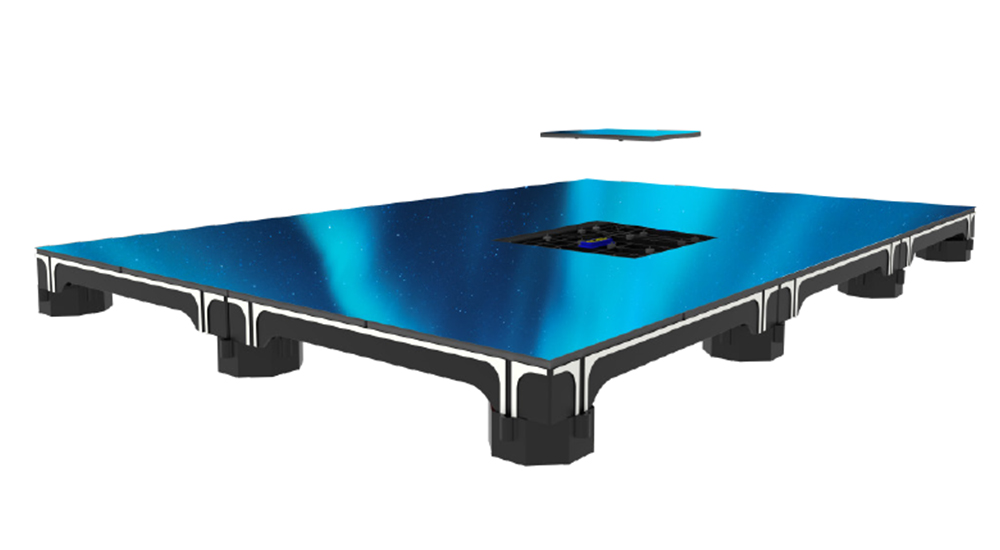

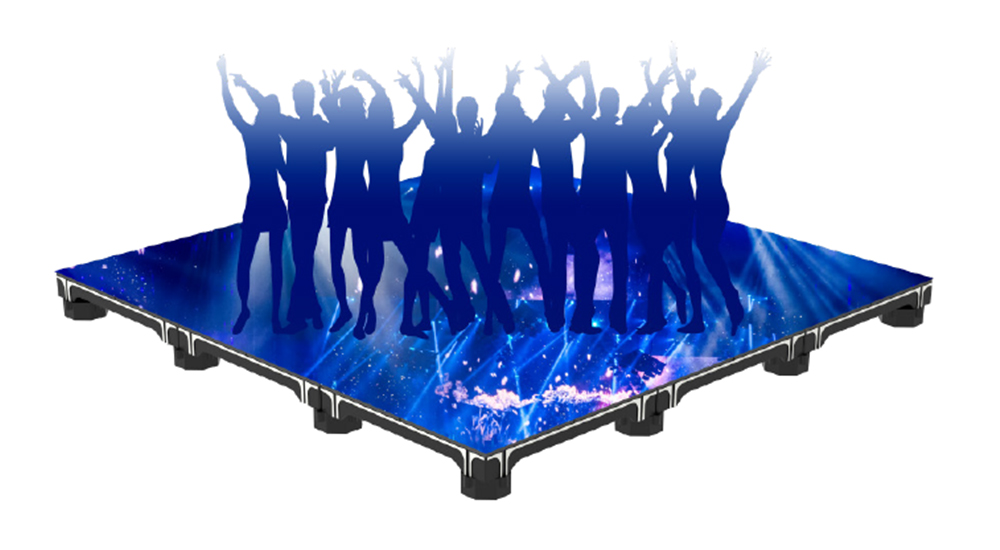

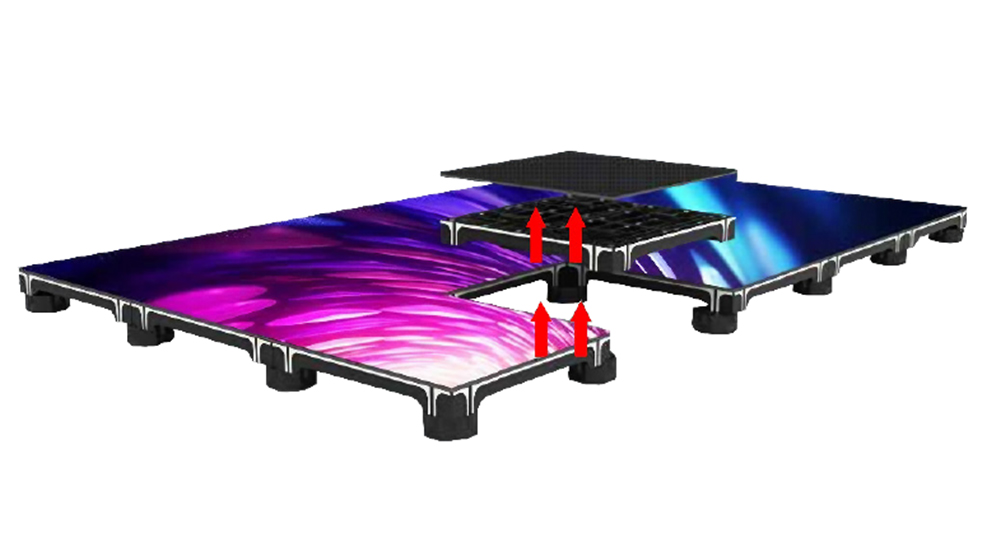

RoleHeller LED Dance Floor combines sensitive interactive sensing with 2000kg/m² load capacity. Featuring GOB protection, seamless splicing, and magnetic front maintenance, it delivers immersive visual experiences with high durability. Perfect for clubs, stages, and public installations demanding both strength and interactivity.
| Pixel Pitch | P1.56 | P1.9 | P2.5 | P2.604 | P2.976 | P3.91 |
| LED Type | MIP0606 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Pixel Density(dot/m²) | 409600 | 262144 | 160000 | 147456 | 112896 | 65536 |
| Module Resolution | 160 x 160 | 128 x 128 | 100 x 100 | 96 x 96 | 84 x 84 | 64 x 64 |
| Module Size (WxH) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Cabinet Size (mm) | 500 x 500 x 92 | |||||
| Cabinet Resolution | 320 x 320 | 256 x 256 | 200 x 200 | 192 x 192 | 168 x 168 | 128 x 128 |
| Module Qty. | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Weight (kg) | 10.8 | 10.8 | 10.8 | 10.8 | 10.8 | 10.8 |
| Maintenance | Front Maintenance | |||||
| Cabinet Material | Die-cast Aluminum | |||||
| Color Temp. (K) | 5000-12000 Optional | |||||
| Viewing Angle | 160° / 160° | |||||
| Brightness (Nits) | ≥800 | ≥800 | ≥800 | ≥800 | ≥800 | ≥800 |
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Frame Rate | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Drive Mode | 1 / 32 scan | 1 / 32 scan | 1 / 20 scan | 1 / 16 scan | 1 / 14 scan | 1 / 16 scan |
| Grey Scale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Max Power Com. | 800w / m² | |||||
| Ave Power Com. | 200-300w / m² | |||||
| Protection Grade | IP 31 | |||||
| Power Input | AC90-264V, 47-63Hz | |||||
| Working T/H(℃/RH) | -20~60℃ / 10%~85% | |||||
| Storage T/H(℃/RH) | -20~60℃ / 10%~85% | |||||
| Cert. | CCC / CE / RoHS / FCC / CB / TUV / IEC | |||||
