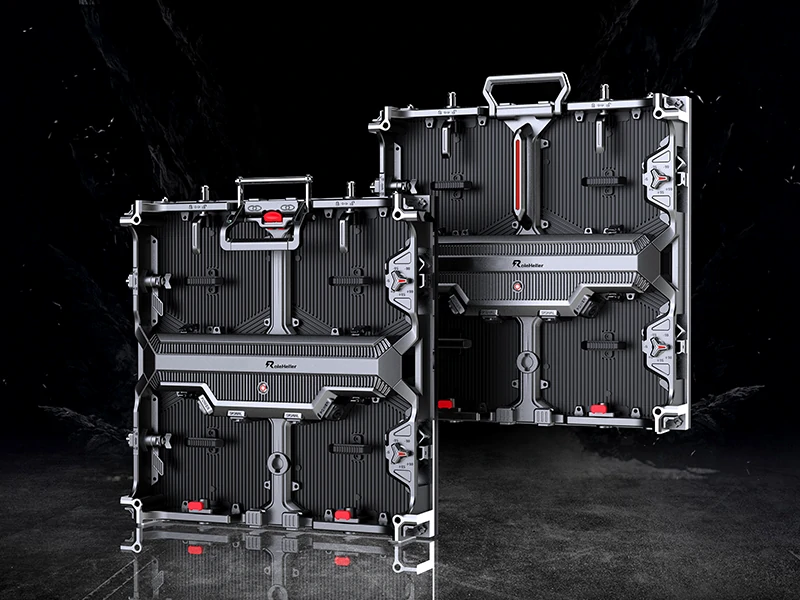

1. Horizontal power supply layout for easy heat dissipation and maintenance, safe, stable, and reliable.
2. High refresh rate for smooth, stable images without ghosting, flickering, or ripples, ensuring crisp details.

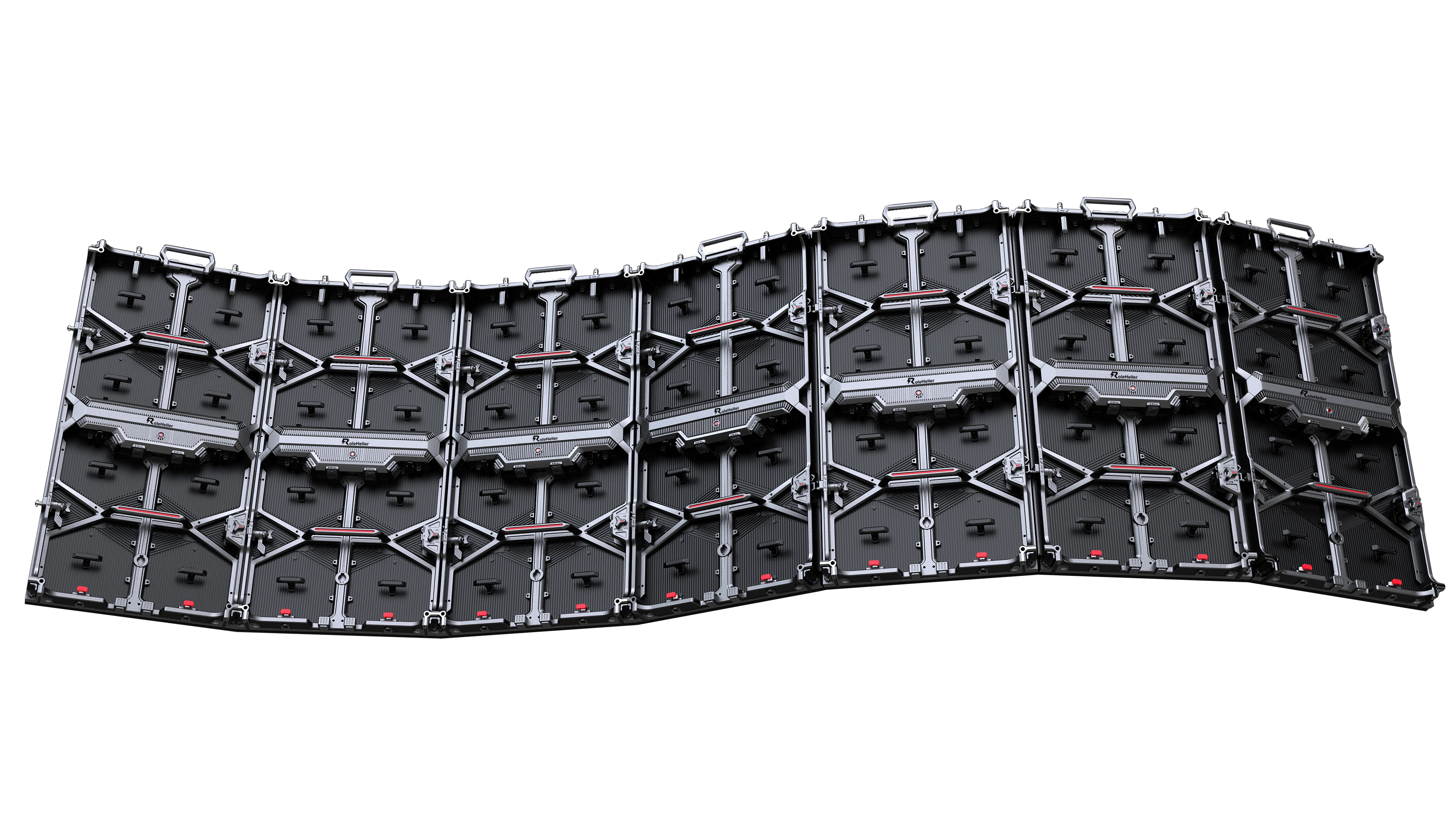

3. Arc lock supports circular, U-shaped, and inner and outer arc configurations for high-quality display.
4. Seamless splicing for a flat screen, allowing for two sizes of cabinets to be mixed and offset.
5. High grayscale performance, natural color transition and layered feeling, and vivid light and dark details;
6. IP65-rated waterproof and dustproof, ensuring accurate and stable information transmission.
Applicable scenarios: large shopping malls, event venues, company showrooms/conference rooms, transportation hubs, and stadiums.
P1.25/P1.5625 / P1.95 / P2.5 / P2.604 / P2.976 / P3.91
It can meet the demands of the mainstream market.

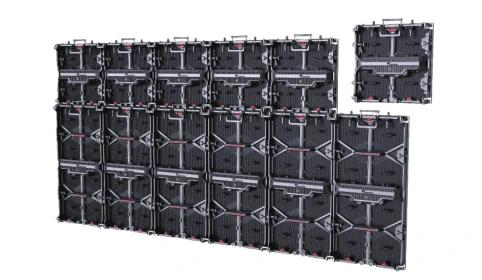

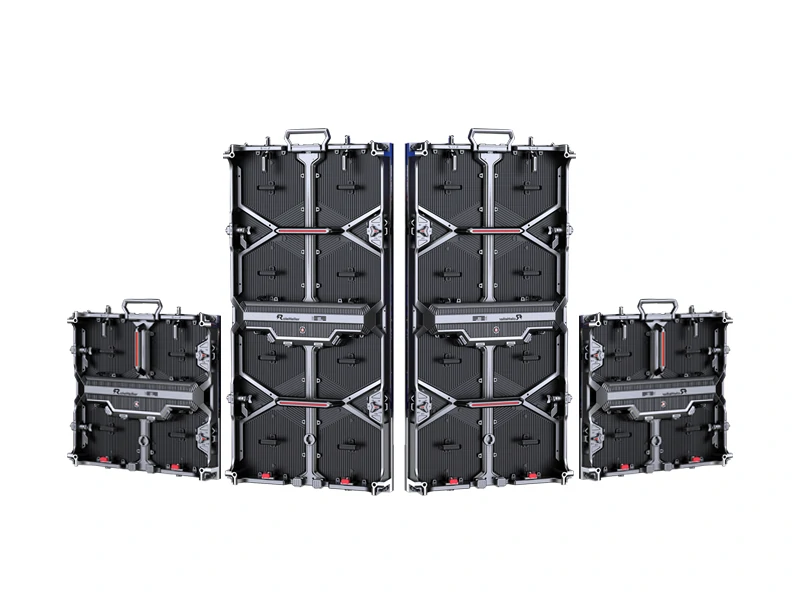

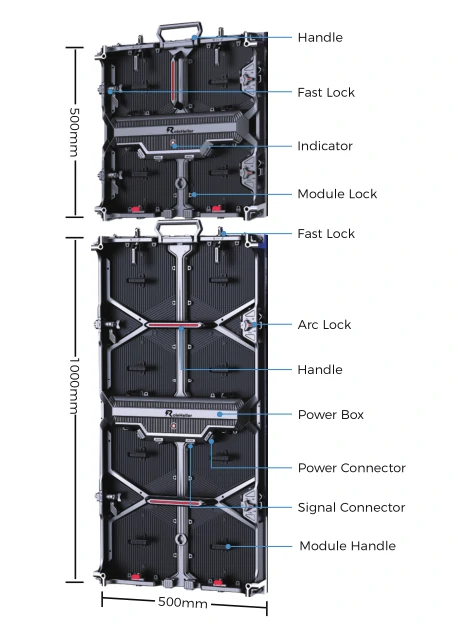

The 500x500mm box can be sasily assembled vertically with the 500x1000mm box,
Greatly meets the construction needs of different areas.

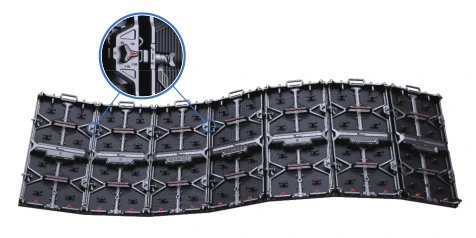

Innovative half-Arc lock Design, compatible with straight and arc confi gurations.
Adjustable angle: -5° / -2.5° / 0° / +2.5° / +5°
| Pixel Pitch | P1.56 | P1.95 | P2.5 | P2.604 | P2.976 | P3.91 |
| LED Type | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Pixel Density(dot/m²) | 409600 | 262144 | 160000 | 147456 | 112896 | 65536 |
| Module Resolution | 160 x 160 | 128 x 128 | 100 x 100 | 96 x 96 | 84 x 84 | 64 x 64 |
| Module Size (WxH) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Cabinet Size (mm) | 500 x 500 | 500 x 500 / 500 x 1000 | ||||
| Cabinet Resolution | 320 x 320 | 256 x 256 | 200 x 200 | 192 x 192 | 168 x 168 168 x 336 | 128 x 128 128 x 256 |
| Module Qty. | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 / 2 x 4 | 2 x 2 / 2 x 4 |
| Weight (kg) | 8 | 8 | 8 | 8 | 8/14.5 | 8/14.5 |
| Maintenance | Front / Rear Maintenance | |||||
| Cabinet Material | Die-cast Aluminum | |||||
| Color Temp. (K) | 5000-12000 Optional | |||||
| Viewing Angle | 160° / 160° | |||||
| Brightness (Nits) | ≥600 | ≥600 | ≥800 | ≥800 | ≥1000 | ≥1000 |
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Frame Rate | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Drive Mode | 1 / 40 scan | 1 / 32 scan | 1 / 25 scan | 1 / 32 scan | 1 / 28 scan | 1 / 16 scan |
| Grey Scale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Max Power Com. | 800w / m² | |||||
| Ave Power Com. | 200-300w / m² | |||||
| Protection Grade | IP 31 | |||||
| Power Input | AC90-264V, 47-63Hz | |||||
| Working T/H(℃/RH) | -20~60℃ / 10%~85% | |||||
| Storage T/H(℃/RH) | -20~60℃ / 10%~85% | |||||
| Cert. | CCC / CE / RoHS / FCC / CB / TUV / IEC | |||||
