1. Transparent, borderless display, easily connectable;
2. Slim and lightweight design for easy transportation and loading and unloading;
3. Modular design for quick and seamless assembly and disassembly;
4. Choose from three installation options: ceiling, wall, or floor-standing.
5. High refresh rate for smoother and more stable playback;
Applications: Commercial spaces, sightseeing elevators, brand stores, airports, high-speed rail stations, science and technology museums, and glass curtain walls/windows.
P1.25 / P1.5625 / P1.95 / P2.5 / P2.604 / P2.976 / P3.91
One Frame, Infi nite Switch!

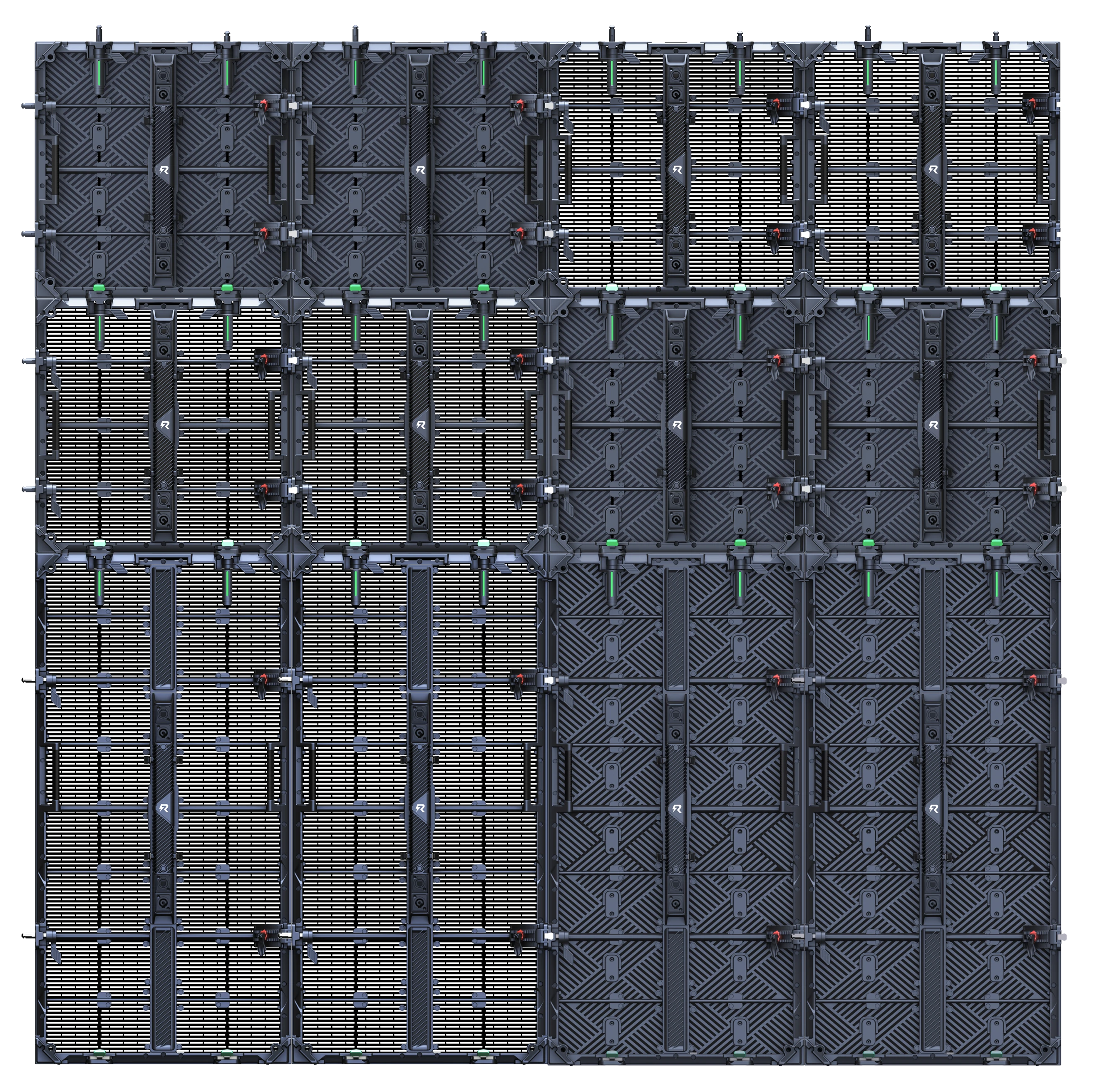

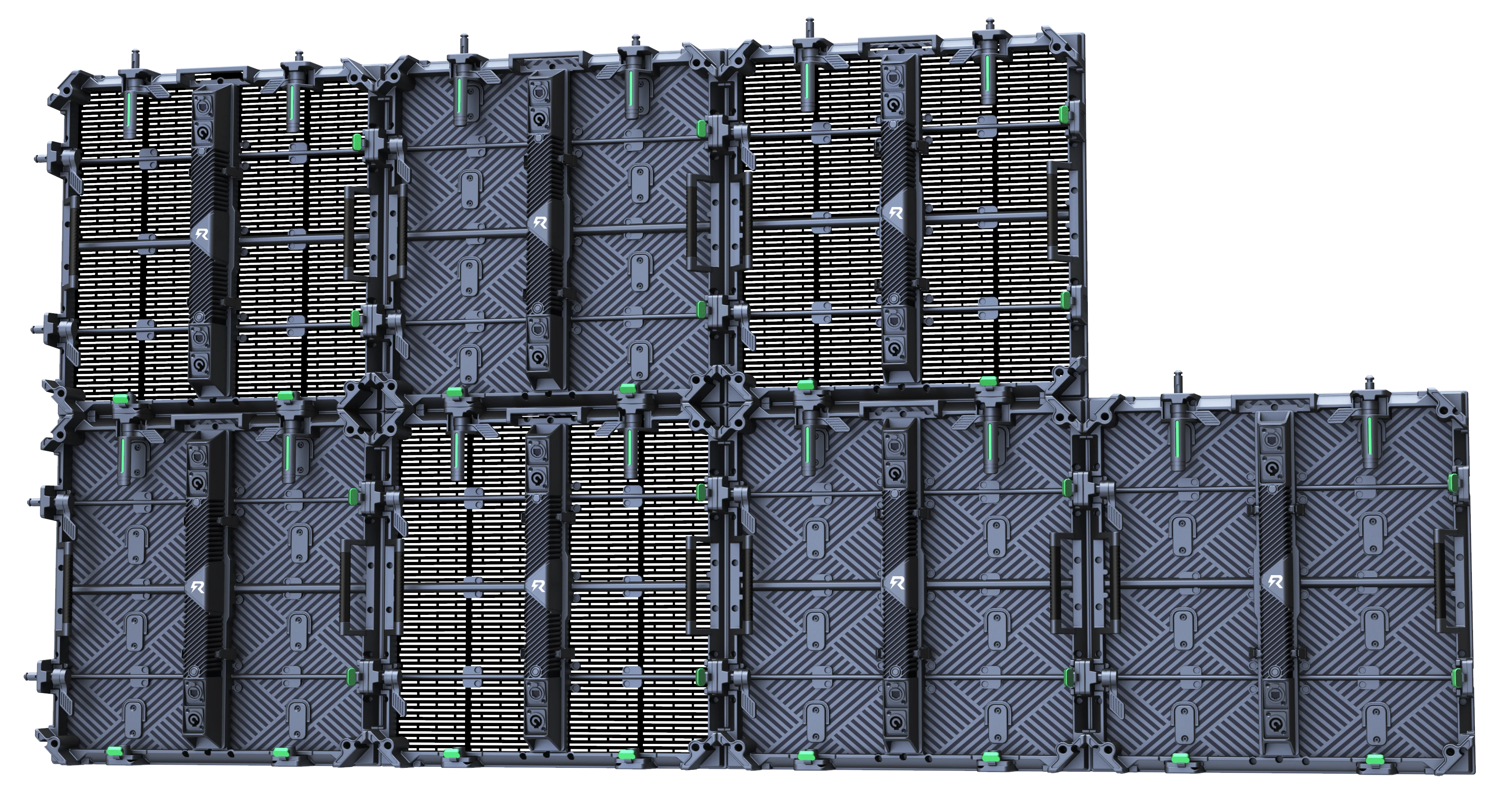

One Frame, Free Splice, Infi nite Clarity!

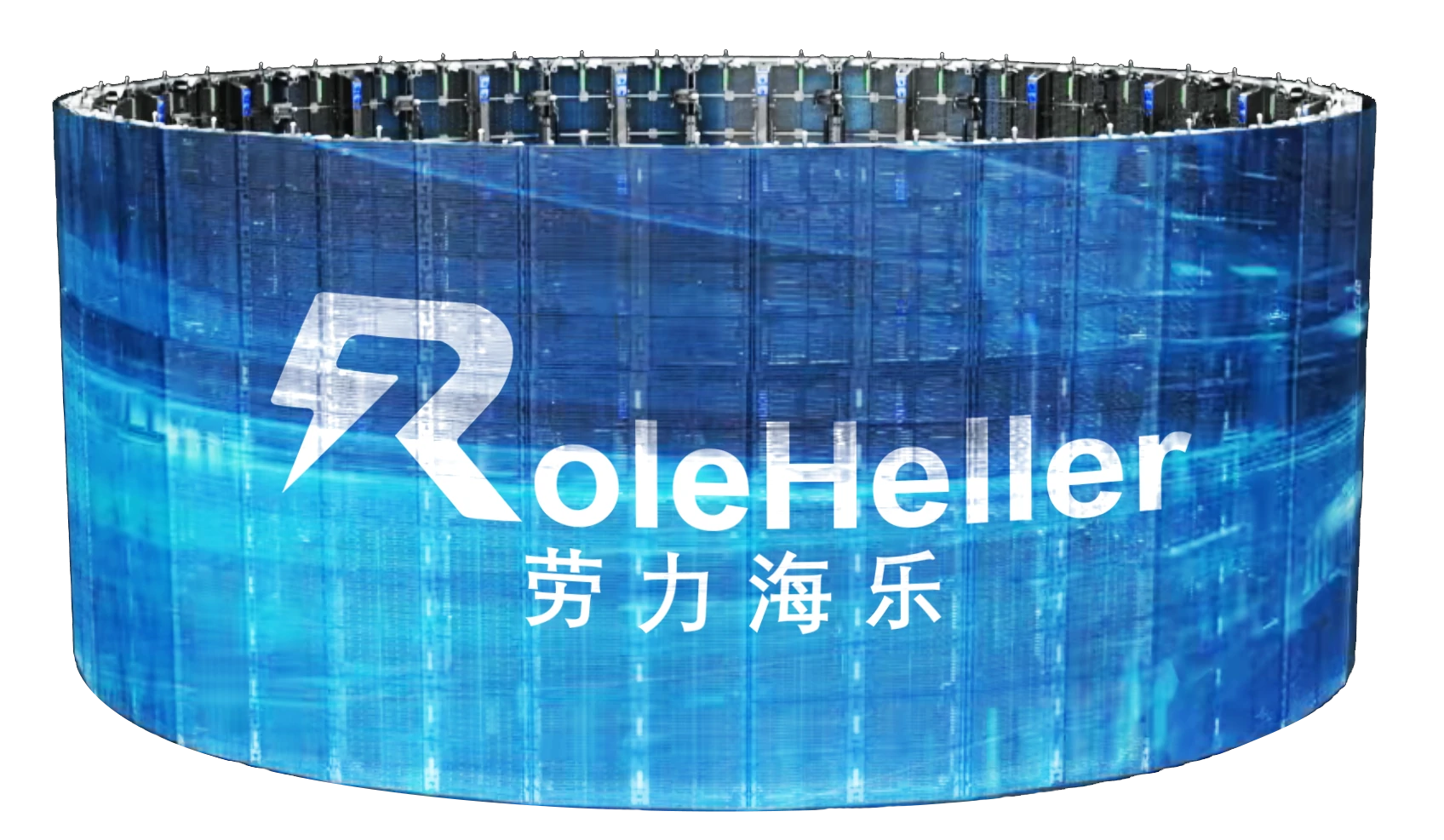

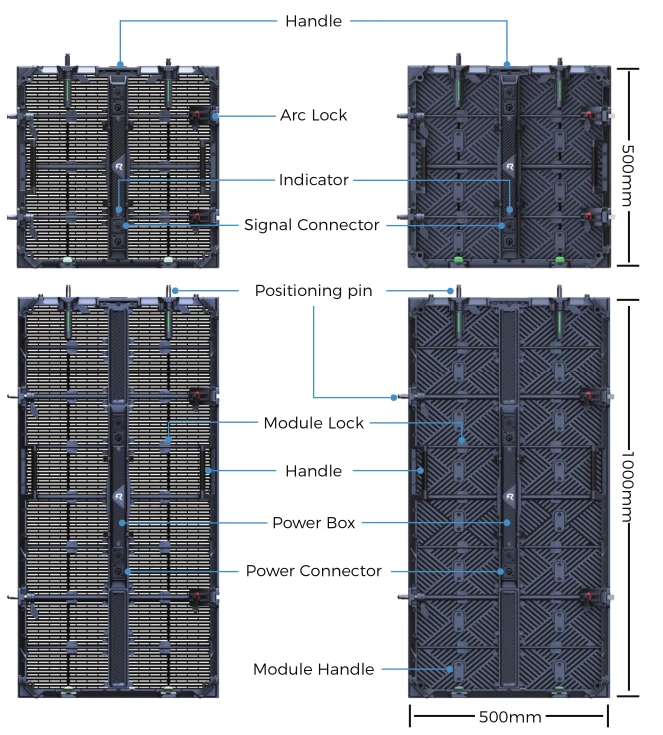

Innovative half-Arc lock Design, compatible with straight and arc confi gurations.
Adjustable angle: -5° / -2.5° / 0° / +2.5° / +5°
| indoor | outdoor | ||
|---|---|---|---|
| Pixel Pitch (H/V) | P2.5 - 5.0 | P3.91 - 7.82 | P3.91 - 7.82 |
| LED Type | SMD1415 / 1515 | SMD1921 / 2020 | SMD1921 |
| Pixel Density (dot/m²) | 80000 | 32768 | 32768 |
| Cabinet size (mm) | 1000 x 500 | 1000 x 500 | 1000 x 500 |
| Drive mode | 16 - 32 | 16-Aug | 16-Aug |
| Brightness (cd/m²) | 1500 - 2500 | 1500 - 2500 | ≥5000 |
| Transparency | 70% - 85% | 70% - 85% | 70% - 85% |
| Refresh rate (Hz) | 3840 | 3840 | 3840 |
| Brightness adjustment | Level 256 | Level 256 | Level 256 |
| Viewing angle (V/H) | 160° / 160° | 160° / 160° | 160° / 160° |
| Best Viewing Distance | 3m - 50m | 4m - 50m | 4m - 50m |
| Protection Grade | IP 31 | IP 31 | IP 65 |
| Power Input | AC90-264V, 47-63Hz | ||
| Working T/H(℃/RH) | -20~60℃ / 10%~85% | ||
| Storage T/H(℃/RH) | -20~60℃ / 10%~85% | ||
| Cert. | CCC / CE / RoHS / FCC / CB / TUV / IEC | ||
